We deliver a high performance haptic feedback user experience
Haptic feedback is where your product communicates with the user, via their sense of touch.
There are many haptic feedback technologies, and almost as many ‘technology startups’ promoting them. Some of these do offer effective and unique touch feedback experiences, but many are either too expensive or work only in a handful of niche use-cases.
Our focus is on haptic feedback that works reliably and cost effectively in real-world applications.
To do that, we use a mature and proven combination of:
- Applied experience
- Vibration actuators
- Touch surface suspension
- Advanced programmable haptic controllers
Learn more about using haptics in your application.
WHAT DO YOU NEED
Haptic feedback or vibration alerting?
Adding haptics to a device can be quite challenging, even with expert help. Before you embark on that journey, consider whether haptic feedback is really what you need. Perhaps it’s simpler implementation, vibration alerting is more than good enough?
Haptic feedback is a tactile user interface
Haptic feedback uses very controlled vibration or actuated movement, to provide touch feedback or information to a user. It is a tactile user interface and enables a device to speak the ‘language’ of haptics, adding complexity.
The most obvious implementation of this is a touch screen, where haptic feedback takes the form of simulating the feeling of pressing a button.
A more complex example would be a glove with many haptic actuators on it to support training of a surgeon in a virtual reality environment.
Vibration alerting is a tactile alarm
Vibration alerting is a lot simpler. It’s a binary on / off signal to a user to grab their attention.

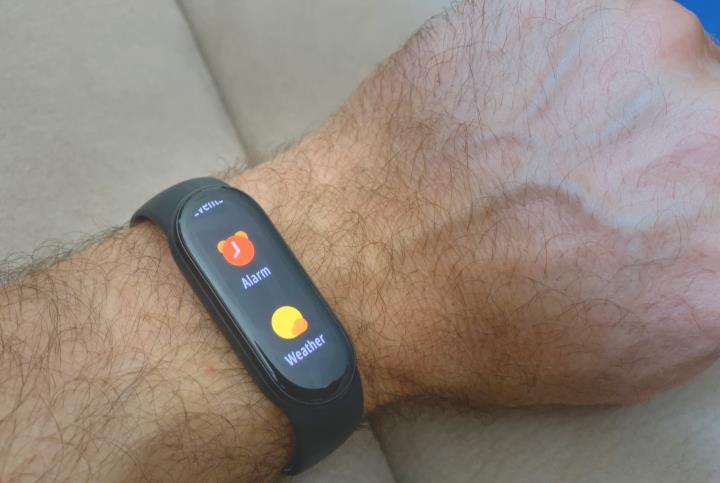

Think of an incoming phone call, vibration on a steering wheel to alert the driver that they have veered across a lane marking, or a vibrating crane control stick to signal that the attached load is too heavy.
Vibration alerting can also be quite elaborate – think of a belt with 12 integrated vibration motors to direct the wearer where to go. Most people call this haptics, but it’s actually just vibration alerting.
Why the big deal with semantics? Well in a nutshell, if you’re vibration alerting the project is going to be much simpler and cheaper.
The components of haptic feedback
The hotspot explainer below uses our haptic feedback kit to illustrate the main components that make up a typical haptic feedback solution.

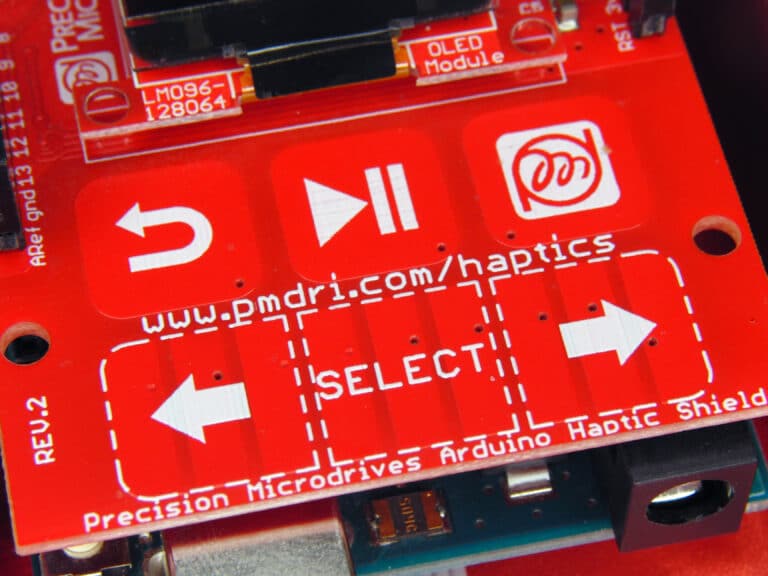

These are a sensors or touch surface that you touch. A touch surface microchip registers the touch and it’s location. The touch registration is sent directly (as quickly as possible) to the haptic driver, along with relevant information, such as which area in the touch space was pressed.

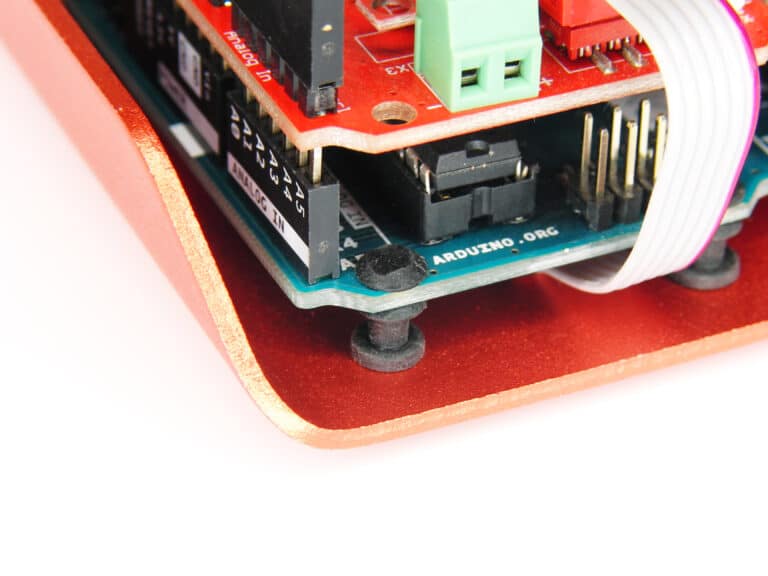

If you attach a vibration motor or haptic actuator to a rigid body, most of its energy will spread away from the touch surface. Suspension exists to isolate the touch area from the rest of the device or application, and keep the haptic feedback energy solely on the touch surface.

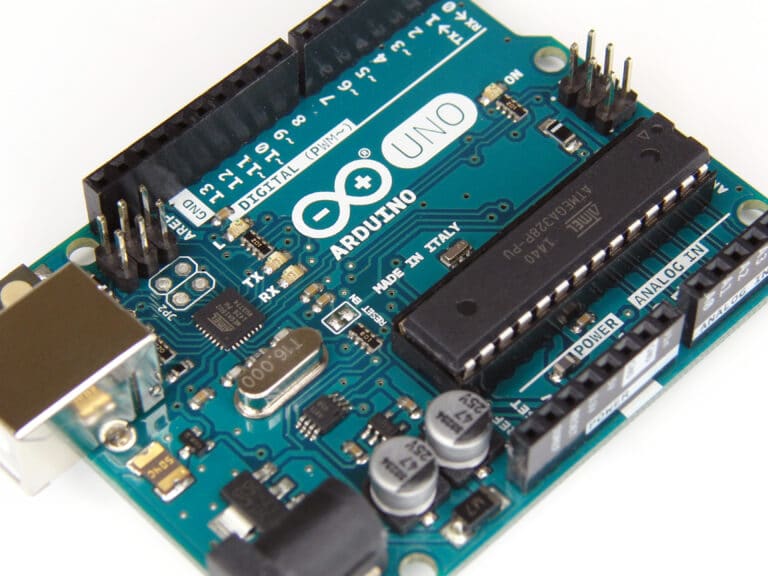

Application host processor
The application host processor, in our example an Arduino Uno, takes signals from the touch sensor, processes them and then causes the device to react as it’s supposed to do.
What it’s not supposed to do is get in between the touch sensor and the haptic driver. We want the signal from the touch sensor that someone has pressed the touch surface, to be transmitted to the haptic driver as quickly as possible.

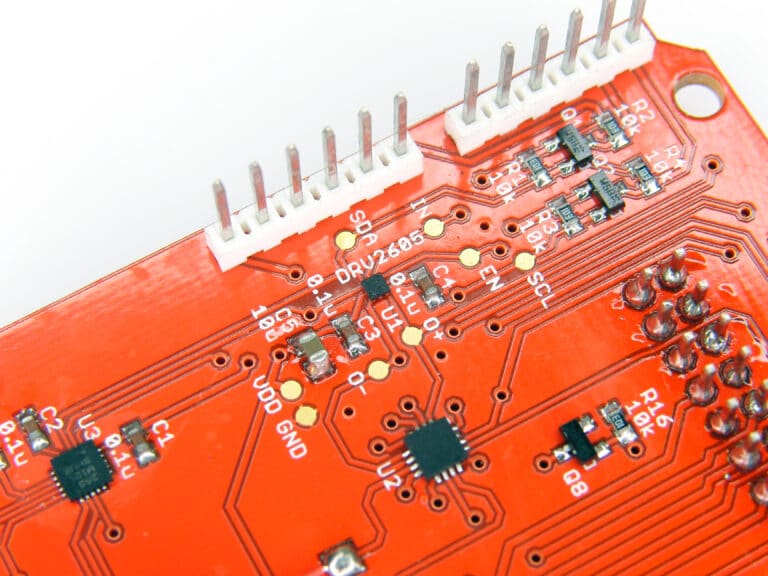

The haptic driver receives a signal from (ideally) the touch sensor and begins to drive the vibration actuators / motors. The signal from the touch sensor should instruct the haptic driver which haptic effect it should ‘play’ through the actuators.
The actuators will then be driven with a range of signals to accelerate / decelerate them to create the impulse that the user will feel.

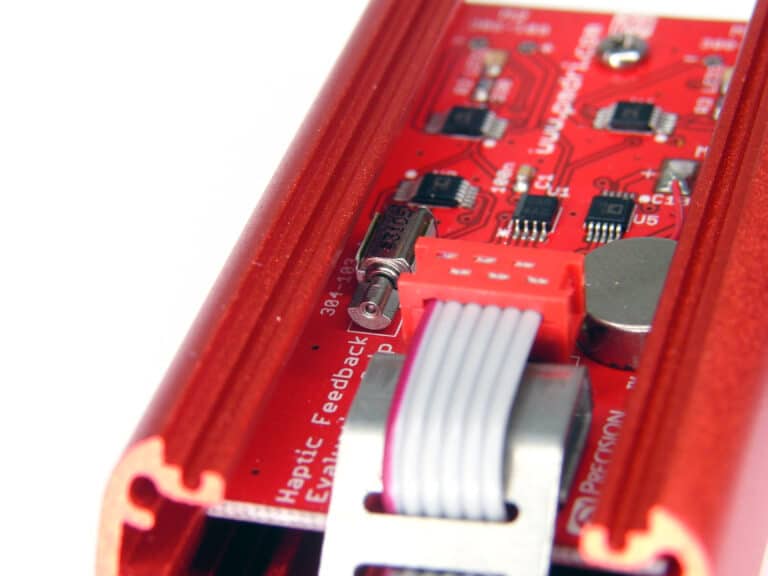

The vibration actuators / motors are the components that turn the electrical signals into the vibration / mechanical impulses that the user feels.
Typically they can be ERM, LRA or solenoid type motors.
Click on the blue hot-spots, left, to learn more…

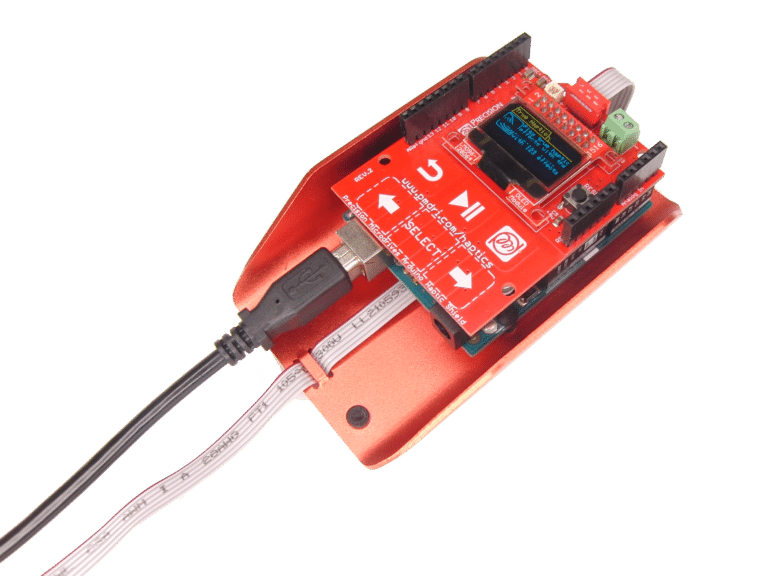

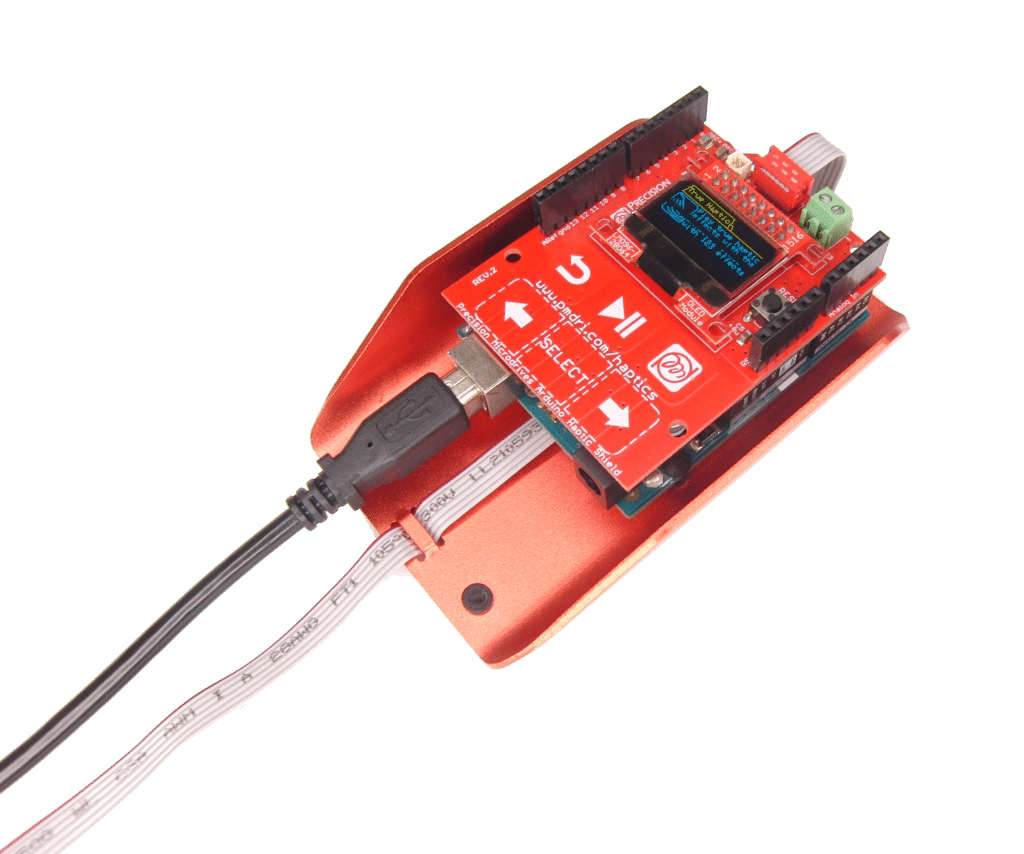

This is the Precision Microdrives haptic feedback evaluation kit. It’s a simple device that illustrates the main components and design considerations, that make up a typical haptics application.
Add haptics to your application
We know, how tempting it is to buy a few vibration motors and a DRV2605 – it’s quick and easy, and it will work more often than not. But to add high quality haptic feedback, that’s audibly quiet, and works consistently in the application requires a bit more investment.
Excellent haptics comes from combining the right actuators, the right suspension, a tuneable driver, and good deal of experience in how to bring it all together in such a way that it can be consistently manufactured.
We can support you through the whole journey from prototype to high volume cost-effective mass production:
Designing motors and mechanisms for a wide range of industrial, medical, and consumer applications.
Our manufacturing lines are flexible. We support high volume and high value-add builds.
In house designed dynameters are used to validate every sample and production batch made.
Delivering industry leading consistency & support through your product life-cycle.
Delivering your parts, on time and to your exact specification.
ISO 9001:2015 Motor designer and manufacturer of vibration motors, DC motors, gearmotors and custom mechanisms.
