Brushless motors
A wide range of high-quality, and cost-effective, sub-Ø60 mm brushless DC motors, with optional gearboxes and encoders.
We offer a comprehensive range of DC brushless motors in both slotted and slotless (high torque and negligible cogging) designs, with matching gearboxes, commutation sensors, and encoders. Motors feature high density windings, neodymium alloy magnets, aluminium enclosures, and preloaded ball bearings. We design matching driver and controller solutions to application requirements, and offer simulated application validation and lifetime testing services.
We design and manufacture DC brushless motors:
- Frame diameters from Ø12mm to Ø35mm,
- Slotless ‘in-runner’ and slotted ‘out-runner’ designs,
- Winding voltages from 6v to 36v, with 12v windings available off-the-shelf for sampling,
- A range matching planetary gearboxes with ratios from 1:4 to 1:3372,
- A range of matching encoders providing ABN, and UWV outputs,
- Integrated digital hall sensors on frame diameters above Ø16mm,
We also design and manufacture quick turnaround mechanisms using brushless motors:
- Slider tables,
- Ball screw and belt drive positioners,
- Levers, cams and other slider arrangements,
- Complex mechanisms: Fully bespoke ground-up designs for complex applications,
Contact our application engineering team to discuss your project [email protected], or use the contact form below.
Browse Brushless DC Motors
Export Data| Product Image | Product name | Diameter (mm) | Length (mm) | Voltage (V) | No-load Current (A) | No-load Speed (rpm) | Stall Torque (mNm) | Stall Current (A) | Nominal Torque (mNm) | Nominal Speed (rpm) | Nominal Current (A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
712-202
Download Datasheet |
12 | 30 | 9 | 0.15 | 24780 | 16.89 | 5.03 | 3.05 | 20170 | 0.91 | Enquire |
|
712-201
Download Datasheet |
12 | 20 | 6 | 0.23 | 26870 | 4.35 | 2.17 | 1.60 | 18160 | 0.81 | Request a sample |
|
|
712-301
Download Datasheet |
12 | 20 | 9 | 0.16 | 35950 | 7.05 | 3.10 | 1.50 | 27937 | 0.66 | Enquire |
|
|
712-401
Download Datasheet |
12 | 30 | 12 | 0.11 | 24675 | 17.02 | 3.77 | 3.13 | 3.13 | 0.70 | Request a sample |
|
|
712-300
Download Datasheet |
12 | 30 | 9 | 0.15 | 24780 | 16.89 | 5.03 | 3.05 | 20170 | 0.91 | Enquire |
|
716-402
Download Datasheet |
16 | 30 | 12 | 0.17 | 21210 | 21.15 | 4.07 | 4.80 | 16320 | 0.92 | Request a sample |
|
|
716-600
Download Datasheet |
16 | 30 | 18 | 0.15 | 23520 | 21.60 | 3.10 | 3.85 | 19120 | 0.55 | Enquire |
|
716-403
Download Datasheet |
16 | 36 | 12 | 0.17 | 14080 | 30.19 | 3.87 | 8.56 | 10020 | 1.10 | Request a sample |
|
|
716-201
Download Datasheet |
16 | 36 | 6 | 0.24 | 13690 | 34.89 | 8.57 | 9.95 | 9670 | 2.44 | Enquire |
|
|
716-802
Download Datasheet |
16 | 36 | 24 | 0.09 | 14390 | 34.00 | 2.22 | 8.71 | 10530 | 0.57 | Enquire |
Filter products
Sample request
We aim to get you up and prototyping as quickly as possible. We stock off-the-shelf samples for each motor size, to support commercial development.

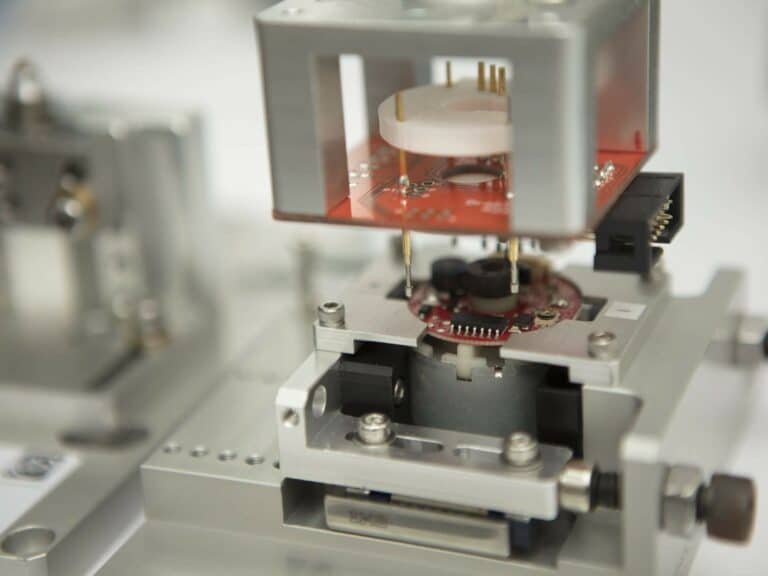

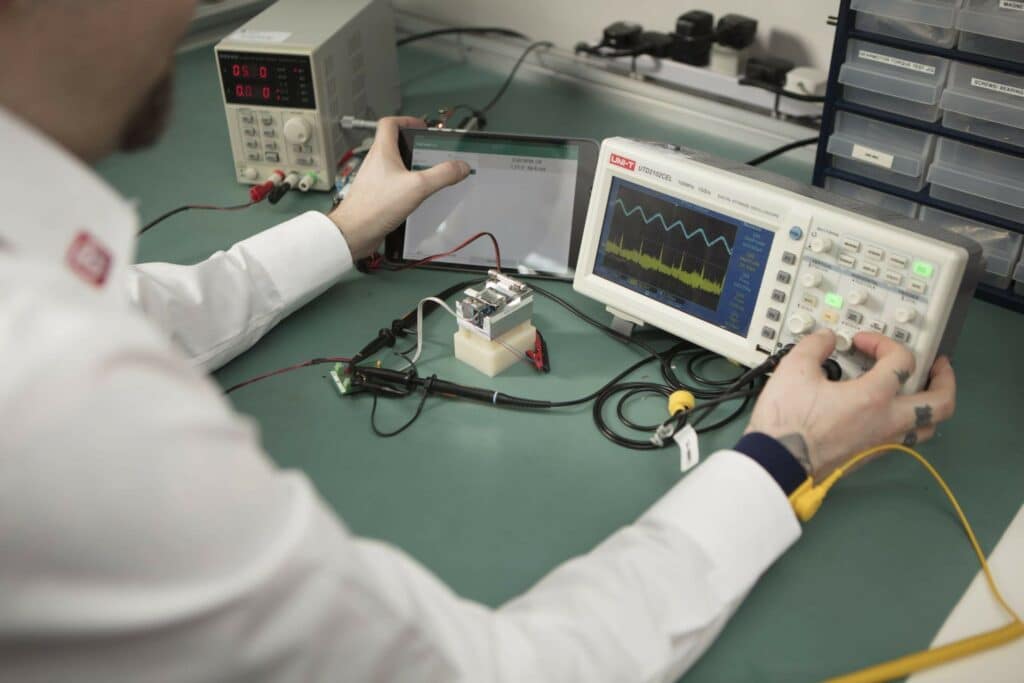

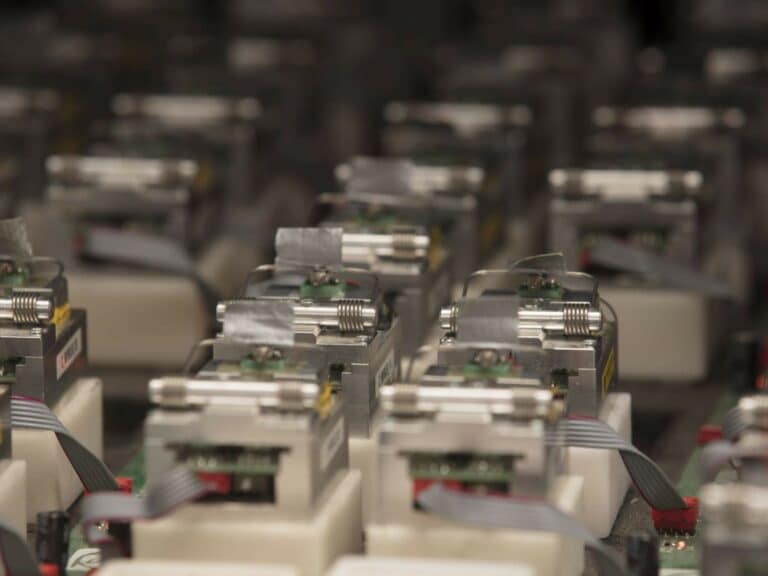

Our application engineers can advise on motor design and selection, mechanism design, and support the development of high performance motor drivers. They can also assist to validate the in-application performance and longevity suitability of a down-selected motor or mechanism design.
Contact our application engineering team to discuss your project, using the form, or email [email protected].
