716-600
Slotless (inrunner) Ø12 x 20mm / with dual shafts / sensored
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the button right and complete our volume quotation form. We will respond within 1 business day..

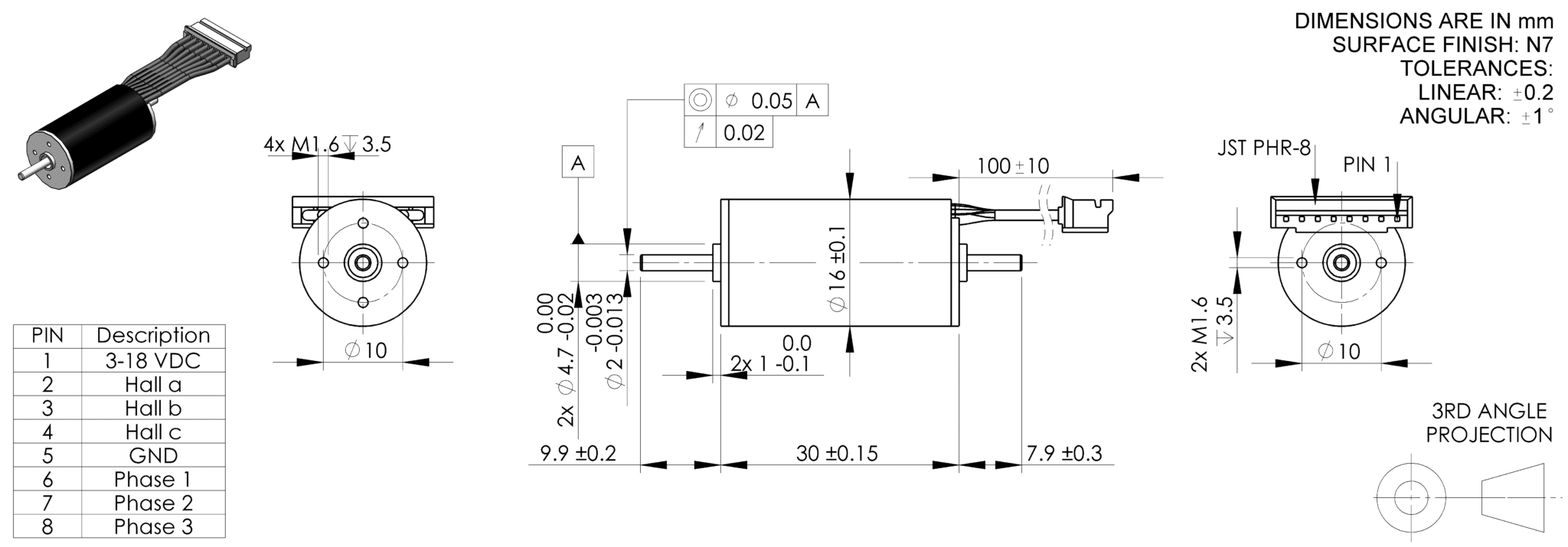

Drawing
Key Features
| Model No. | 716-600 | ||
| Motor Type | Inrunner [Slotless] | ||
| Diameter | mm | 16 | |
| Length | mm | 30 | |
| Voltage | V | 18 | |
| No-load Current | A | 0.15 | |
| No-load Speed | rpm | 23520 | |
| Stall Torque | mNm | 21.60 | |
| Stall Current | A | 3.10 | |
| Nominal Torque | mNm | 3.85 | |
| Nominal Speed | rpm | 19120 | |
| Nominal Current | A | 0.55 | |
| Sensor Commutation | Sensor |
Performance characteristics
| Nominal voltage | V | 18 | |
| No load speed | rpm | 23 520 | |
| No load current | A | 0.15 | |
| Nominal speed | rpm | 19 120 | |
| Nominal torque | mNm | 3.85 | |
| Nominal current | A | 0.55 | |
| Stall torque | mNm | 21.60 | |
| Stall current | A | 3.10 | |
| Maximum efficiency | % | 70.30 |
Design and accessories
| Availability | 8 weeks | ||
| Motor Type | Brushless | ||
| Commutation | Sensored / sensorless | ||
| Shafts | Dual | ||
| Encoder | Not fitted | ||
| Gearbox | Not fitted | ||
| Connections | 8-pinned JST PHR-8 | ||
| Cable | 100mm x AWG26 | ||
| Housing Material | Aluminium alloy | ||
| Body diameter | mm | 16 | |
| Body length | mm | 30 | |
| Weight | g | 25.0 |
Motor body characteristics
| Thermal resistance housing-ambient | °C/W | 20.0 | |
| Thermal resistance winding-housing | °C/W | 8.8 | |
| Thermal resistance winding-housing | s | 8 | |
| Thermal time constant motor | s | 236 | |
| Ambient temperature | min | °C | -30 |
| max | °C | +100 | |
| Max. permissable winding temperature | °C | +150 | |
| Max. permissable rotor speed | rpm | 30 000 | |
| Axial play at axial load | < 0.8N | mm | 0.0 |
| < 0.8N | mm | 0.3 max | |
| Radial play | Preloaded | ||
| Max. axial load (dynamic) | N | 1.3 | |
| Max. force for press fits (static) | N | 15.0 | |
| with shaft supported | N | 350.0 | |
| Max. radial loading (5mm from flange) | N | 5.0 | |
| Number of pole pairs | 1 | ||
| Number of winding phases | 3 |
Winding specific characteristics
| Terminal resistance | Ω | 5.80 | |
| Terminal inductance | mH | 0.20 | |
| Torque constant (Kt) | mNm/A | 7.00 | |
| Speed constant (Kv) | rpm/V | 1 373 | |
| Speed / torque gradient | rpm/mNm | 1 144 | |
| Mechanical time constant | ms | 5.7 | |
| Rotor inertia | mNm² | 0.048 |

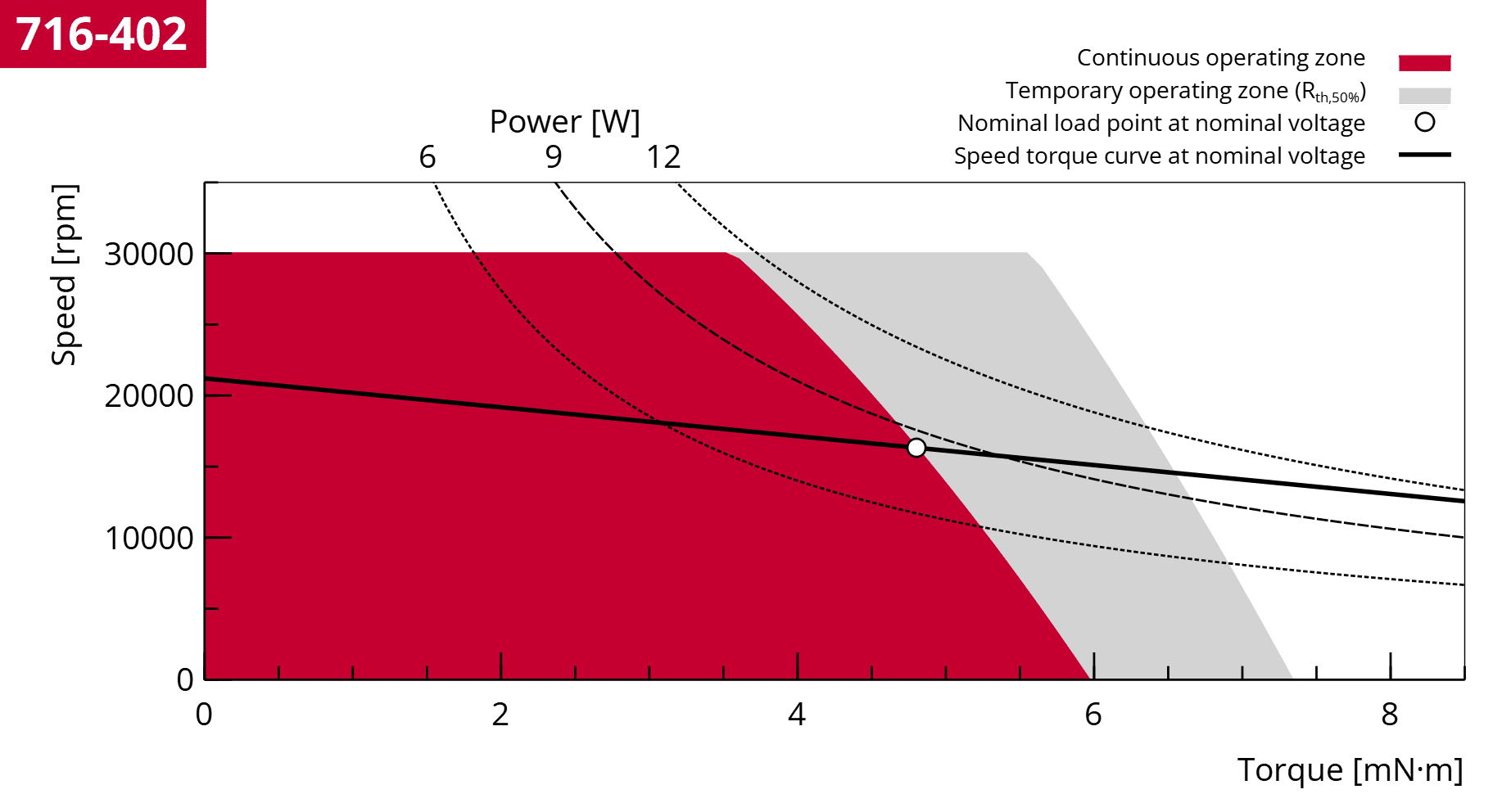

Operating range (based on on ambient 25°C)
