712-100.001 – 12mm Brushless Motor
Slotless (inrunner) Ø12 x 15mm / with single shaft / flanged face / sensorless
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.

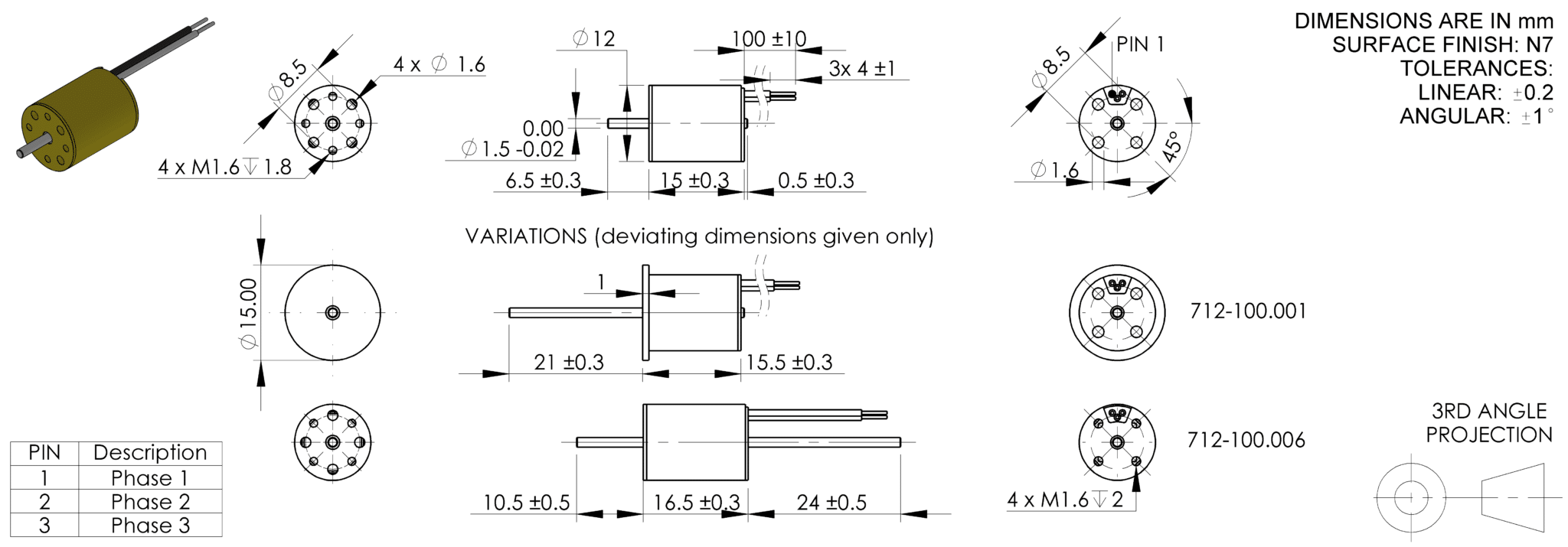

Drawing
Key Features
| Model No. | 712-100.001 | ||
| Motor Type | Inrunner [Slotless] | ||
| Diameter | mm | 12 | |
| Length | mm | 15 | |
| Voltage | V | 5 | |
| No-load Current | A | 0.07 | |
| No-load Speed | rpm | 16140 | |
| Stall Torque | mNm | 3.13 | |
| Stall Current | A | 1.12 | |
| Nominal Torque | mNm | 2.23 | |
| Nominal Speed | rpm | 3940 | |
| Nominal Current | A | 0.86 | |
| Sensor Commutation | Sensorless |
Performance characteristics
| Nominal voltage | V | 5 | |
| No load speed | rpm | 16 140 | |
| No load current | A | 0.07 | |
| Nominal speed | rpm | 3 940 | |
| Nominal torque | mNm | 2.23 | |
| Nominal current | A | 0.86 | |
| Stall torque | mNm | 3.13 | |
| Stall current | A | 1.12 | |
| Maximum efficiency | % | 57.70 |
Design and accessories
| Availability | 8 weeks | ||
| Motor Type | Brushless | ||
| Commutation | Sensorless | ||
| Shafts | Single | ||
| Encoder | Not fitted | ||
| Gearbox | Not fitted | ||
| Connections | Tinned | ||
| Cable | 100mm x AWG28 | ||
| Housing Material | Aluminium alloy | ||
| Body diameter | mm | 12 | |
| Body length | mm | 15.5 | |
| Weight | g | 8.1 |
Motor body characteristics
| Thermal resistance housing-ambient | °C/W | 12.8 | |
| Thermal resistance winding-housing | °C/W | 4.0 | |
| Thermal resistance winding-housing | s | 3 | |
| Thermal time constant motor | s | 156 | |
| Ambient temperature | min | °C | -30 |
| max | °C | +100 | |
| Max. permissable winding temperature | °C | +100 | |
| Max. permissable rotor speed | rpm | 50 000 | |
| Axial play at axial load | mm | 0.1 max | |
| Radial play | Preloaded | ||
| Max. axial load (dynamic) | N | 0.5 | |
| Max. force for press fits (static) | N | 10 | |
| with shaft supported | N | 200 | |
| Number of pole pairs | 1 | ||
| Number of winding phases | 3 |
Winding specific characteristics
| Terminal resistance | Ω | 4.45 | |
| Terminal inductance | mH | 0.09 | |
| Torque constant (Kt) | mNm/A | 2.79 | |
| Speed constant (Kv) | rpm/V | 3 425 | |
| Speed / torque gradient | rpm/mNm | 5 467 | |
| Mechanical time constant | ms | 7.9 | |
| Rotor inertia | g.cm² | 0.14 |

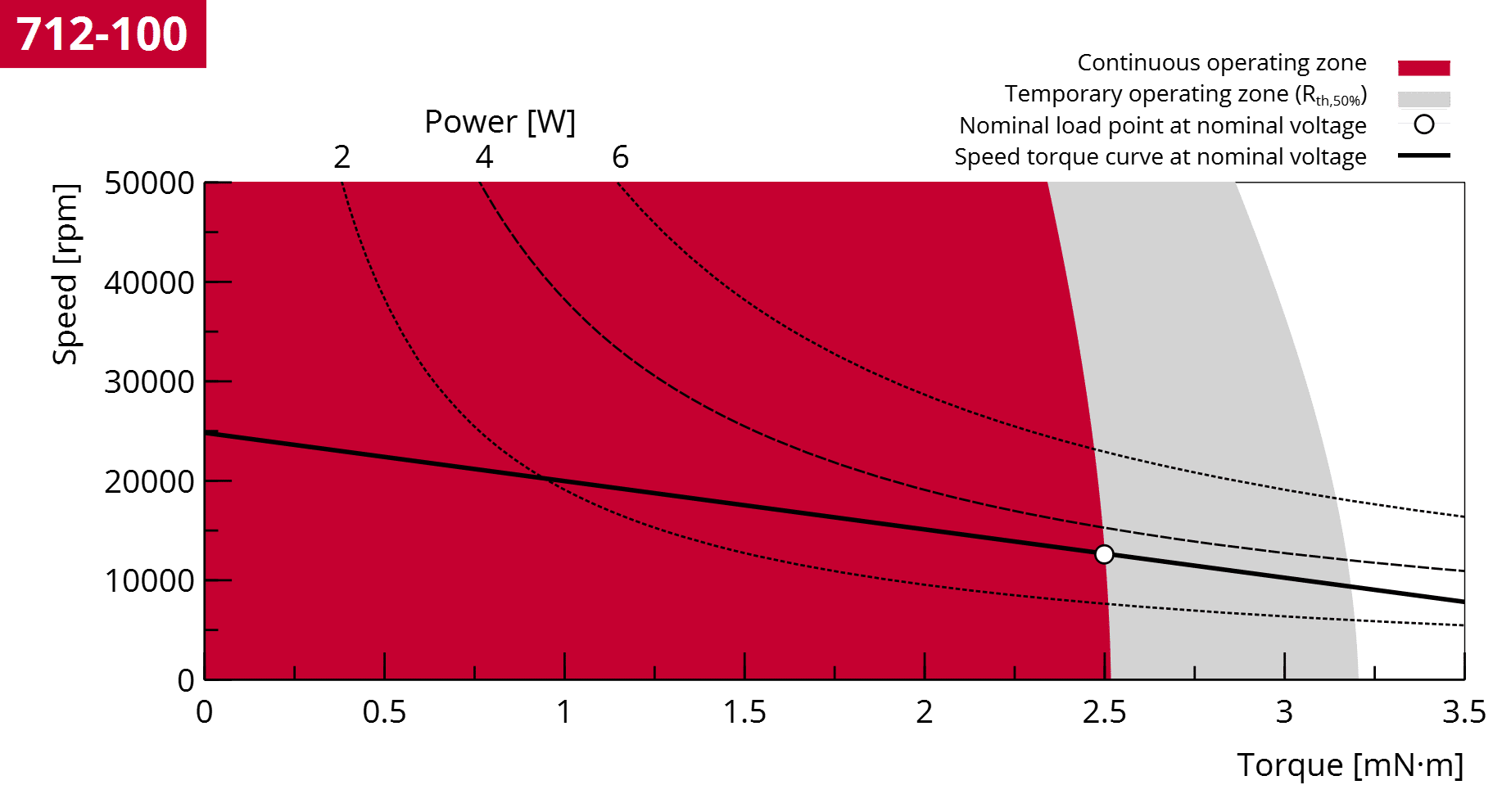

Operating range (based on on ambient 25°C)
