Haptic Feedback Evaluation Kit Tutorial: Connecting an External Actuator

Looking for our Haptics range? View our main Haptics hub here.


Looking to test an ERM or LRA outside of the grip? Even mounted in your own prototype device?

Using an external actuator with the Haptic Feedback Evaluation Kit is extremely simple. In general, there are two things you need to do:

  • Unplug the Haptic Grip
Close up of our haptic kit with the hand unplugging the grip
Unplug the Haptic Grip’s 6 pin ribbon cable
  • Connect the actuator to the SMD test points OUT- and OUT+
Close up of our haptic feedback kit with the actuator connected to the SMD test points OUT- and OUT+
Connect to the OUT- and OUT+ SMD test points

That’s it! Your actuator now receives the drive signal immediately from the DRV2605, before it reaches any switch or another component. It is intended to be as pure a connection to the haptic driver as possible – it is, therefore, unable to connect the MOSFET. For information on how to use vibration alerting with an external actuator, read our guide here.

However, there are some other aspects to consider:

  • Mode of Operation

Intro Mode and Engineering Mode are designed to work with the Haptic Grip and run with the assumption that it is connected. Therefore if you connect an LRA as an external actuator, but your Engineering Mode has the 305-000 ERM selected nothing will happen when you try to play an effect.

Try to select the correct type of actuator on the Haptic Controller, for example, if you connect an ERM select one of the ERMs (cycling the PMD button) in the menu system. This leads us on to…

  • Motor Ratings

Make sure your actuator fits within the operating constraints of the DRV2605, see the datasheet here.

If you are testing in the Engineering Mode and don’t wish to edit the code manually, try to select the ERM that is closest to the specification (particularly voltage and operating current) of your external actuator.

The DRV2605 has an auto-calibration feature that compensates the drive signal for the specific actuator. The Intro Mode and Engineering Mode handle this for you automatically, in the latter you can clear the stored values to re-calibrate using the debugging feature (user manual here). However, when using the Development Mode you need to make sure you are using an appropriate value in the functionselectMotor( motorID ); so that functionautoCalibrate(); works correctly.

See the tutorial on calibrating the DRV2605 for more information.

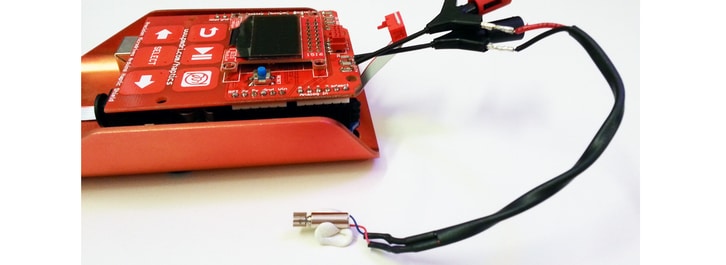

Our haptic feedback kit with a vibration motor connected to it
Mount the external actuator in your prototype!
