Case study

Emergency services ruggedised radio

  • Ruggedised handheld radio for emergency services.
  • Vibration Alerting to indicate incoming message or call.
  • High performance ruggedised vibration motor with PCB backpack interface.
Home » Case Studies » Emergency services ruggedised radio

Challenge

  • The customer was updating a well established emergency services radio. The previous generation radio had experienced multiple issues with the vibration alert feature.
  • They wanted to upgrade the vibration intensity and address reliability issues that had plagued the previous model. This meant finding a new supplier.
  • The radio needed to withstand extreme temperatures, a profile of ‘active’ and ‘rough’ use, as well as penetrate a new generation of more protective fire fighting clothing.

Solution

  • We were lucky enough to enter this project with a clear list of improvements required for the next generation radio.
  • Our engineers uprated the motor windings, bearings and eccentric mass.
  • We upgraded the motor shaft and added / enclosed the motor with a rubber suspension cover. This reduced audible noise from the motor and enabled it to withstand accelerated drop tests.
  • We undertook a design for manufacture review with the customer’s manufacturing engineers. This resulted in a PCB backpack with gold plated connection springs to speed up assembly.

Results

  • The new generation radio was released with a long list of improvements that had been requested by the worldwide emergency services user community.
  • Firefighters were pleased with the new radio’s ability to penetrate protective clothing when the radio was secured to chest and hip belts.
  • Police and security forces appreciated the new radio’s ability to withstand repeated drops and continue functioning.
  • Our customer’s production line staff were able to assemble radio’s quicker because of our assembly optimised features.

Project Scope

Emergency radios to withstand high temperatures, impacts, and vibrate through protective clothing

Vibration alerting is a key feature for many applications. This is especially true when communication can mean life or death, such as this emergency services radio, which was widely used throughout the world.

Our customer had built a loyal following, but there were some issues around the vibration motor in a previous generation (and from another motor supplier) radio that needed to be addressed.

The customer engaged us at the start of a redesign on the next generation radio, and helpfully had a very specific list of the problems affecting the previous design and motor. We methodically worked through each problem to find an solution. The result was a more expensive motor assembly, but one which worked much better, and was far more robust.

The new radio can now alert fire fighters when fully suited, and take a lot more abuse than the previous generation. The end customer is able to manufacture quicker to thanks to features built into the motor to aid end product assembly.

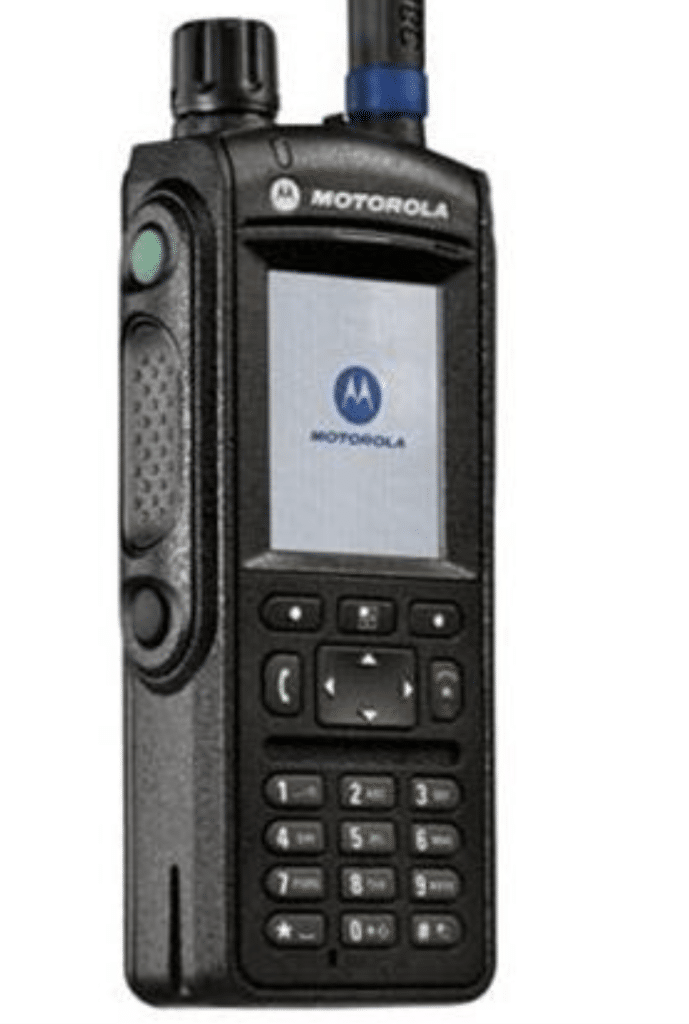

An emergency services ruggedised radio
Next gen emergency services radio

STAGE 1

Designing for application

  • Following a number of tests on a customer vibration analysis machine, we made changes to the motor’s windings and eccentric mass.
  • We also uprated the shaft and designed a rubber suspension cover to withstand impacts.
  • We worked with their manufacturing engineers to implement a spring / pad electrical connection method, to simplify end assembly.

STAGE 2

Testing and validation

  • We designed a new Tungsten weight with raw materials sourced in compliance with necessary Dodd-Frank anti-conflict minerals regulations.
  • On initial prototypes the vibration performance was great, but longevity suffered. We used our testing validation process to find a more suitable load point for the motor and adjust the windings accordingly.
  • We built a customised accelerated drop test to validate the ruggedness of the new design.

STAGE 3

Mass production

  • We replaced leads and connectors with a PCB back-pack carrying gold plated surface mounted springs.
  • This reduced the radio assembly time by 20 seconds per radio.
  • It also eliminated a common failure mode identified at the start of our design review – vibration fatigued wire joints.
  • Our dedication to quality consistency, focus on improved performance and continued commitment to investing in advanced testing technology, means radios with our motors, continue to serve with strength.
