716-802

Ø16 x 36mm / with dual shafts / with sensors

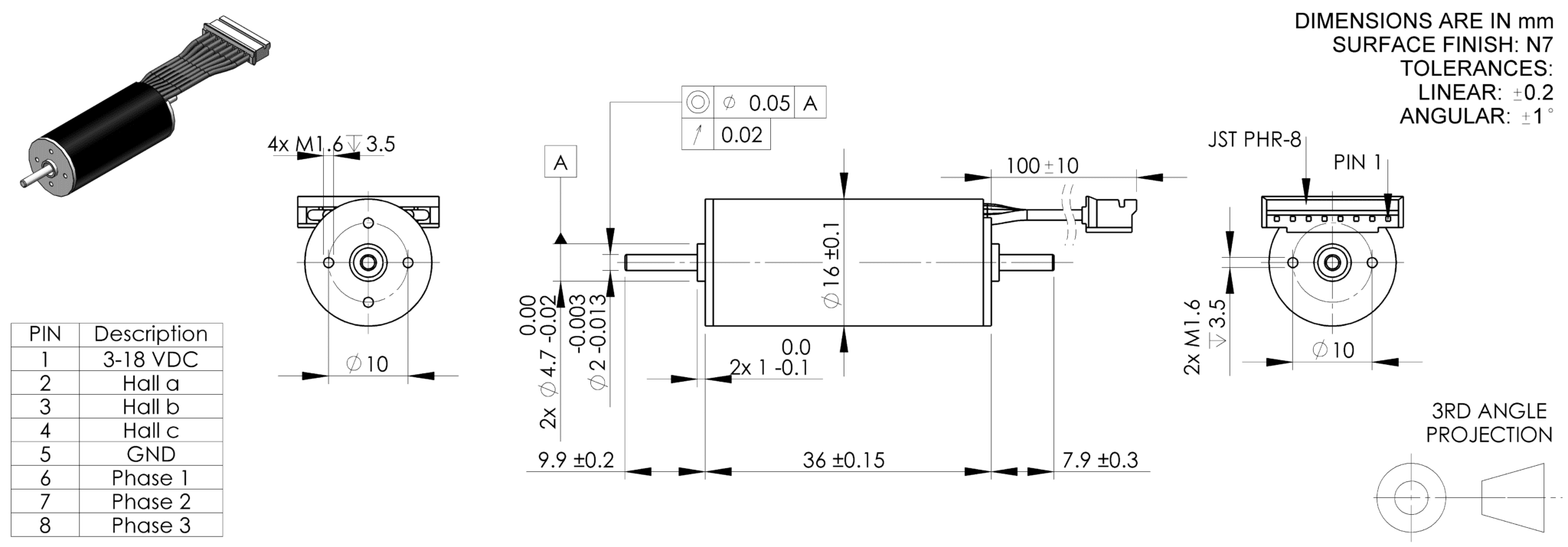

Diagram

Key Features

Model No.   mm 716-802
Diameter (mm)   mm 16
Length (mm)   mm 36
Voltage (V)   mm 24
No-load Current (A)   mm 0.09
No-load Speed (rpm)   mm 14390
Stall Torque (mNm)   mm 34.00
Stall Current (A)   mm 2.22
Nominal Torque (mNm)   mm 8.71
Nominal Speed (rpm)   mm 10530
Nominal Current (A)   mm 0.57
Sample Available   No

Performance characteristics

Nominal voltage V 24
No load speed rpm 14 390
No load current A 0.09
Nominal speed rpm 10 530
Nominal torque mNm 8.71
Nominal current A 0.57
Stall torque mNm 34.00
Stall current A 2.22
Maximum efficiency % 71.70

Design and accessories

Availability 8 weeks
Motor Type Brushless
Commutation Sensored / sensorless
Shafts Dual
Encoder Not fitted
Gearbox Not fitted
Connections 8-pinned JST PHR-8
Cable 100mm x AWG26
Housing Material Aluminium alloy
Body diameter mm 16
Body length mm 36
Weight g 32.0

Motor body characteristics

Thermal resistance housing-ambient °C/W 17.1
Thermal resistance winding-housing °C/W 5.3
Thermal resistance winding-housing s 6
Thermal time constant motor s 252
Ambient temperature min °C -30
max °C +100
Max. permissable winding temperature °C +150
Max. permissable rotor speed rpm 30 000
Axial play at axial load < 0.8N mm 0.0
< 0.8N mm 0.3 max
Radial play Preloaded
Max. axial load (dynamic) N 1.3
Max. force for press fits (static) N 15.0
with shaft supported N 350.0
Max. radial loading (5mm from flange) N 5.0
Number of pole pairs 1
Number of winding phases 3

Winding specific characteristics

Terminal resistance Ω 10.80
Terminal inductance mH 0.81
Torque constant (Kt) mNm/A 15.30
Speed constant (Kv) rpm/V 625
Speed / torque gradient rpm/mNm 444
Mechanical time constant ms 2.9
Rotor inertia mNm² 0.062

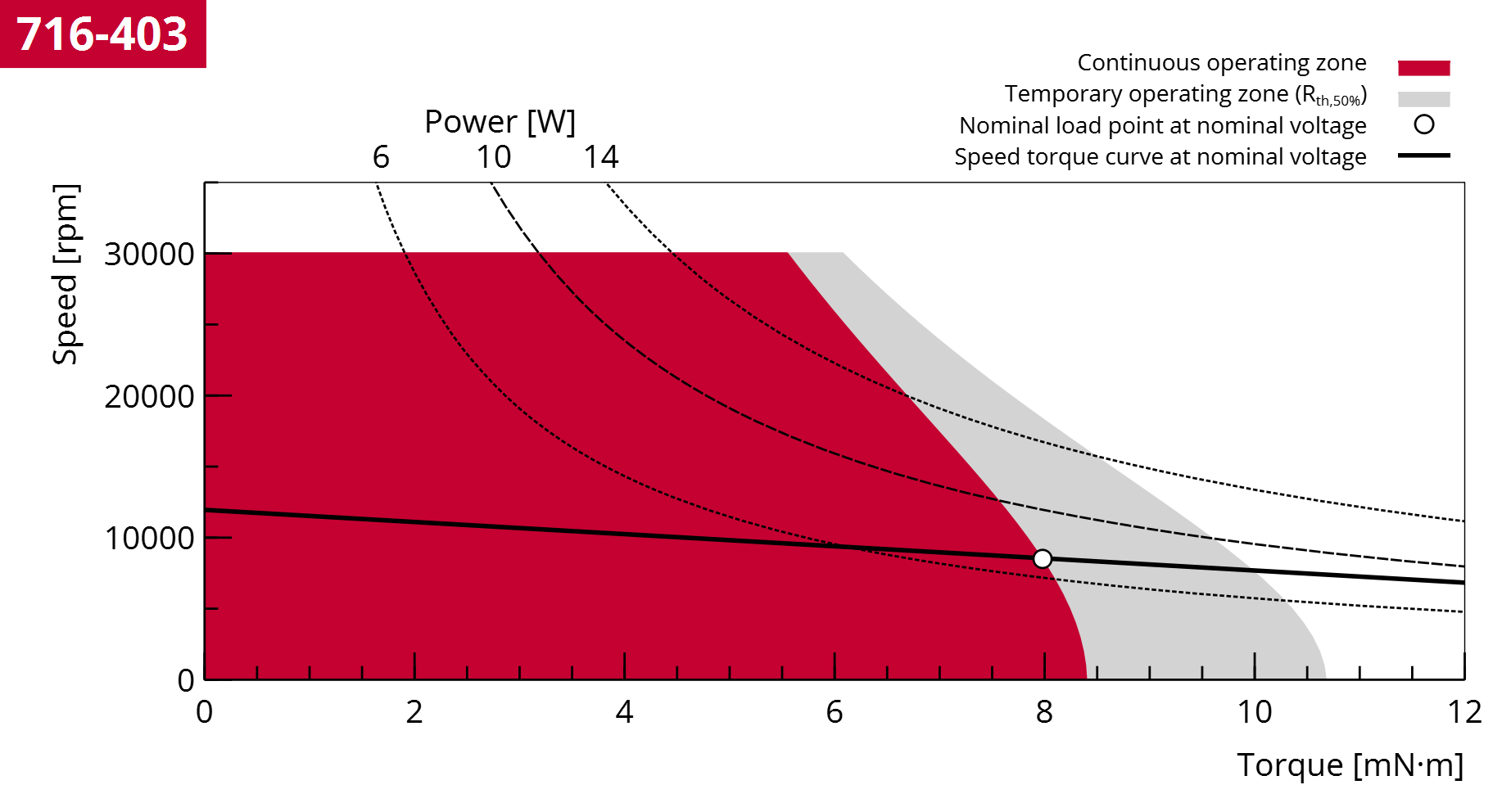

Operating range (based on on ambient 25°C)
