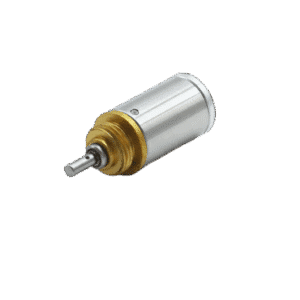

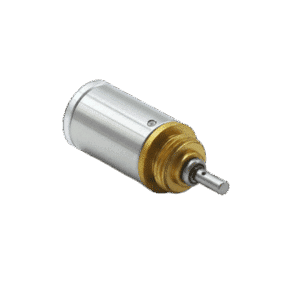

410-MP – 10mm Planetary Metal Gearbox
Planetary metal gearbox Ø10mm / with custom reduction ratios / shafts / mounting interfaces
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.

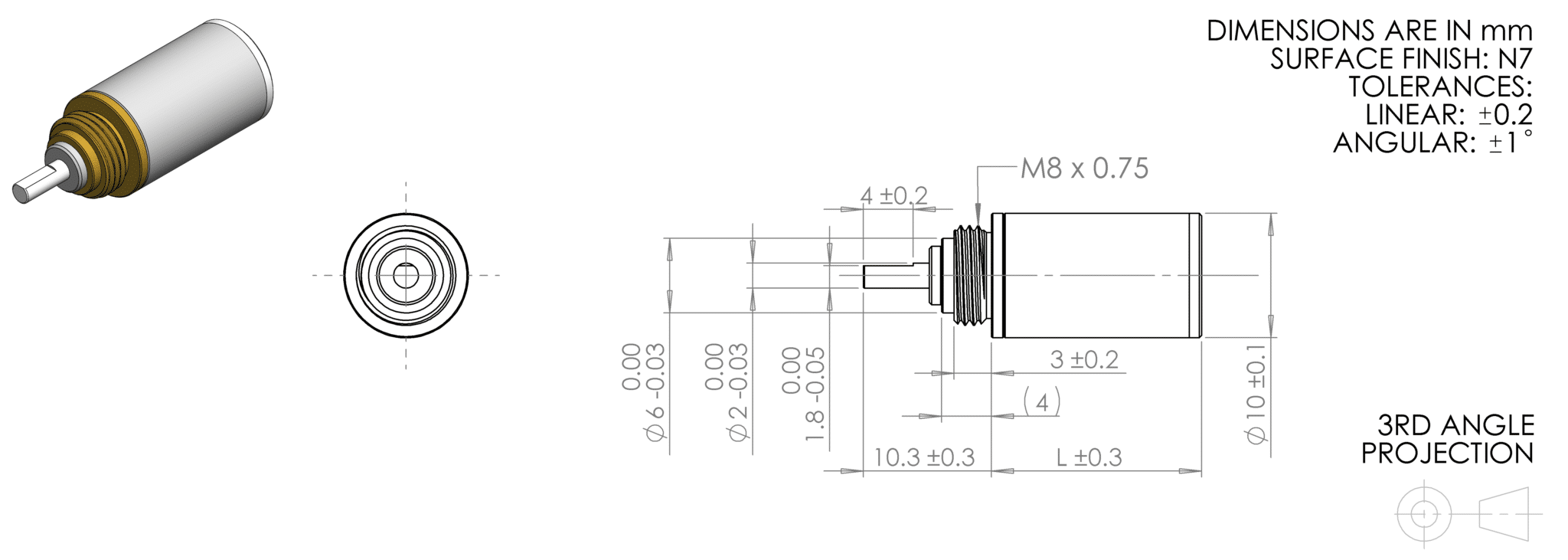

Drawing
Key Features
| Model No. | 410-MP | ||
| Gearbox Type | Planetary | ||
| Gear Material | Metal | ||
| Diameter | mm | 10 | |
| Min Length | mm | 14 | |
| Max Length | mm | 25.2 | |
| Min reduction stages | 1 | ||
| Max reduction stages | 5 | ||
| Min reduction ratio (1:) | 3.50 | ||
| Max reduction ratio (1:) | 1024.0 |
Gearbox body characteristics
| Bearing type | Ball bearing | ||
| Axial play | max | mm | 0.2 |
| Max. force for press fits | N | 10 | |
| Max. axial load (dynamic) | N | 8 | |
| Max. radial load | N | 10 | |
| Ambient temperature | min | °C | -30 |
| max | °C | +100 | |
| Reduction ratios and torque loadings | See datasheet |

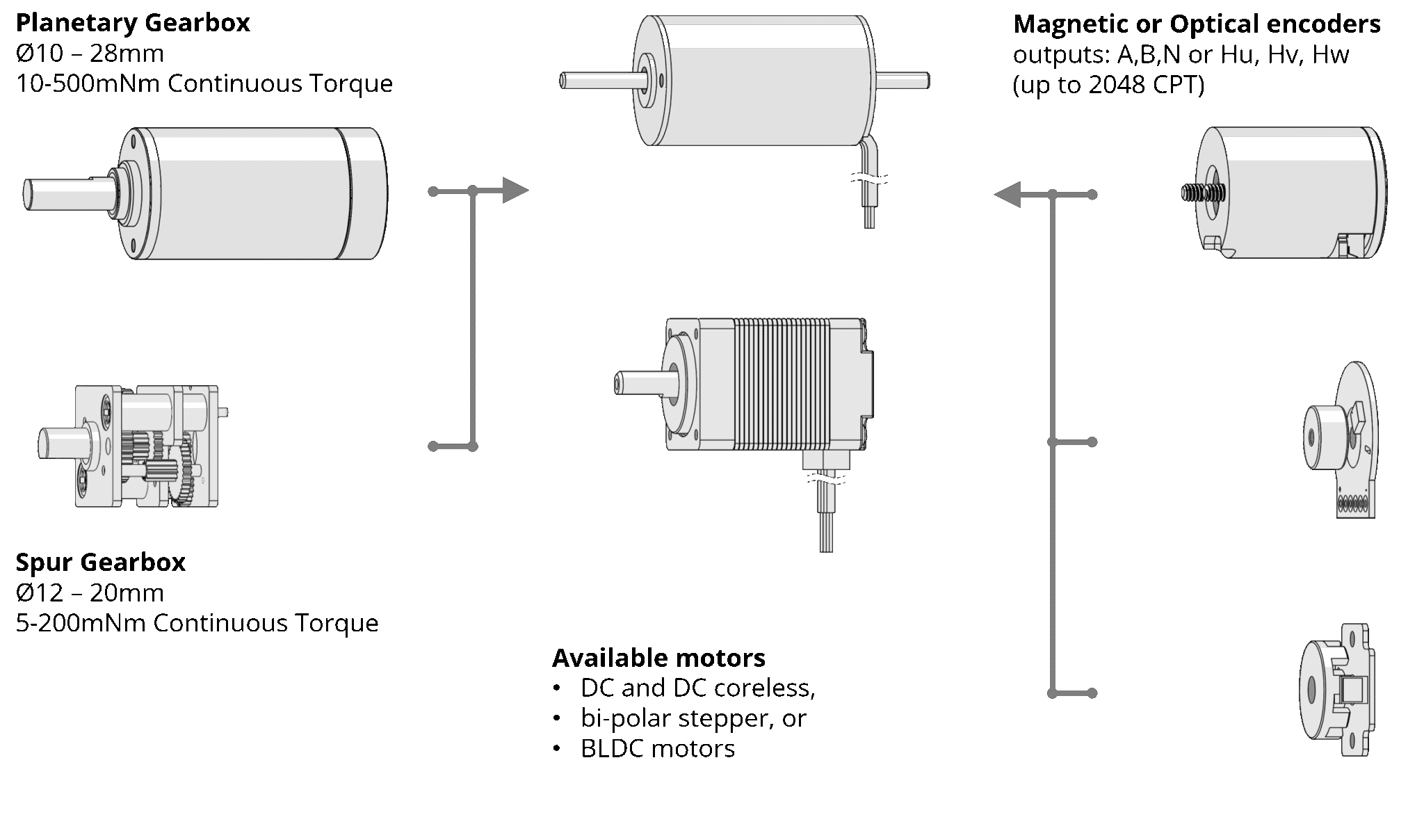

Possible combinations and usage
Our range of gearboxes are designed to integrate onto our ranges of motors (coreless, brushless, brushed, and stepper), and encoders. Please contact us so that we can prepare an fully integrated turn-key drive solution.
Sample request
We aim to get you up and prototyping as quickly as possible. We stock off-the-shelf samples for each motor size, to support commercial development.
Our application engineers can advise on motor design and selection, mechanism design, and support the development of high performance motor drivers. They can also assist to validate the in-application performance and longevity suitability of a down-selected motor or mechanism design.
Contact our application engineering team to discuss your project, using the form, or email [email protected].
