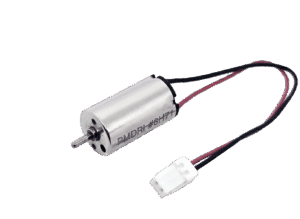

106-10C – 6mm Coreless Motor
Coreless Ø6 x 10.8mm / single shaft / precious metal brushes
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.
Samples for purchase
This part is available for immediate purchase, subject to stocks indicated, and priced by the volume discounts shown below.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 4 | — | US$ 4.29 |
| 5 - 9 | 5.59 % | US$ 4.05 |
| 10 - 24 | 13.05 % | US$ 3.73 |
| 25+ | 21.91 % | US$ 3.35 |
US$ 4.29
Current stock holding: 35 pcs in stock

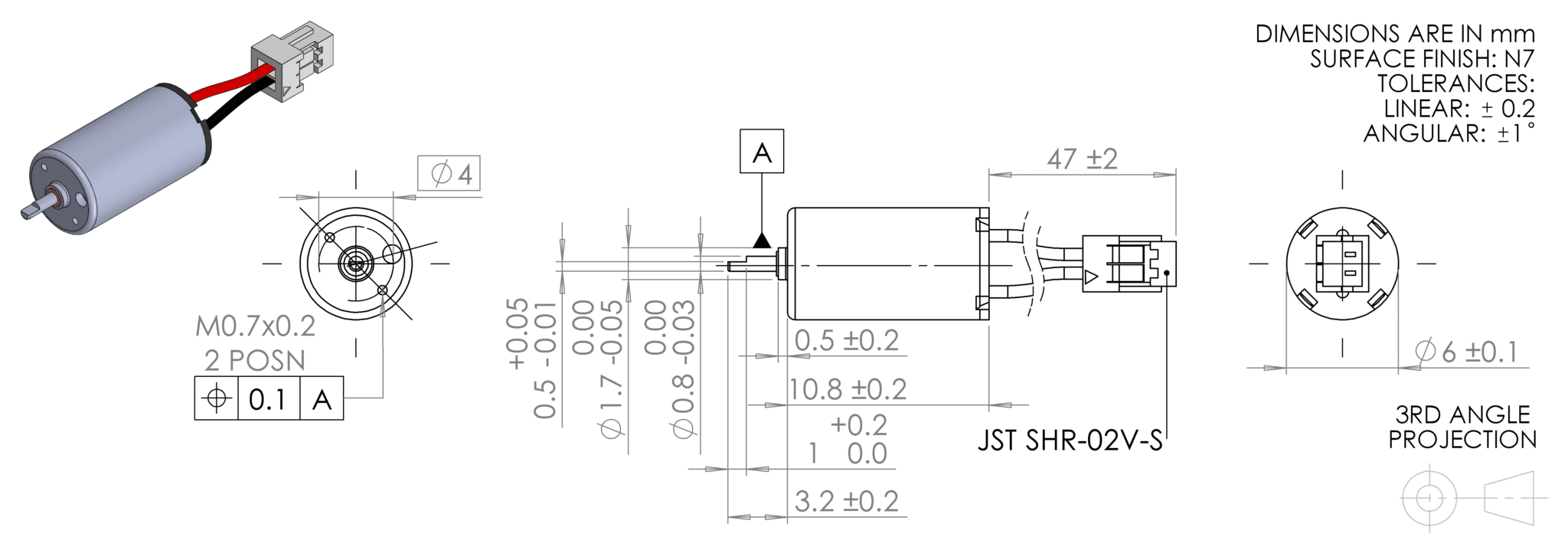

Drawing
Key Features
| Model No. | 106-10C | ||
| Motor Type | Coreless | ||
| Diameter | mm | 6 | |
| Length | mm | 10.8 | |
| Voltage | V | 3 | |
| No-load Current | A | 0.016 | |
| No-load Speed | rpm | 34330 | |
| Stall Torque | mNm | 0.32 | |
| Stall Current | A | 0.625 | |
| Nominal Torque | mNm | 0.12 | |
| Nominal Speed | rpm | 3580 | |
| Nominal Current | A | 0.170 | |
| Commutation | Precision metal brushes |
Performance characteristics
| Nominal voltage | V | 3 | |
| No load speed | rpm | 34 330 | |
| No load current | A | 0.016 | |
| Nominal speed | rpm | 21 360 | |
| Nominal torque | mNm | 0.12 | |
| Nominal current | A | 0.170 | |
| Stall torque | mNm | 0.32 | |
| Stall current | A | 0.625 | |
| Maximum efficiency | % | 63.9 |
Design and accessories
| Availability | Stocked design | ||
| Motor Type | Brushed | ||
| Commutation | Precious metal brushes | ||
| Shafts | Single | ||
| Encoder | Not fitted | ||
| Gearbox | Not fitted | ||
| Connections | JST SHR-02V-S | ||
| Cable | 47mm x AWG32 | ||
| Housing Material | Nickel plated steel | ||
| Body diameter | mm | 6 | |
| Body length | mm | 10.8 | |
| Weight | g | 1.3 |
Motor body characteristics
| Thermal resistance housing-ambient | °C/W | 91.0 | |
| Thermal resistance winding-housing | °C/W | 21.0 | |
| Thermal resistance winding-housing | s | 2 | |
| Thermal time constant motor | s | 67 | |
| Ambient temperature | min | °C | -20 |
| max | °C | +60 | |
| Max. permissable winding temperature | °C | +85 | |
| Max. permissable rotor speed | rpm | 56 000 | |
| Axial play at axial load | mm | 0.3 max | |
| Max. axial load (dynamic) | N | 0.08 | |
| Max. force for press fits (static) | N | 8.0 | |
| Max. radial loading (3mm from flange) | N | 0.25 | |
| Number of pole pairs | 1 |
Winding specific characteristics
| Terminal resistance | Ω | 7.20 | |
| Terminal inductance | uH | 51 | |
| Torque constant (Kt) | mNm/A | 0.80 | |
| Speed constant (Kv) | rpm/V | 11 900 | |
| Speed / torque gradient | rpm/mNm | 108 081 | |
| Mechanical time constant | ms | 43 | |
| Rotor inertia | g.cm² | 0.019 |

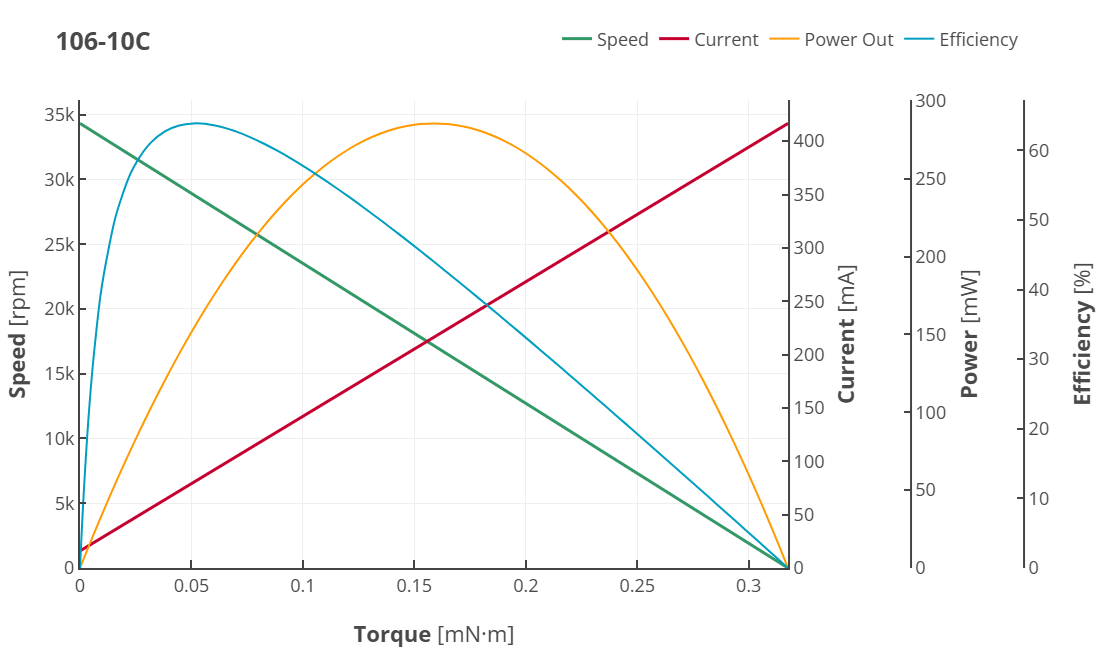

Operating range (based on on ambient 25°C)
For each motor frame size (diameter / length), we present the operating range diagram that relates to the winding of the stock sampleable part. The part number of the stock sampleable part is shown in the diagram below, and the product page of the stock sampleable part, can be found in the ‘related products’ section towards the bottom of the page.
