DC brushed, coreless and brushless

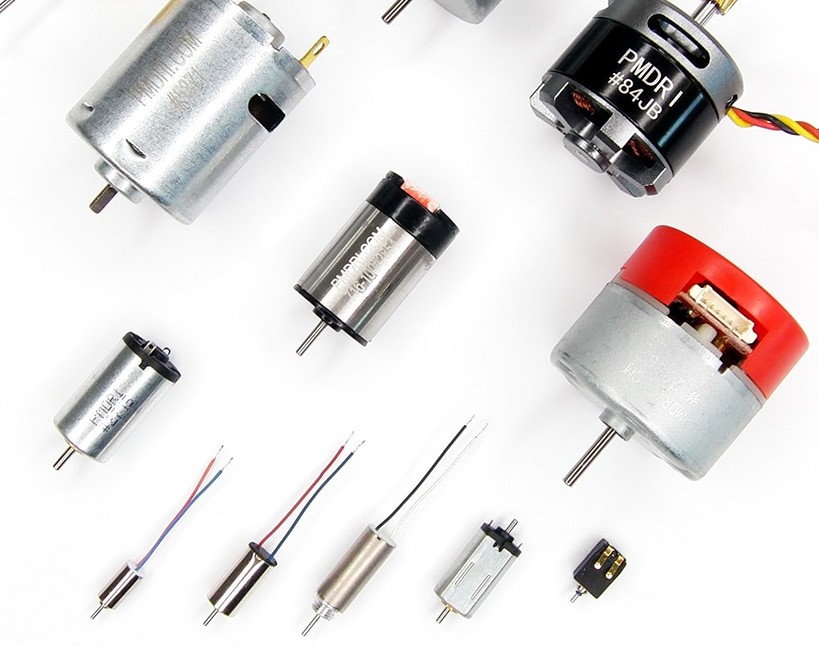

Precision Microdrives designs and manufactures a wide range of high-quality, and cost effective, sub-Ø60 mm DC motors in a range of technologies. All types can be highly customised for a wide range of applications
25 products in this category

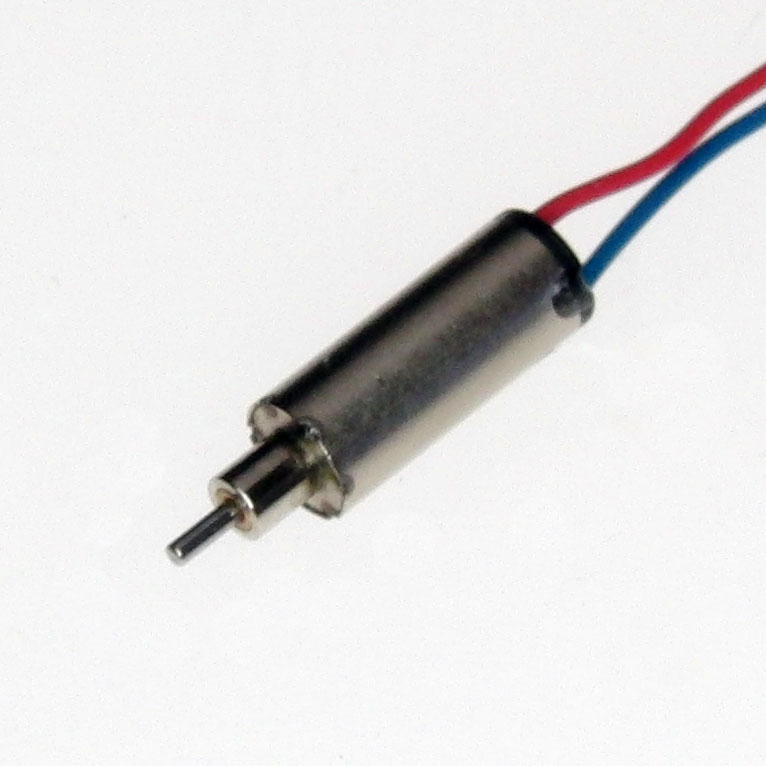

| 103-100 | 3mm DC Motor - 8mm Type | 0 | 8 weeks | Brushed | 3.2 | 8.1 | 3 | 55,000 | 40 | Precious Metal Brush | 0.6 | 3.8 | 45 mm x AWG32 | 85 | 0.01 | 27,000 | 60 | 50 | 35 | 36 | ||

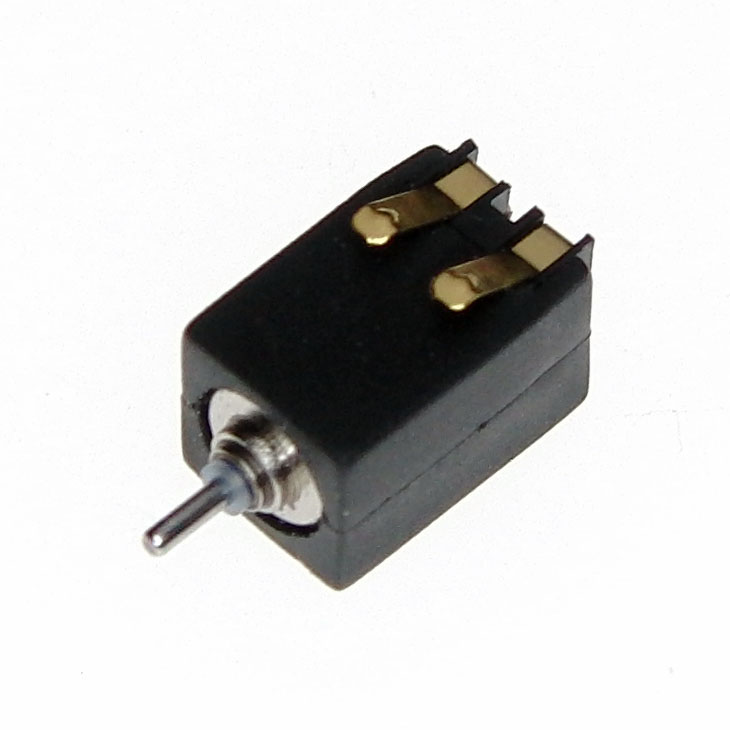

| 104-000 | 4mm DC Motor - 9mm Type | 3 | Stocked design | Brushed | 4 | 8.6 | 1.5 | 29,100 | 55 | Precious Metal Brush | 0.7 | 3.4 | Not fitted | 140 | 0.01 | 21,300 | 85 | 36 | 13 | 29 | ||

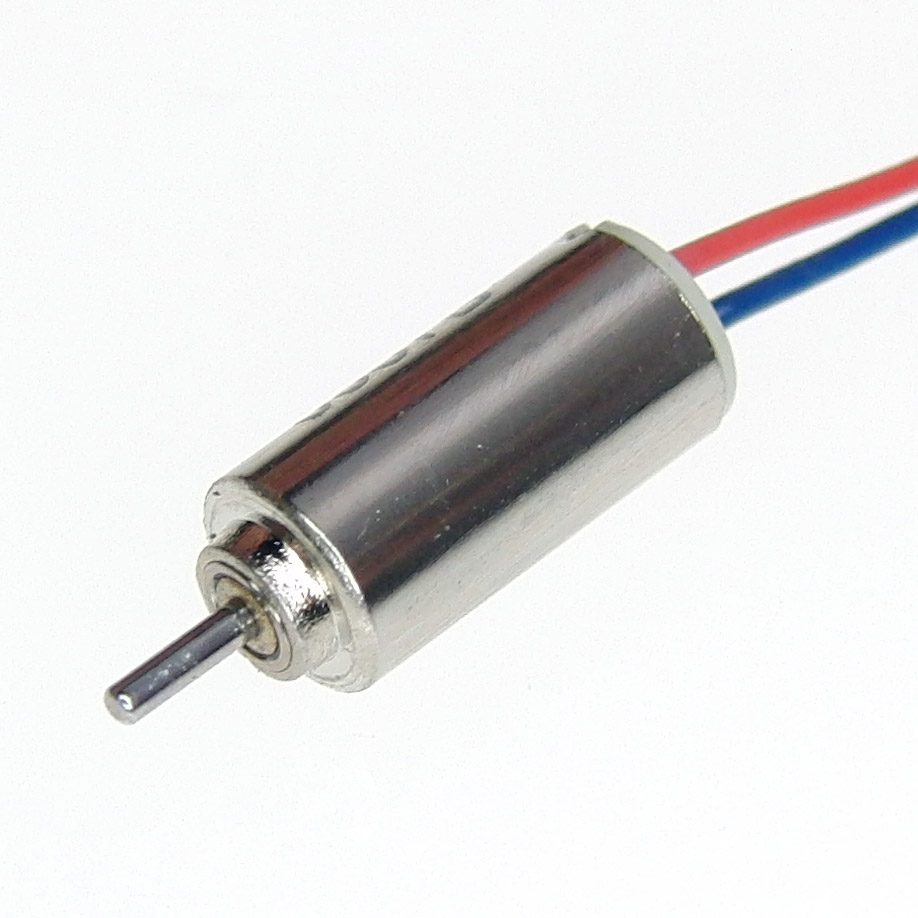

| 104-001 | 4mm DC Motor - 8mm Type | 0 | 8 weeks | Brushed | 4.1 | 7.9 | 3 | 50,000 | 30 | Precious Metal Brush | 0.7 | 3.6 | 45 mm x AWG32 | 115 | 0.01 | 39,000 | 45 | 60 | 32 | 61 | ||

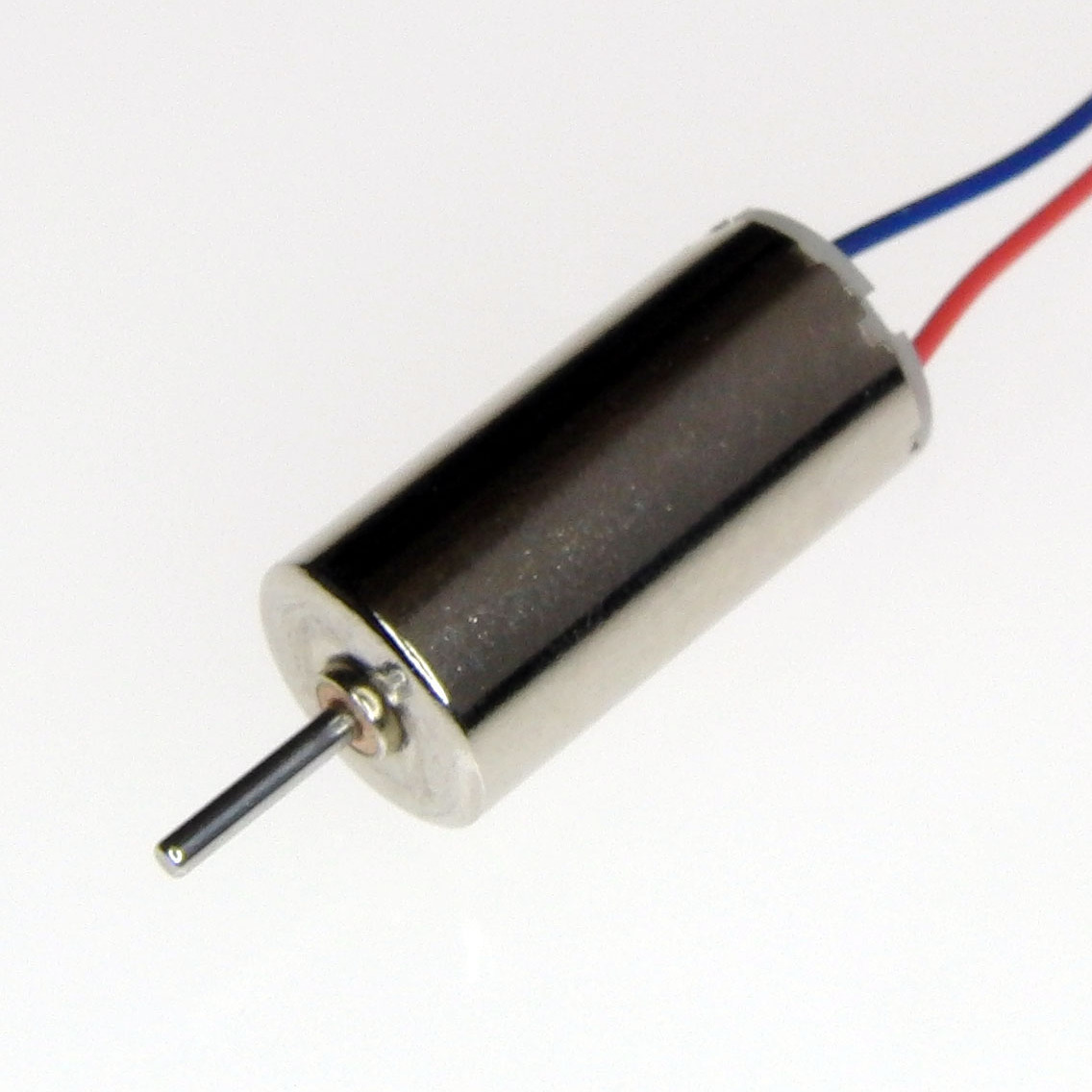

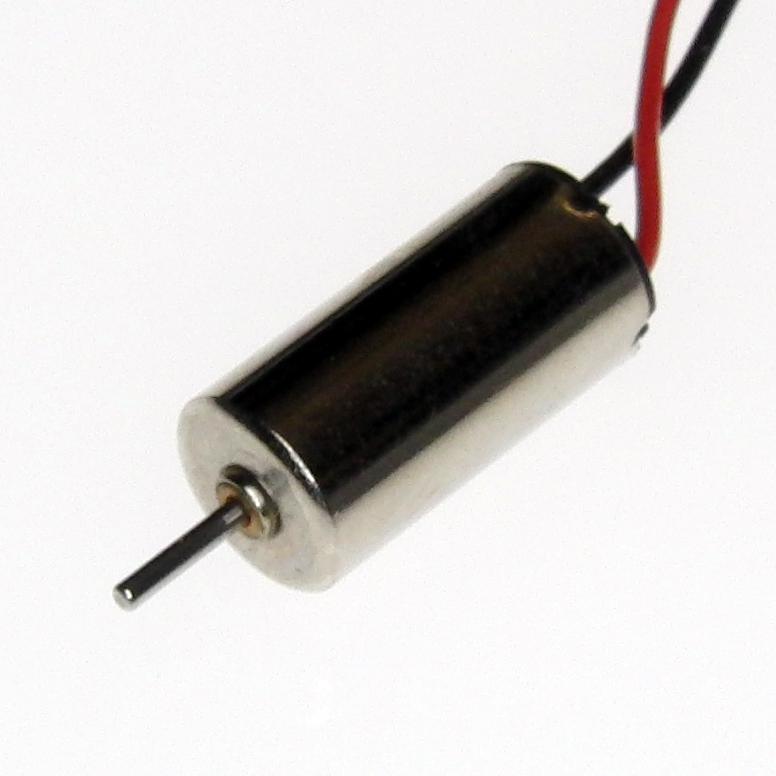

| 106-001 | 6mm DC Motor - 12mm Type | 0 | 8 weeks | Brushed | 6 | 12.2 | 1.3 | 21,700 | 50 | Precious Metal Brush | 0.8 | 4.2 | 50 mm x AWG32 | 500 | 0.03 | 17,800 | 115 | 22 | 3.1 | 102 | ||
| 106-002 | 6mm DC Motor - 12mm Type | 0 | 8 weeks | Brushed | 6 | 12.2 | 3 | 23,000 | 20 | Precious Metal Brush | 0.8 | 4.8 | 45 mm x AWG32 | 180 | 0.05 | 14,000 | 70 | 90 | 16 | 120 | ||

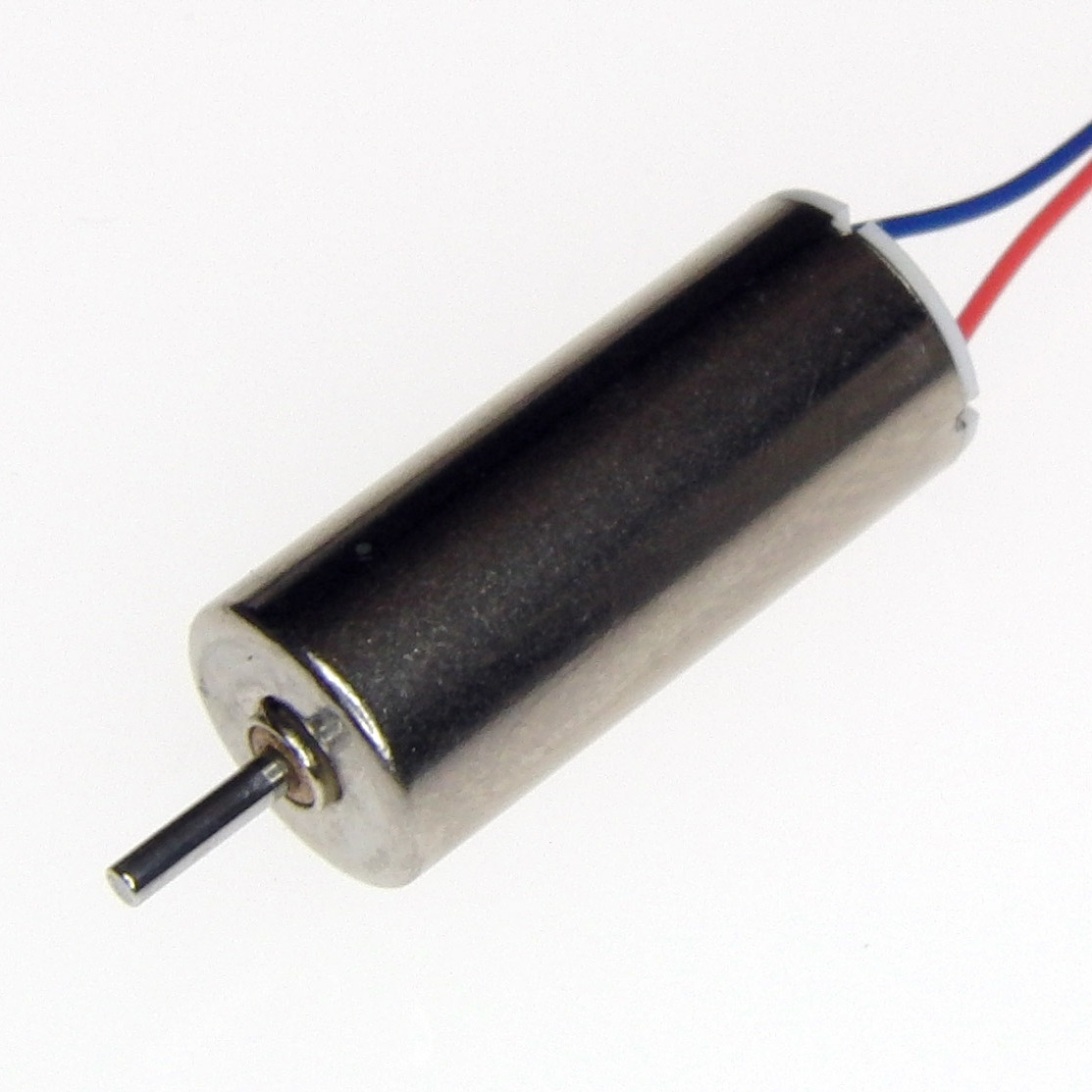

| 107-001 | 7mm DC Motor - 17mm Type | 0 | 8 weeks | Brushed | 7 | 16.6 | 1.5 | 8,500 | 18 | Precious Metal Brush | 1 | 4.6 | 50 mm x AWG32 | 190 | 0.09 | 5,260 | 87 | 74 | 9.58 | 53 | ||

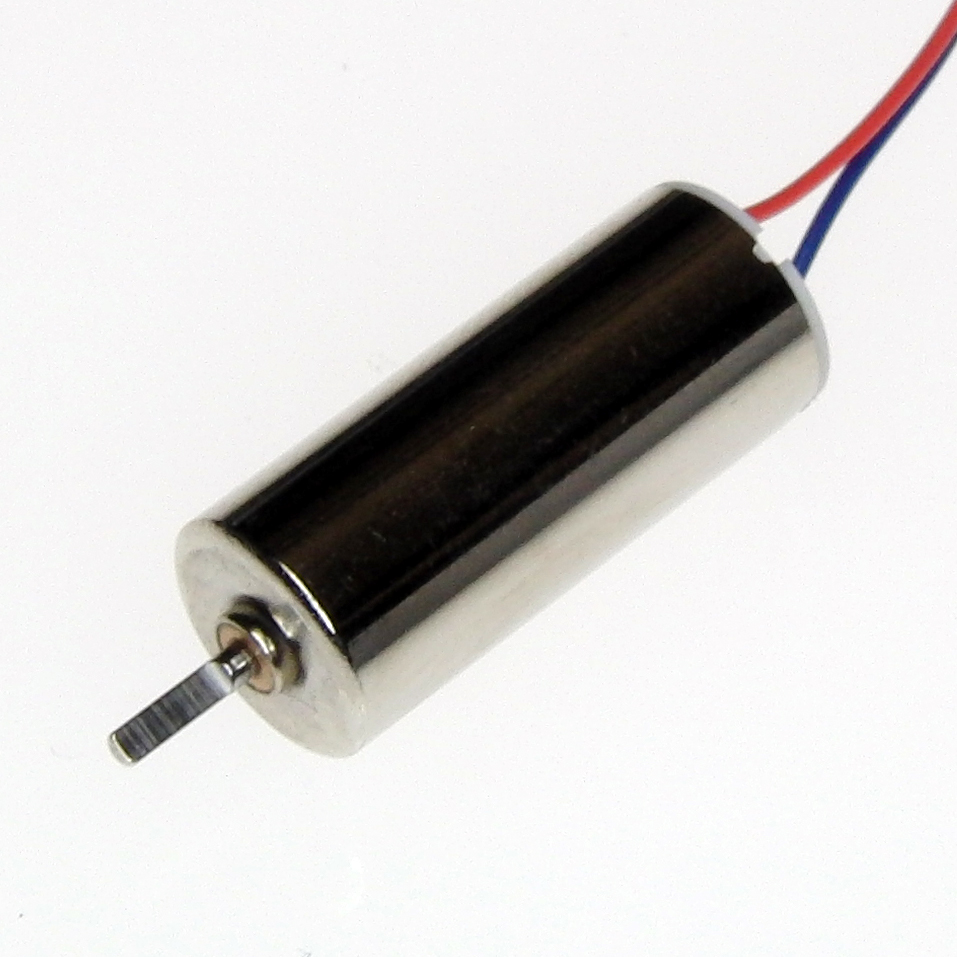

| 107-002 | 7mm DC Motor - 17mm Type | 0 | 8 weeks | Brushed | 7 | 16.6 | 1.5 | 9,500 | 40 | Precious Metal Brush | 1 | 4 | 50 mm x AWG32 | 170 | 0.09 | 4,800 | 85 | 55 | 9 | 62 | ||

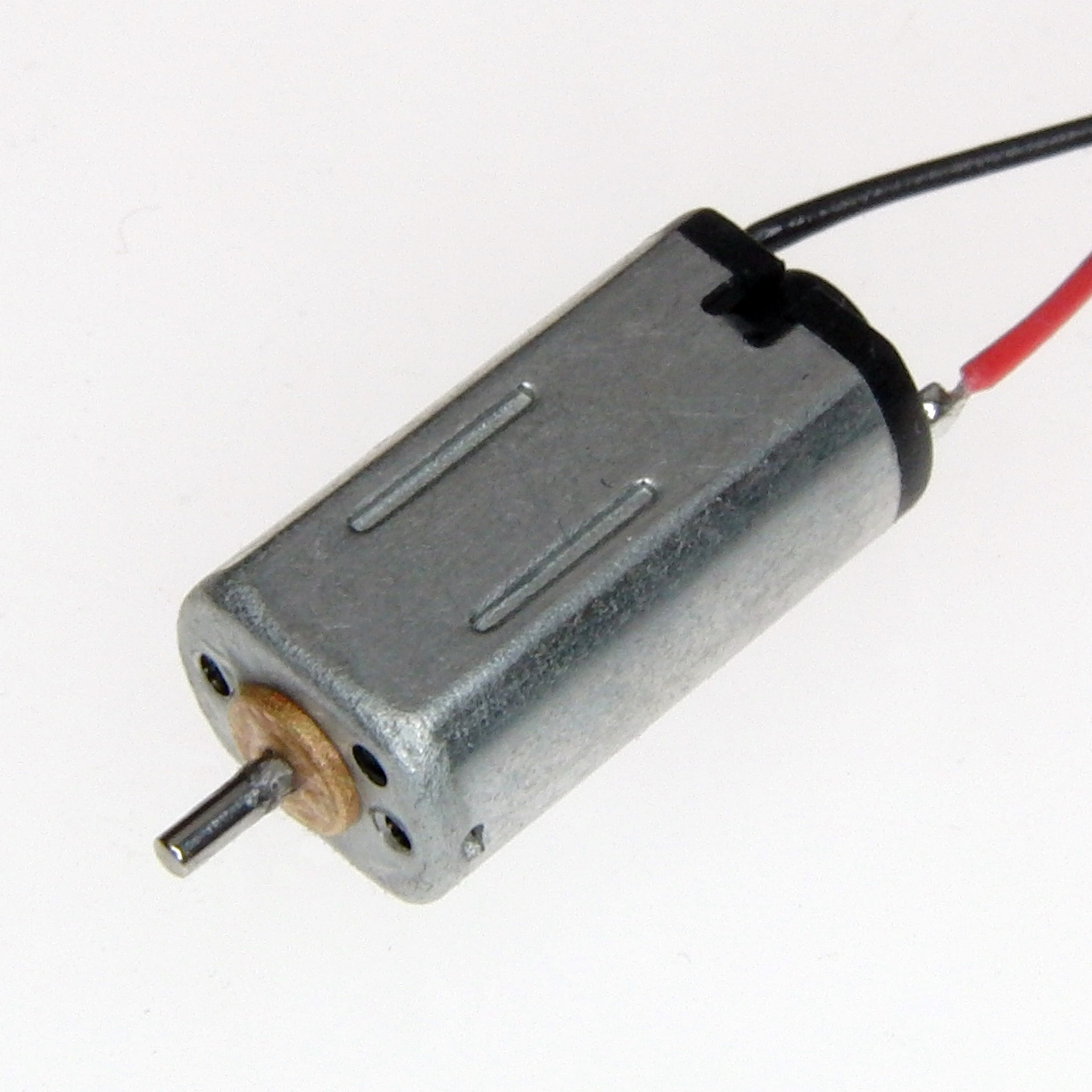

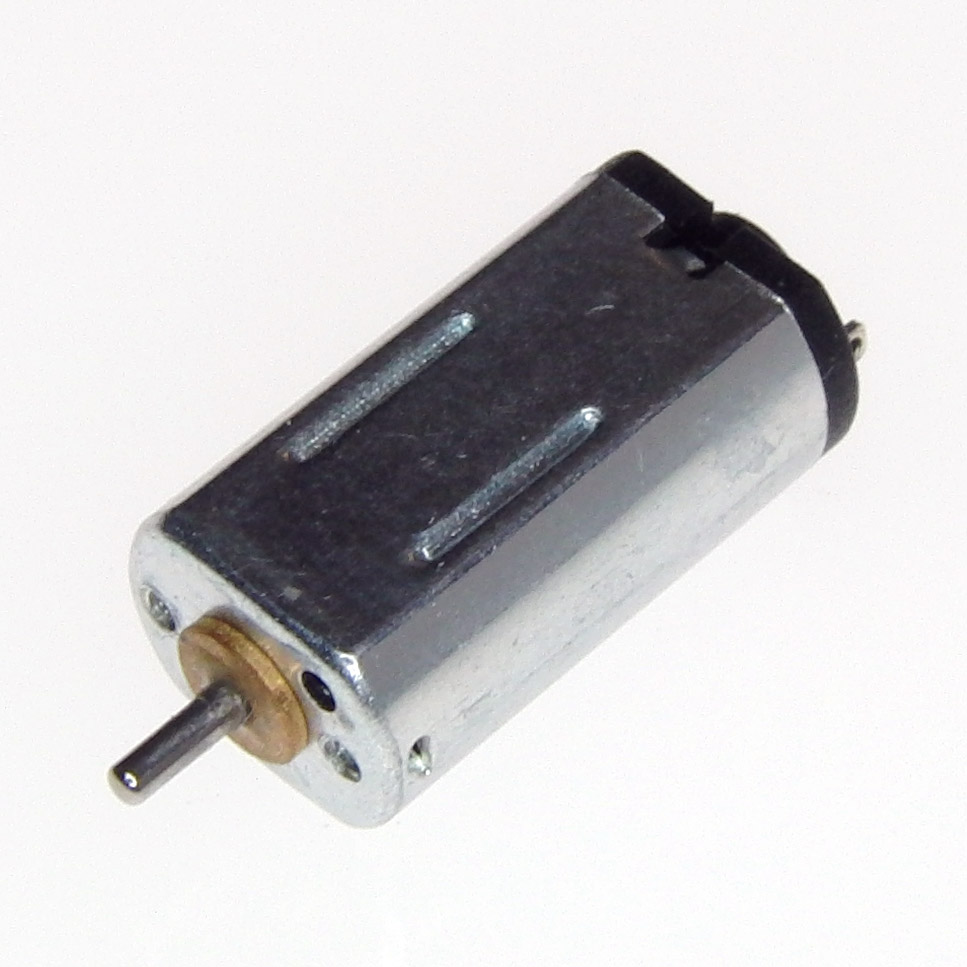

| 108-105 | 8mm DC Motor - 15mm Type | 0 | 8 weeks | Brushed | 8 | 14.5 | 3 | 17,700 | 79 | Precious Metal Brush | 1 | 3.6 | Not fitted | 500 | 0.15 | 12,700 | 190 | 691 | 7.46 | 245 | ||

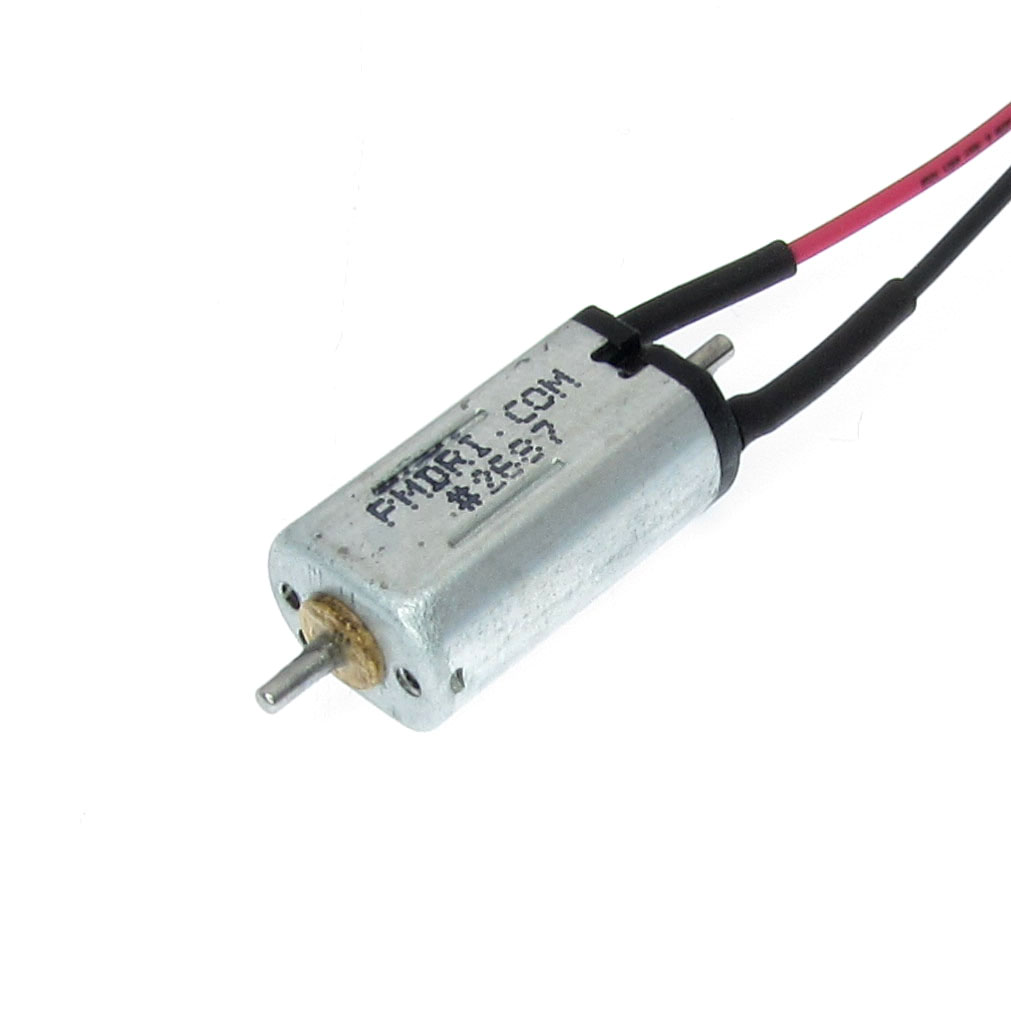

| 108-105.001 | 8mm DC Motor - 15mm Type | 0 | 8 weeks | Brushed | 8 | 14.5 | 3 | 17,700 | 79 | Precious Metal Brush | 1 | 3.6 | 108 mm x AWG28 | 500 | 0.15 | 12,700 | 190 | 691 | 7.46 | 245 | ||

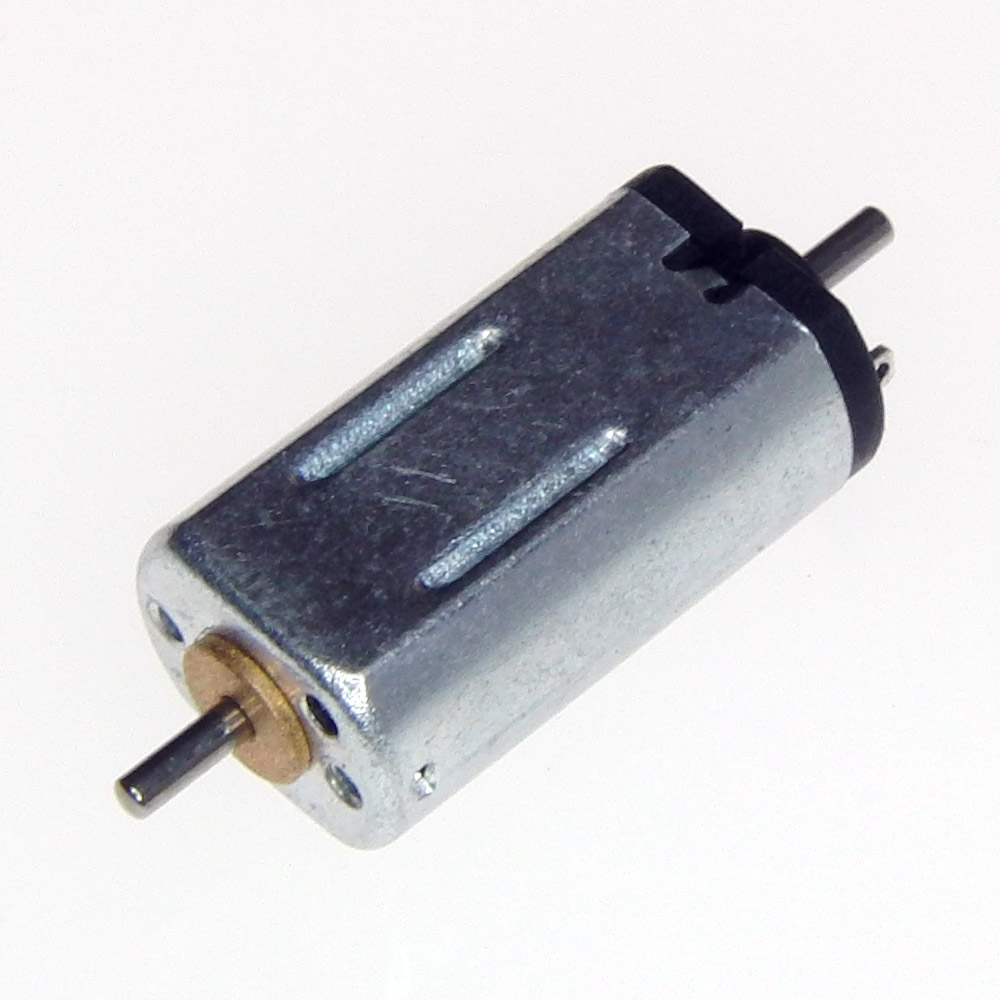

| 108-106 | 8mm DC Motor - 15mm Type | 0 | 8 weeks | Brushed | 8 | 14.5 | 3 | 18,000 | 80 | Precious Metal Brush | 1 | 3.7 | Not fitted | 600 | 0.15 | 13,300 | 192 | 720 | 7 | 269 | ||
| 108-106.002 | 8mm DC Motor - 15mm Type | 0 | 8 weeks | Brushed | 8 | 14.5 | 3 | 18,000 | 70 | Precious Metal Brush | 1 | 3.5 | 21 mm x AWG30 | 600 | 0.15 | 12,600 | 170 | 720 | 7 | 340 | ||

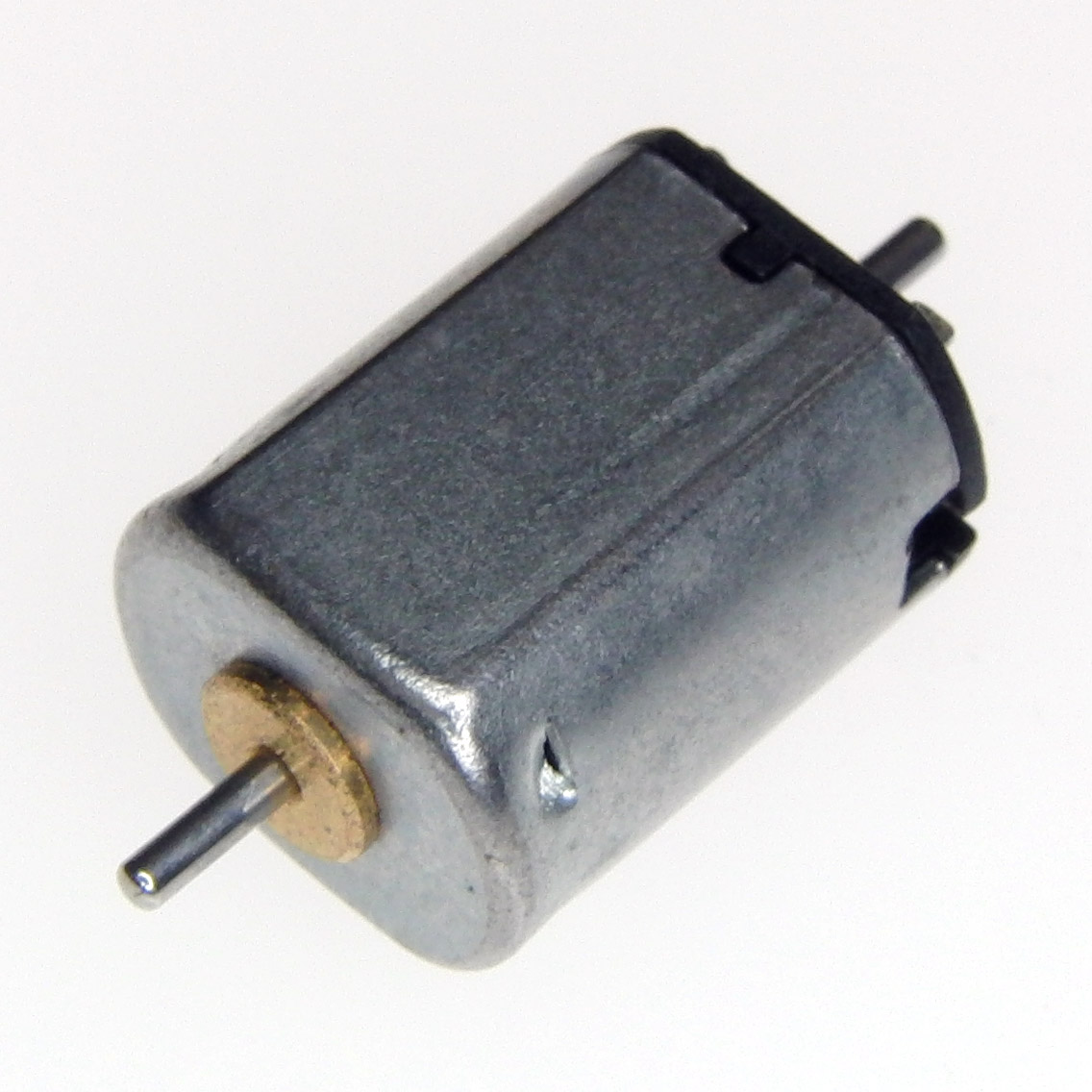

| 110-001 | 10mm DC Motor - 13mm Type | 0 | 8 weeks | Brushed | 10 | 12.5 | 3 | 15,500 | 75 | Precious Metal Brush | 1 | 4 | Not fitted | 400 | 0.1 | 12,500 | 140 | 1,070 | 8.7 | 221 | ||

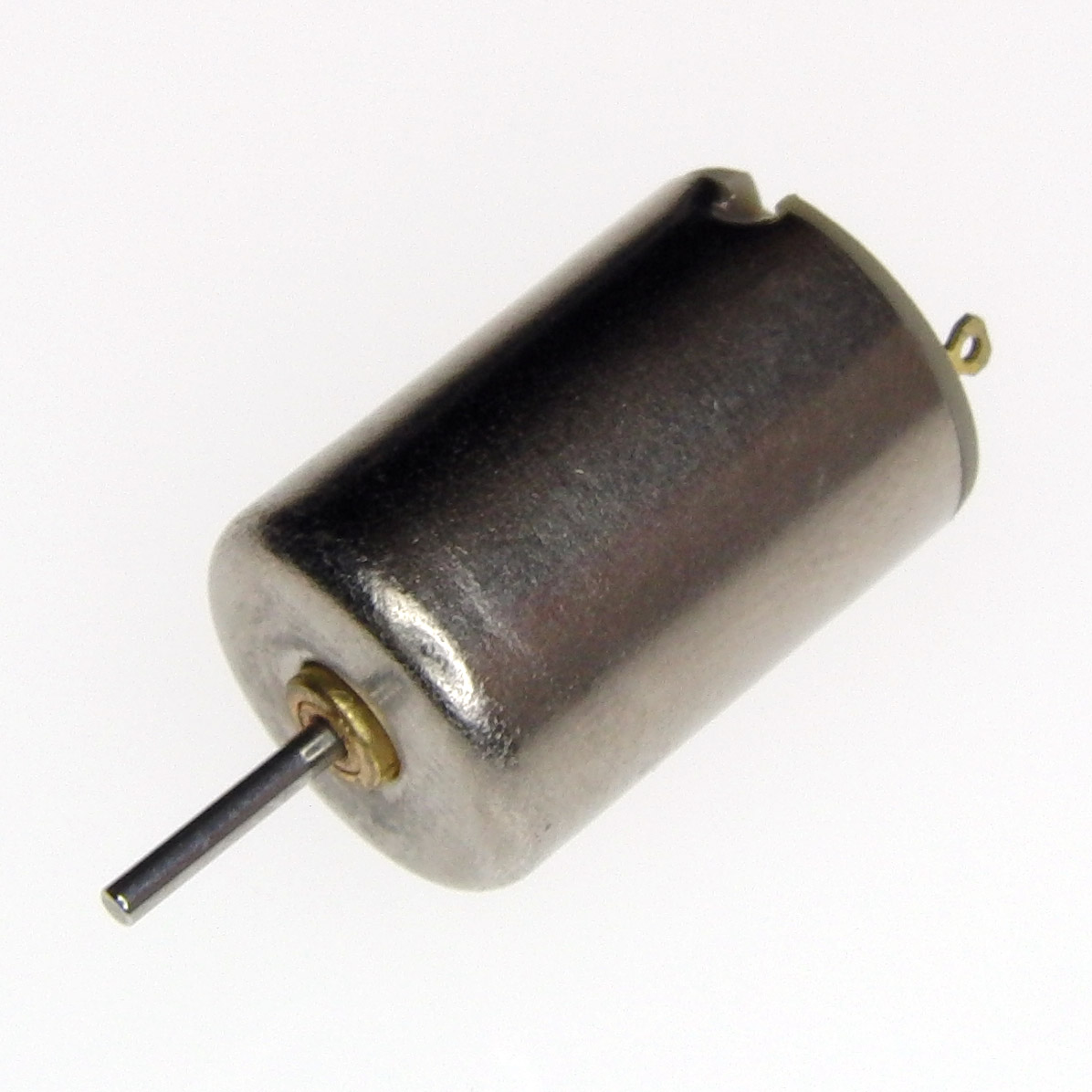

| 110-002 | 10mm DC Motor - 15mm Type | 0 | 8 weeks | Brushed | 10 | 15 | 1.5 | 10,400 | 100 | Precious Metal Brush | 1 | 4 | Not fitted | 750 | 0.2 | 7,250 | 280 | 405 | 2.4 | 181 | ||

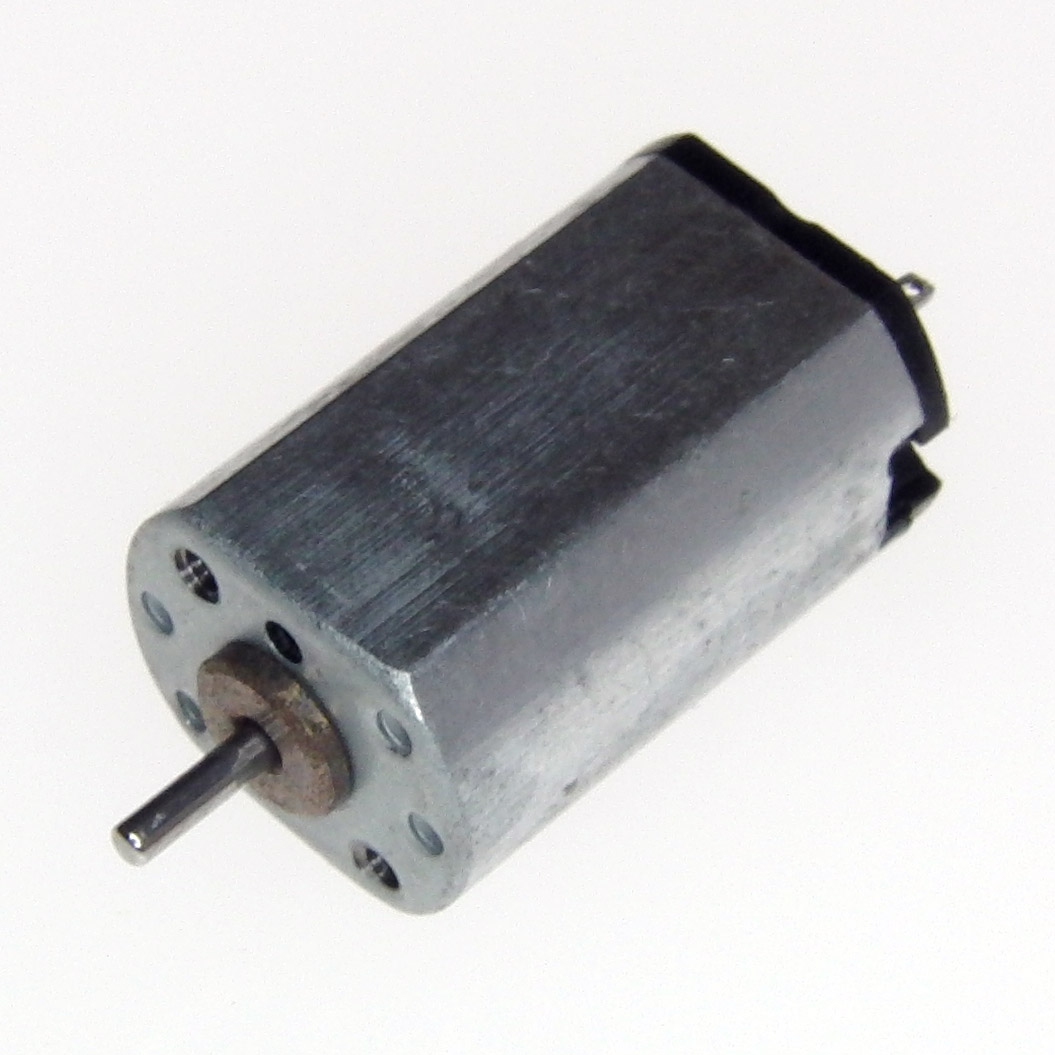

| 110-003 | 10mm DC Motor - 15mm Type | 0 | 8 weeks | Brushed | 10 | 15 | 1.3 | 9,500 | 65 | Precious Metal Brush | 1 | 6.5 | Not fitted | 380 | 0.1 | 5,600 | 160 | 19 | 3.4 | 92 | ||
| 112-001 | 12mm DC Motor - 20mm Type | 0 | 8 weeks | Brushed | 12 | 20 | 2.4 | 16,300 | 190 | Precious Metal Brush | 1.5 | 6 | Not fitted | 1,600 | 0.4 | 12,000 | 550 | 350 | 2 | 650 |
