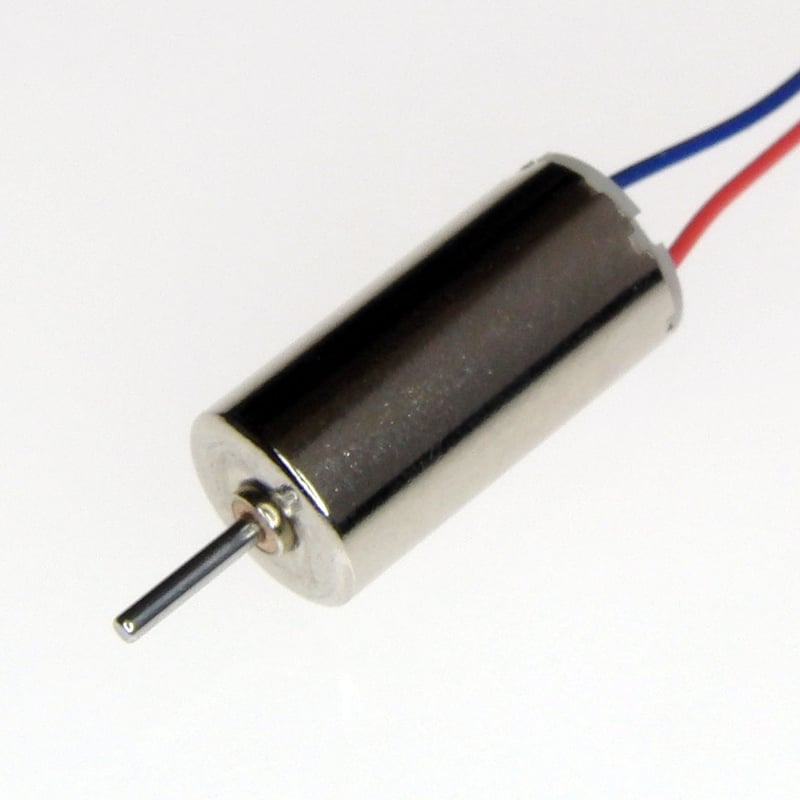

Model: 106-001
You need our support. We're here to help.
Motor products are difficult to understand, specify, validate and integrate into end application. The industry has no standards and suppliers typically offer only fragments of advice.
We know what you don't and can mitigate your motor design, manufacturing and supply risks.
Get in touch with our team today.
| Motor type | Brushed |
| Diameter(mm) | 6 mm |
| Length (mm) | 12.2 mm |
| Voltage(V) | 1.3 V |
| No load speed(rpm) | 21,700 rpm |
| No load current(mA) | 50 mA |
| Commutation | Precious Metal Brush |
| Shafts | 1 |
| Shaft diameter(mm) | 0.8 mm |
| Shaft length(mm) | 4.2 mm |
| Gearbox | Not fitted |
| Encoder | Not fitted |
| Housing material | Nickel plated steel |
| Leads | 50 mm x AWG32 |
| Rotation direction | CW |
| Max start current(mA) | 500 mA |
| Rated load(mNm) | 0.03 mNm |
| Rated load speed(rpm) | 17,800 rpm |
| Rated load current(mV) | 115 mV |
| Typical terminal resistance(Ω) | 22 Ω |
| Typical terminal inductance(mH) | 3.1 mH |
| Typical max output power(mW) | 102 mW |
