206-102 – 6mm DC Coreless Gearmotor
Coreless Gearmotor Ø6 x 16mm / planetary gearbox / precious metal brushes
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.
Samples for purchase
This part is available for immediate purchase, subject to stocks indicated, and priced by the volume discounts shown below.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 4 | — | US$ 10.71 |
| 5 - 9 | 5.42 % | US$ 10.13 |
| 10 - 24 | 12.98 % | US$ 9.32 |
| 25+ | 21.76 % | US$ 8.38 |
US$ 10.71
Current stock holding: 35 pcs in stock

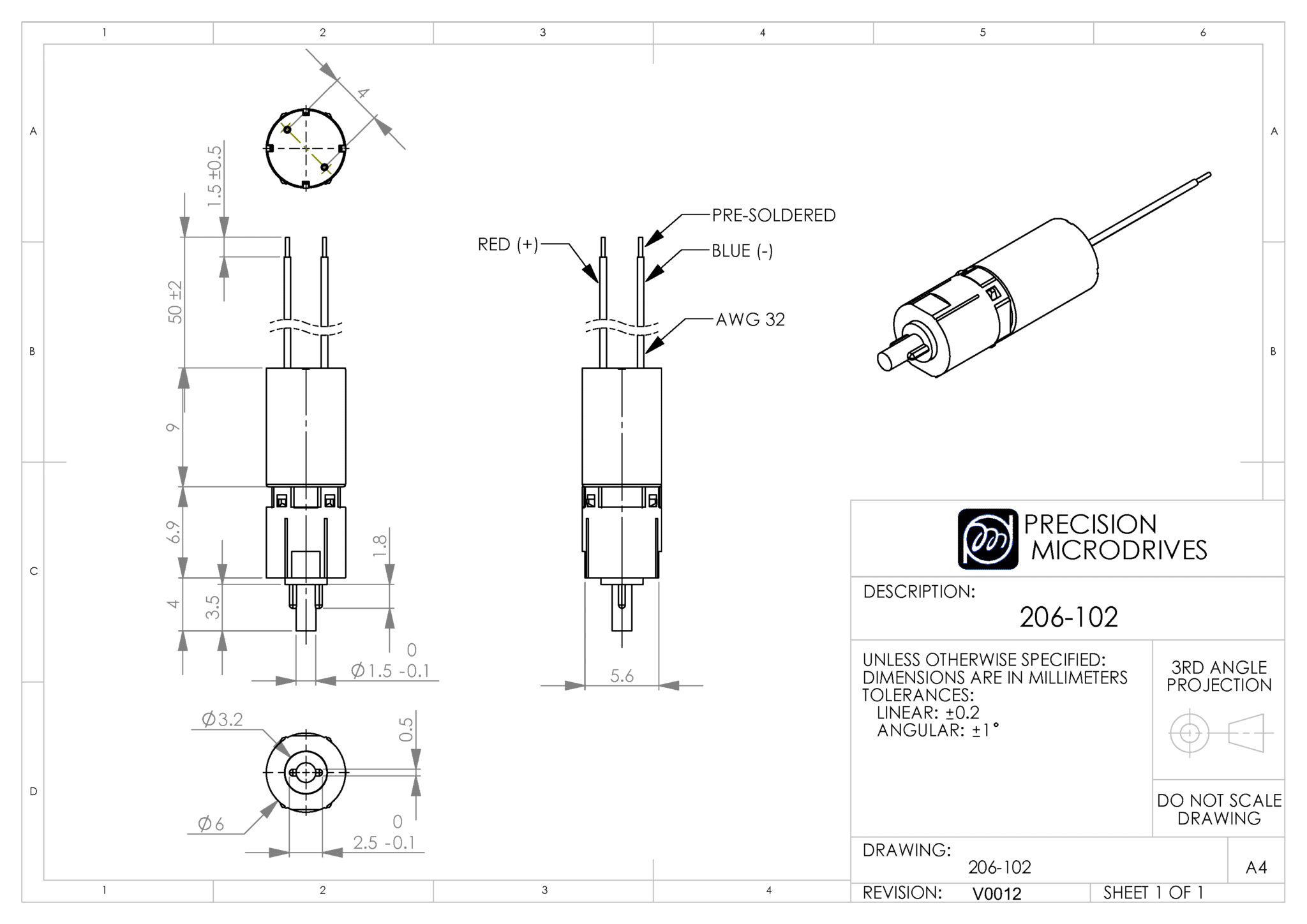

Drawing
Key Features
| Model No. | 206-102 | ||
| Gearbox Type | Planetary | ||
| Gearbox Orientation | Inline | ||
| Diameter | mm | 6 | |
| Length | mm | 15.8 | |
| Voltage | V | 3 | |
| Gear Ratio | 1: | 25 | |
| Nominal Torque | mNm | 0.2 | |
| Nominal Speed | rpm | 2000 | |
| Typical Power | mW | 250 | |
| Commutation | Precision metal brushes |
Design and accessories
| Availability | Samples Available | ||
| Motor Type | Brushed | ||
| Commutation | Precious metal brushes | ||
| Shafts | Single | ||
| Encoder | Not fitted | ||
| Gearbox | Planetary | ||
| Connections | Tinned | ||
| Cable Length | 50mm x AWG32 | ||
| Body diameter | mm | 6 | |
| Body length | mm | 15.8 | |
| Weight | g | 1.2 |
Performance characteristics
| Nominal voltage | V | 3.0 | |
| No load speed | rpm | 2 000 | |
| No load current | mA | 70 | |
| Nominal speed | rpm | 1 300 | |
| Nominal torque | mNm | 0.2 | |
| Nominal current | mA | 100 | |
| Stall torque | mNm | 3.4 | |
| Stall current | A | 0.33 | |
| Maximum efficiency | % | 22 |
Winding and enviromental characteristics
| Terminal resistance | Ω | 7.8 | |
| Terminal inductance | uH | 27 | |
| Max. operating temperature | °C | 70 | |
| Min. operating temperature | °C | -20 |

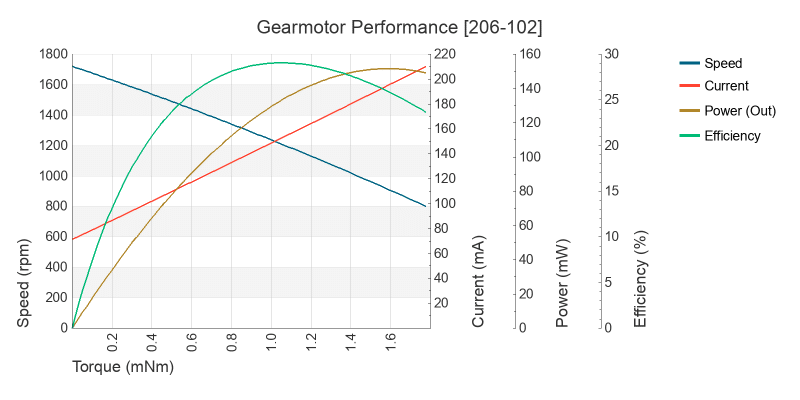

Operating range (based on on ambient 25°C)
Parts with a similar envelope / form factor but different windings and performance can be found in the 'related products' section below.
