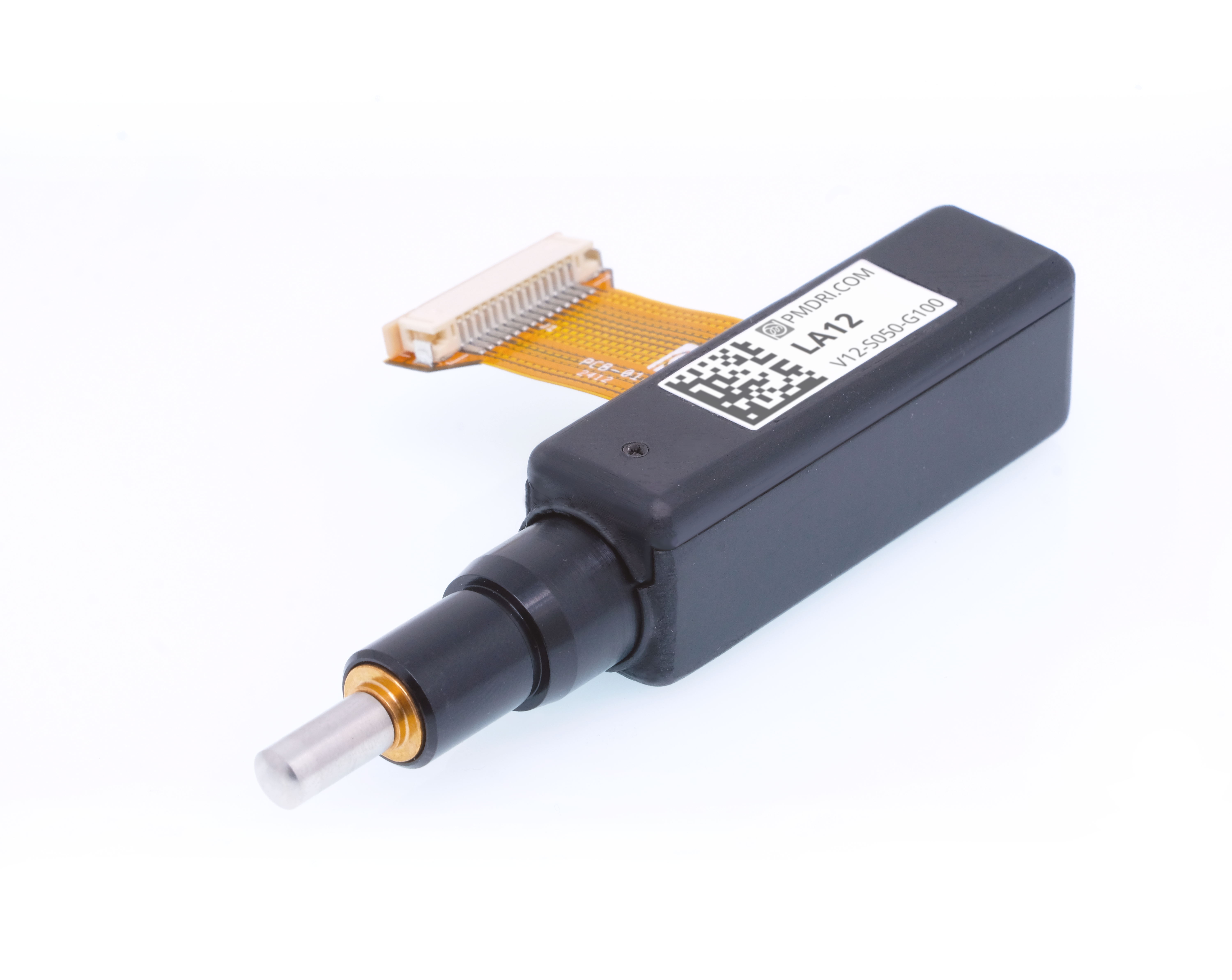

Linear Actuator Brushed (precious metal brushes)
Product details
- Linear Actuator Brushed (precious metal brushes)
- LA12-V09-S010-G010
- Product category
- Availability
- 8 weeks
- Datasheet
Key features
| Motor type | Brushed |
| Length (mm) | 68.5 mm |
| Stroke length(mm) | 10 mm |
| Voltage(V) | 9 V |
| No load current(mA) | 155 mA |
| Nominal current(A) | 0.3 A |
| Commutation | Precious metal brush |
| Gear ratio(:1) | 10 :1 |
Design and accessories
| Connections | Molex 0522711479 |
| Body material | Anodized aluminium alloy |
| Weight (g) | 38 g |
| Encoder linear resolution(um / count) | 4.167 um / count |
| Repeatability(um) | 80 um |
| Home sensor position | Fully retracted |
| Home sensor technology | Magnetic |
| Encoder technology | Magnetic |
| Max. backlash(mm) | 0.2 mm |
| Max. axial load(N) | 80 N |
Performance characteristics
| Stall current(A) | 0.9 A |
| Terminal resistance(Ω) | 7.5 Ω |
| Terminal inductance(mH) | 1.25 mH |
| Max. speed (no load)(mm/s) | 20.7 mm/s |
| Nominal force(N) | 8 N |
| Nominal speed (at nominal force)(mm/s) | 15.8 mm/s |
Motor body characteristics
| Min operating temp(°C) | -10 °C |
| Max operating temp(°C) | 50 °C |
