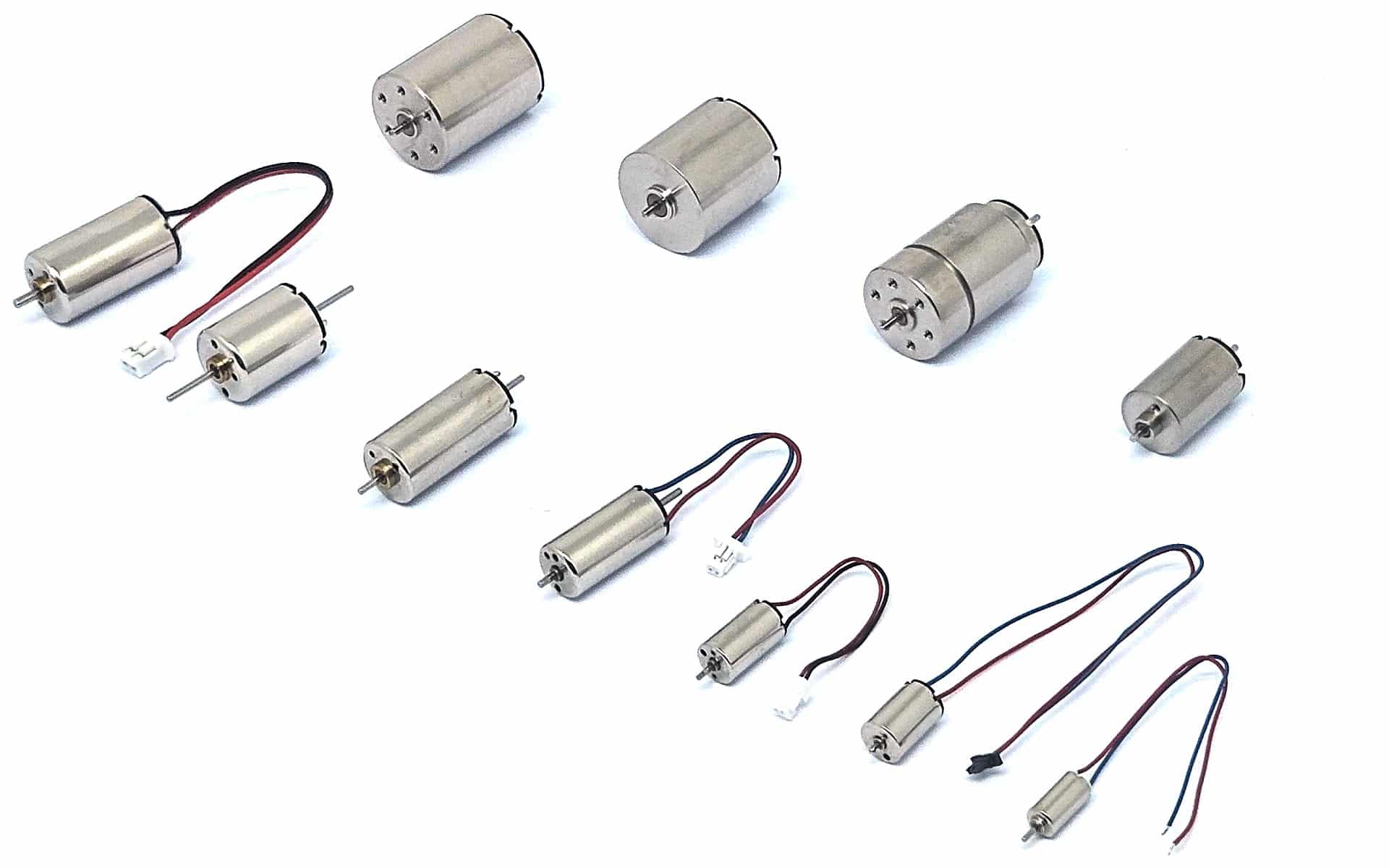

A wide range of high-quality, and cost-effective, sub-Ø20 mm coreless DC motors, with optional gearboxes and encoders.
We offer a comprehensive range of DC coreless motors with precious metal brushes, matching gearboxes, and encoders. Our motors feature high density windings, neodymium alloy magnets, CNC or stamped enclosures, and preloaded ball bearings. We design matching driver and controller solutions to your application requirements, and offer simulated application validation and lifetime testing services.
27 products in this category

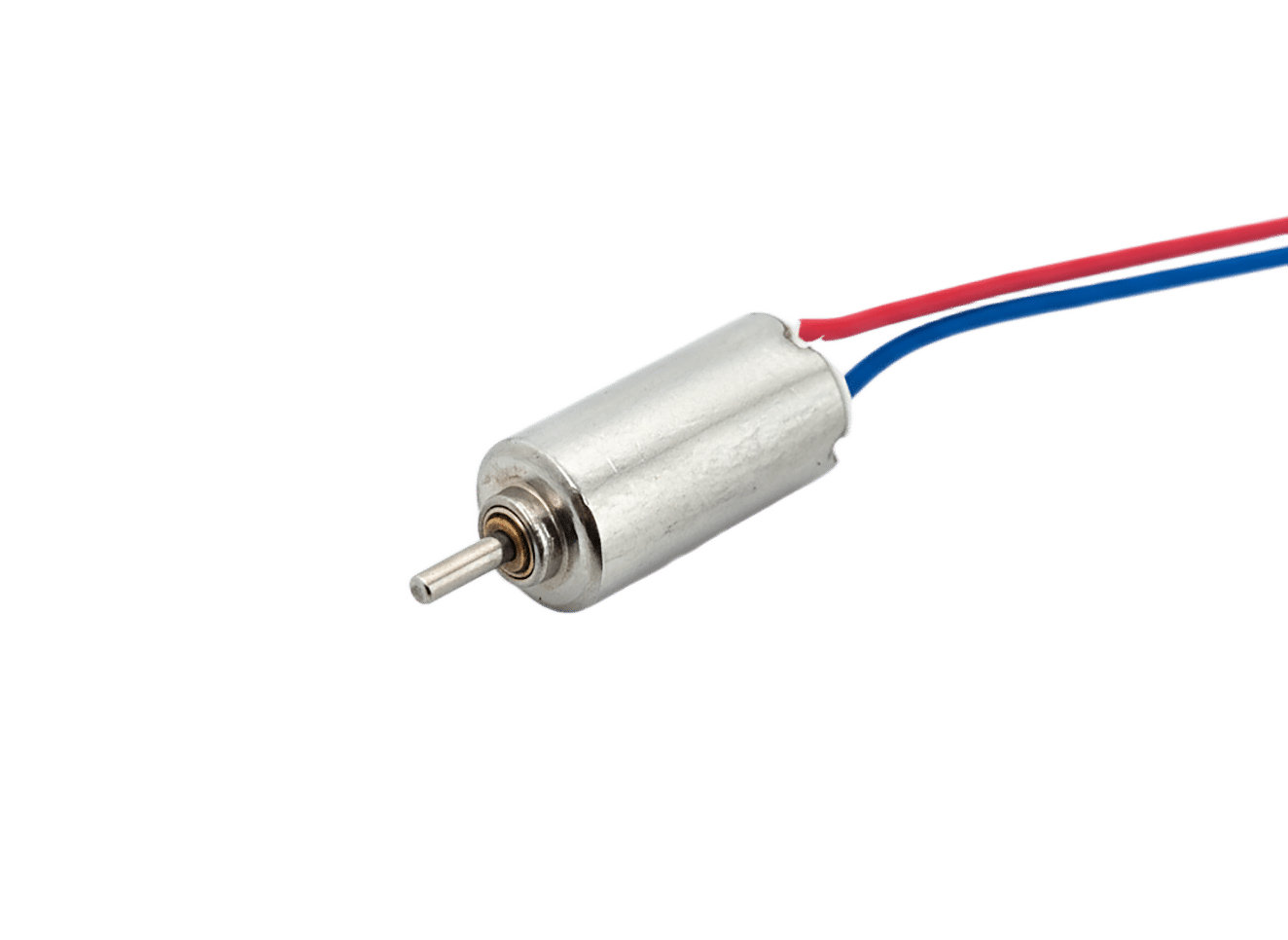

| 104-008 | 4mm Coreless Motor | 0 | 8 weeks | Brushed | 4.05 | 8.1 | 2.4 | 54,480 | 0.017 | 0.03 | 29,625 | 0.106 | Precious metal brushes | 60 mm x AWG32 | 0.213 | 11.3 | 34 | ||
| 104-10J | 4mm Coreless Motor | 0 | 8 weeks | Brushed | 4.05 | 8.1 | 3 | 51,500 | 0.011 | 0.03 | 25,440 | 0.08 | Precious metal brushes | 60 mm x AWG32 | 0.144 | 20.8 | 62 | ||
| 104-10L | 4mm Coreless Motor | 0 | 8 weeks | Brushed | 4.05 | 8.1 | 3.7 | 54,000 | 0.009 | 0.03 | 24,580 | 0.066 | Precious metal brushes | 60 mm x AWG32 | 0.114 | 32.4 | 97 | ||

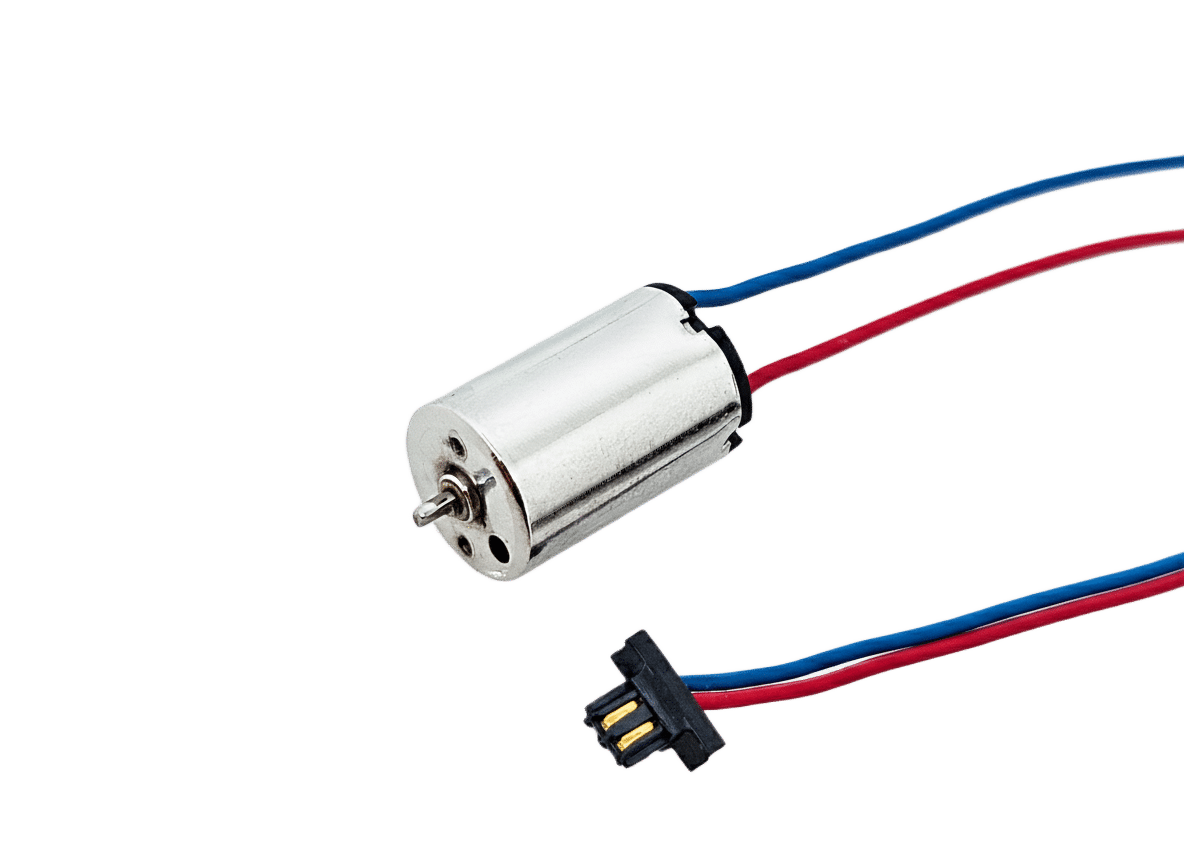

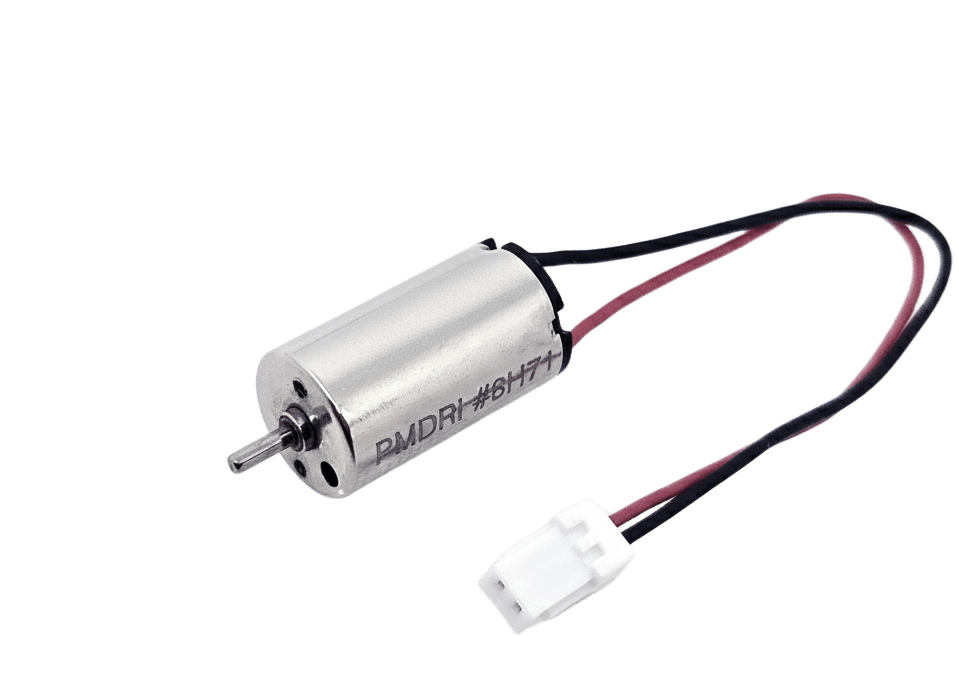

| 106-10C | 6mm Coreless Motor | 0 | 8 weeks | Brushed | 6 | 10.8 | 3 | 34,330 | 0.016 | 0.12 | 21,360 | 0.17 | Precious metal brushes | 47 mm x AWG32 | 0.625 | 7.2 | 51 | ||
| 106-10E | 6mm Coreless Motor | 0 | 8 weeks | Brushed | 6 | 9.3 | 5 | 30,800 | 0.01 | 0.08 | 11,700 | 0.065 | Precious metal brushes | 90 mm x AWG32 | 0.1 | 52.2 | 205 | ||
| 106-10F | 6mm Coreless Motor | 0 | 8 weeks | Brushed | 6 | 9.3 | 5 | 30,800 | 0.01 | 0.08 | 11,700 | 0.065 | Precious metal brushes | 90 mm x AWG32 | 0.1 | 52.2 | 205 | ||

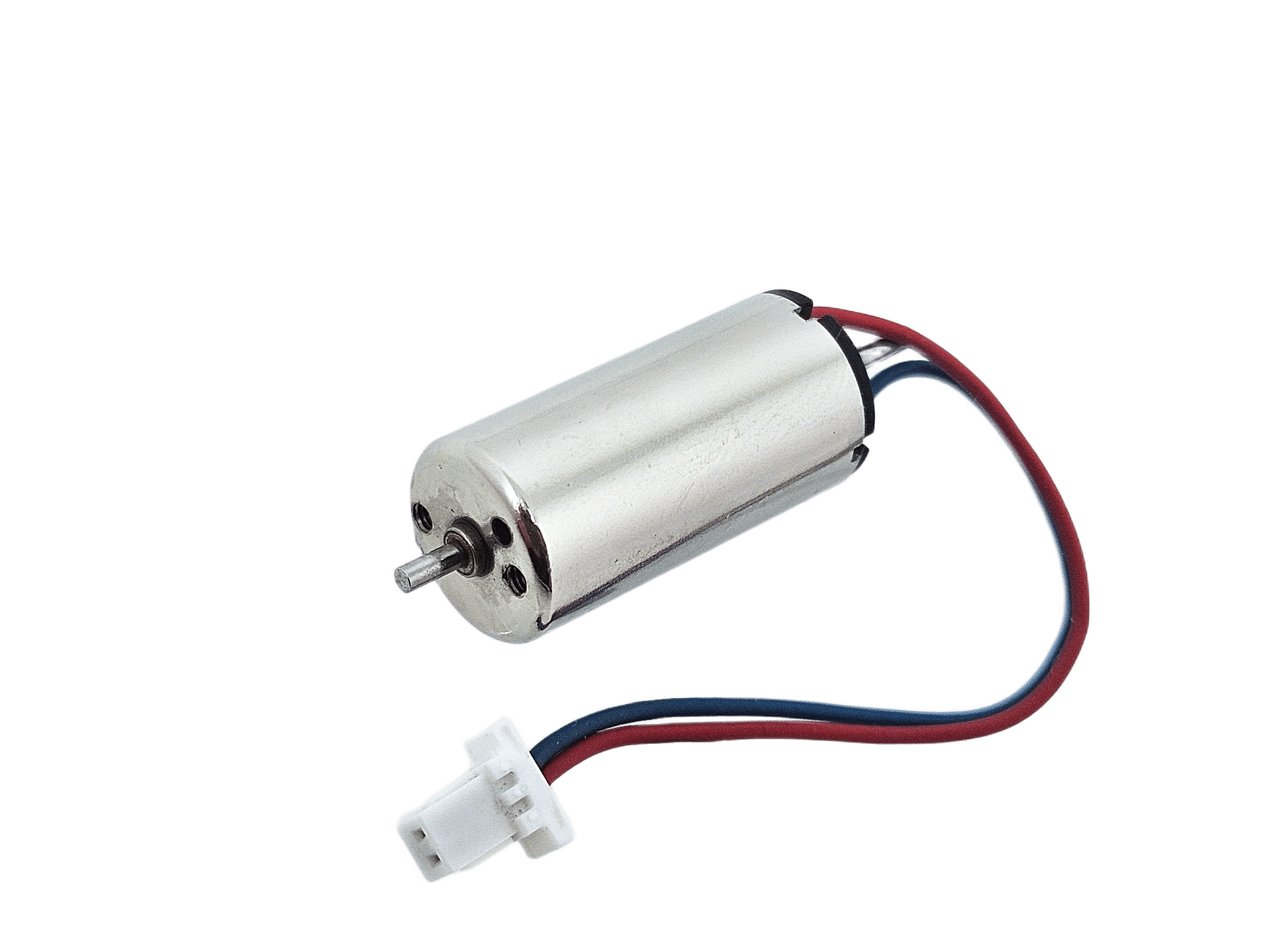

| 108-10F | 8mm Coreless Motor | 0 | 8 weeks | Brushed | 8.1 | 16.8 | 3 | 18,050 | 0.027 | 0.5 | 8,710 | 0.37 | Precious metal brushes | 45 mm x AWG32 | 0.685 | 4.4 | 50 | ||
| 108-201 | 8mm Coreless Motor | 0 | 8 weeks | Brushed | 8.1 | 16.8 | 4.5 | 18,100 | 0.017 | 0.5 | 8,630 | 0.245 | Precious metal brushes | 4 5mm x AWG32 | 0.45 | 10 | 115 | ||
| 108-400 | 8mm Coreless Motor | 0 | 8 weeks | Brushed | 8.1 | 16.8 | 6 | 15,560 | 0.018 | 0.6 | 8,855 | 0.19 | Precious metal brushes | 45 mm x AWG32 | 0.42 | 14.3 | 164 | ||

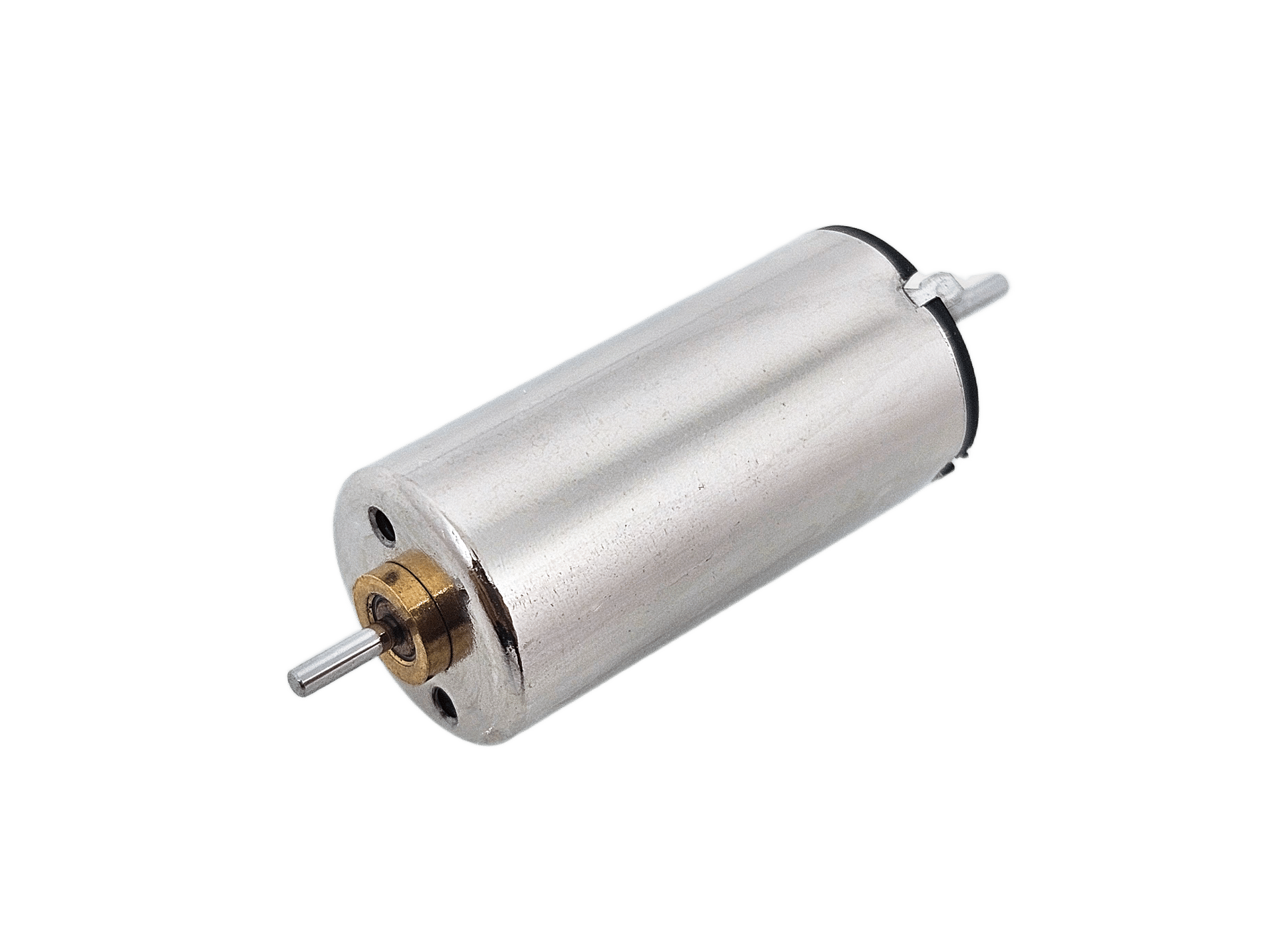

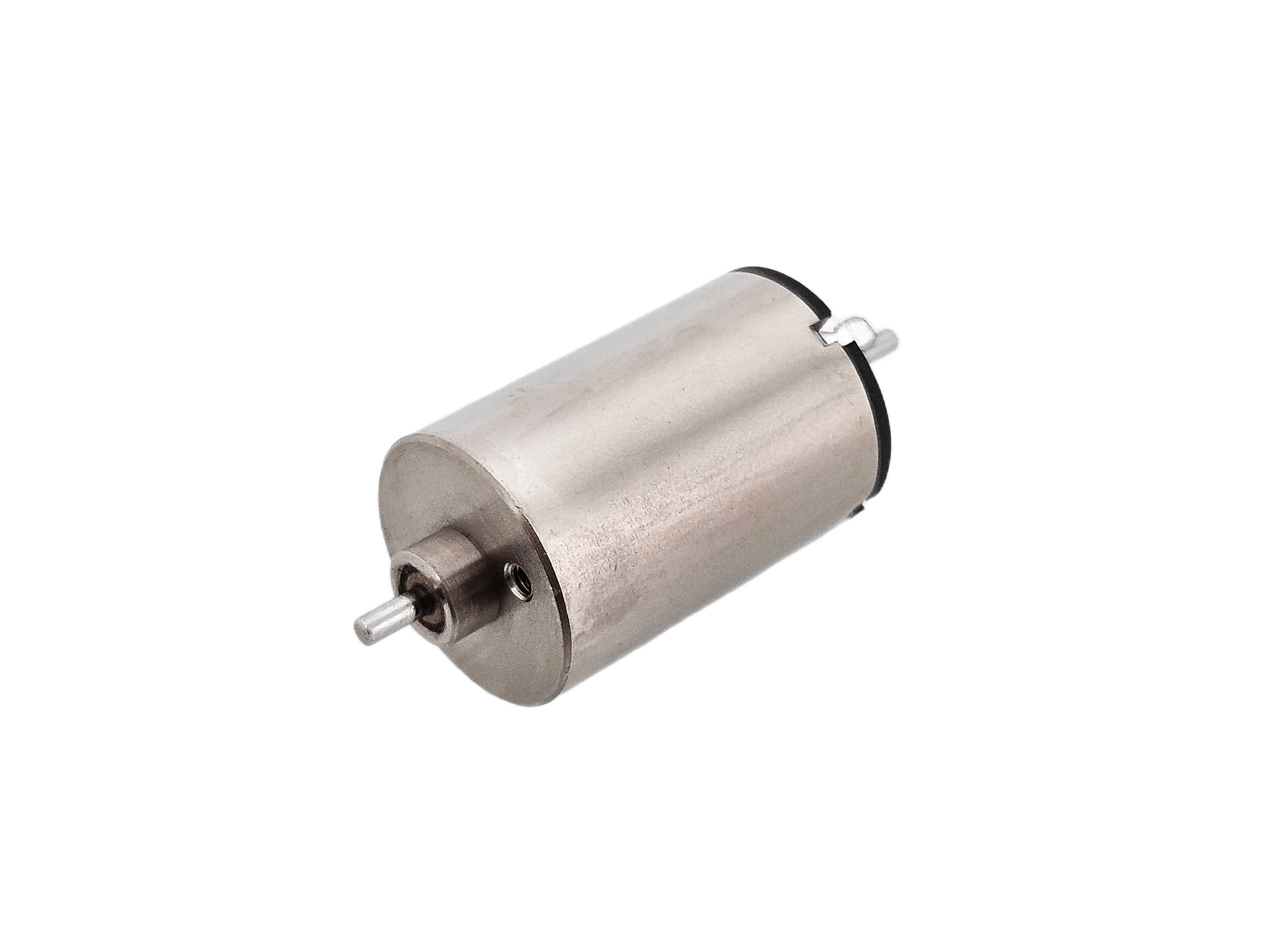

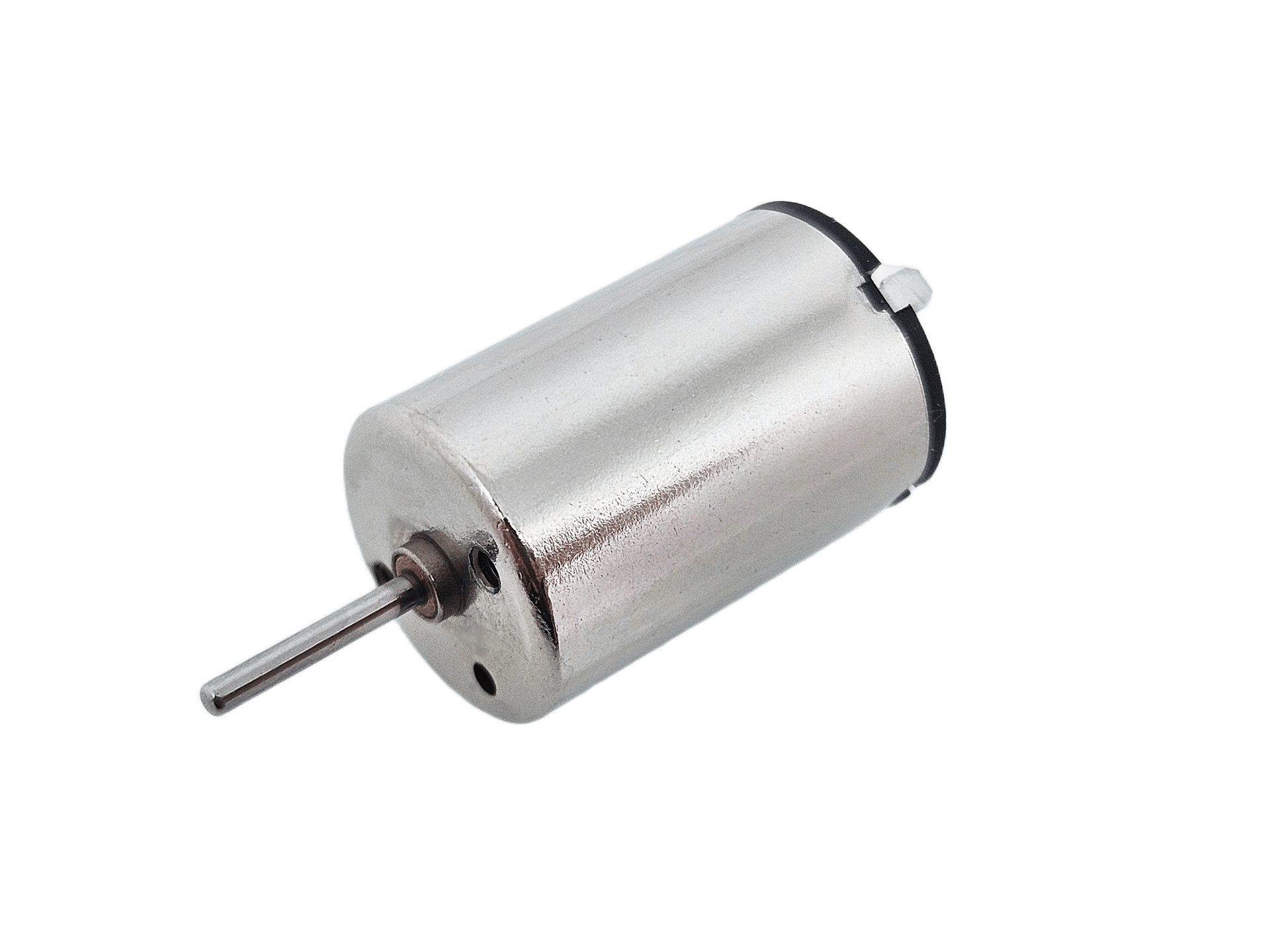

| 110-108 | 10mm Coreless Motor | 0 | 8 weeks | Brushed | 10 | 15 | 8 | 18,100 | 0.027 | 0.7 | 13,695 | 0.215 | Precious metal brushes | Not fitted | 0.785 | 10.2 | 185 | ||
| 110-109 | 10mm Coreless Motor | 0 | 8 weeks | Brushed | 10 | 20.7 | 3 | 21,100 | 0.08 | 1 | 18,220 | 0.89 | Precious metal brushes | Not fitted | 6 | 0.5 | 0.01 | ||
| 110-202 | 10mm Coreless Motor | 0 | 8 weeks | Brushed | 10 | 15 | 10 | 18,740 | 0.015 | 0.75 | 14,005 | 0.18 | Precious metal brushes | Not fitted | 0.665 | 15.1 | 265 | ||
| 110-203 | 10mm Coreless Motor | 0 | 8 weeks | Brushed | 10 | 15 | 6 | 18,250 | 0.035 | 0.75 | 14,090 | 0.3 | Precious metal brushes | Not fitted | 1.2 | 5 | 90 | ||
| 110-400 | 10mm Coreless Motor | 0 | 8 weeks | Brushed | 10 | 20.7 | 3 | 21,100 | 0.08 | 1 | 18,220 | 0.89 | Precious metal brushes | Not fitted | 6 | 0.5 | 0.01 | ||
| 110-600 | 10mm Coreless Motor | 0 | 8 weeks | Brushed | 10 | 20.7 | 18 | 21,660 | 0.012 | 1 | 18,460 | 0.15 | Precious metal brushes | Not fitted | 0.95 | 18.3 | 0.42 |
