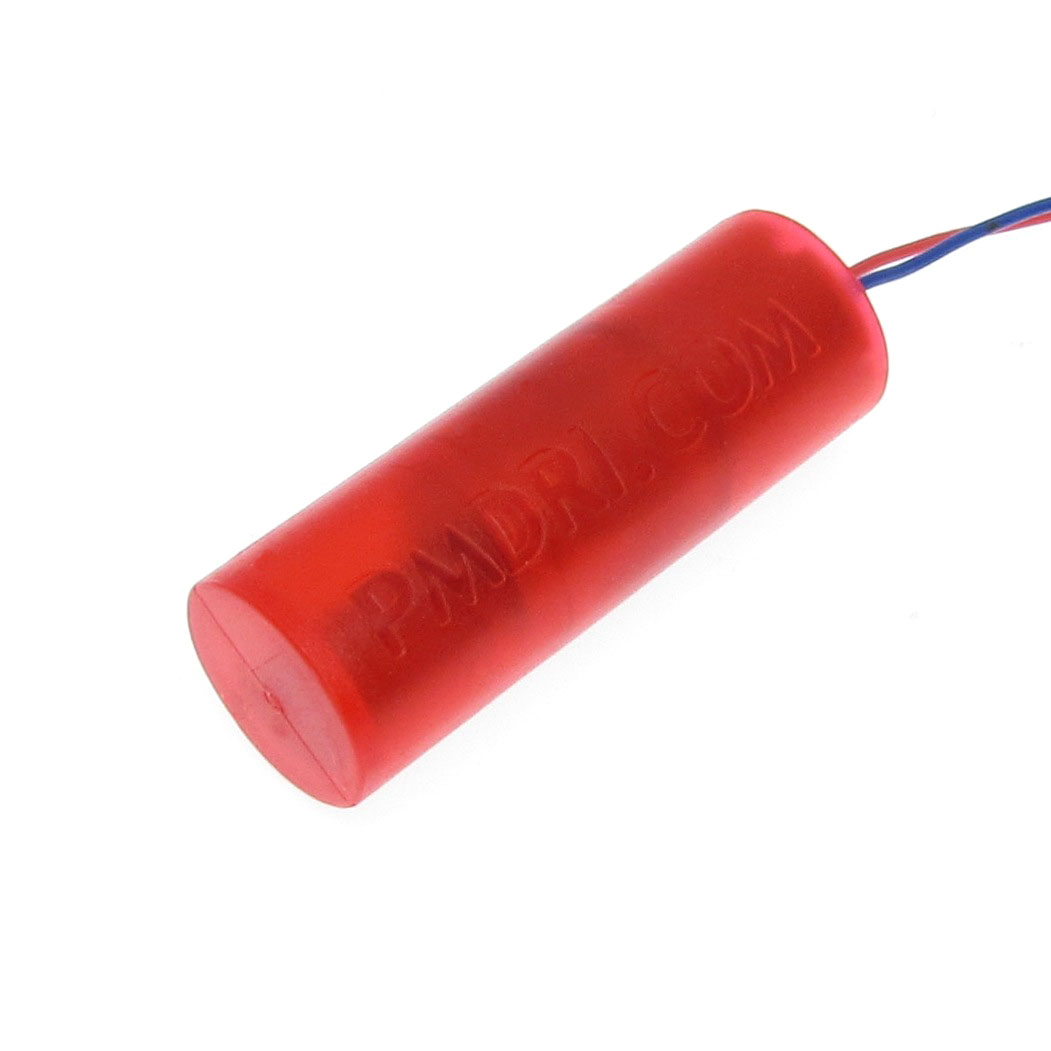

9mm Vibration Motor - 25mm Type

Model
307-103
Body Diameter Body Length Rated Operating Voltage Rated Vibration Speed Typical Rated Operating Current Typical Norm. Amplitude
8.7 mm 25.1 mm 3 V 13,800 rpm 100 mA 7 G

Physical Specification

Parameter Specification Condition
Body Diameter 8.7 mm Max body diameter or max face dimension where non-circular
Body Length 25.1 mm Excl. shafts, leads and terminals
Unit Weight 4.6 g

Construction Specification

Parameter Specification Condition
Motor Construction Coreless
Commutation Precious Metal Brush
No. of Poles 5
Bearing Type Sintered Bronze

Leads & Connectors Specification

Parameter Specification Condition
Lead Length 100 mm Lead lengths defined as total length or between motor and connector
Lead Strip Length 2 mm
Lead Wire Gauge 32 AWG
Lead Configuration Straight

Operational Specification

Parameter Specification Condition
Rated Operating Voltage 3 V
Rated Vibration Speed 13,800 rpm At rated voltage using the inertial test load
Max. Rated Operating Current 220 mA At rated voltage using the inertial test load
Max. Start Voltage 1.2 V Certified starting voltage. Measured at no load, where applicable
Rated Inertial Test Load 100 g Mass of rated load standard test sled
Max. Operating Voltage 3.7 V
Min. Vibration Amplitude 4.8 G Peak-to-peak value at rated voltage using the inertial test load
Max. Start Current 650 mA At rated voltage

Typical Performance Characteristics

Parameter Specification Condition
Typical Rated Operating Current 100 mA At rated voltage using the inertial test load
Typical Vibration Amplitude 7 G Peak-to-peak value at rated voltage using the inertial test load
Typical Start Current 525 mA At rated voltage
Typical Vibration Efficiency 23.5 G/W At rated voltage using the inertial test load
Typical Norm. Amplitude 7 G Peak-to-peak vibration amplitude normalised by the inertial test load at rated voltage
Typical Start Voltage 0.35 V Measured at no load, where applicable
Typical Terminal Resistance 5.7 Ohm
Typical Terminal Inductance 55 uH

Typical Haptic Characteristics

Parameter Specification Condition
Typical Lag Time 8 ms At rated voltage using the inertial test load
Typical Rise Time 28 ms At rated voltage using the inertial test load
Typical Stop Time 49 ms At rated voltage using the inertial test load
Typical Active Brake Time 21 ms Time taken from steady-state to 0.04 G under inverse polarity at max. voltage

Environmental Characteristics

Parameter Specification Condition
Max. Operating Temp. 60 Deg.C
Min. Operating Temp. -20 Deg.C
Currently Available Stock for Samples
95
Pricing for Sample Orders (GBP):
Qty Break Unit Price
1+ £6.36
10+ £6.25
20+ £6.12
50+ £5.79

Please contact us for a quotation for production quantities, customizations and integration.
