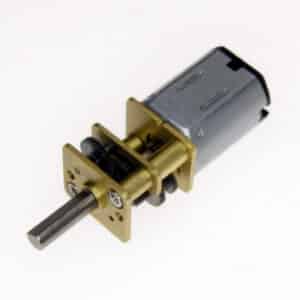

212-117 – 12mm DC Gearmotor
DC Gearmotor Ø12 x 27mm / spur metal gearbox / precious metal brushes
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.
Samples for purchase
This part is available for immediate purchase, subject to stocks indicated, and priced by the volume discounts shown below.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 4 | — | US$ 17.14 |
| 5 - 9 | 5.43 % | US$ 16.21 |
| 10 - 24 | 13.01 % | US$ 14.91 |
| 25+ | 21.76 % | US$ 13.41 |
US$ 17.14
Current stock holding: 165 pcs in stock

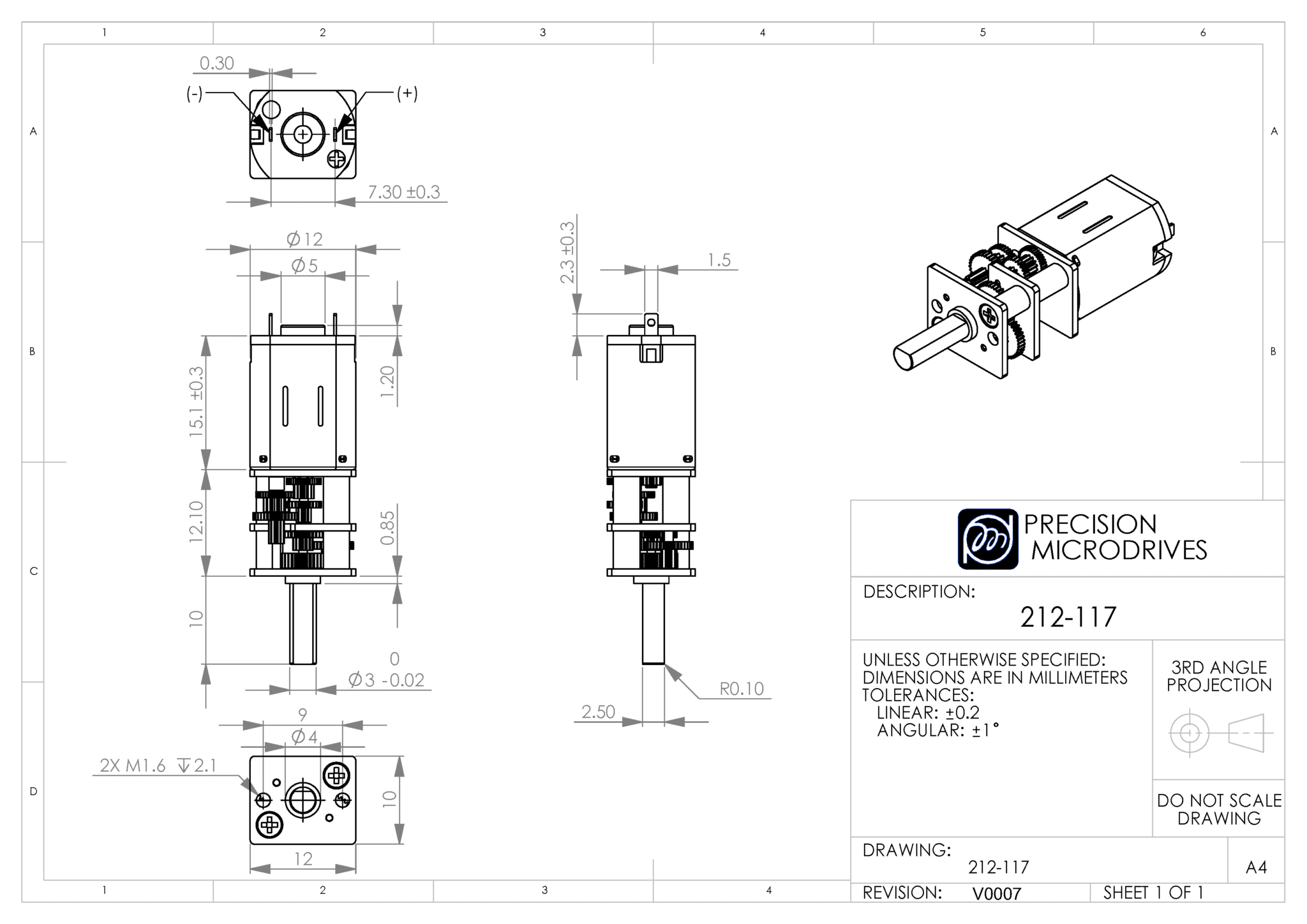

Drawing
Key Features
| Model No. | 212-117 | ||
| Gearbox Type | Spur | ||
| Gearbox Orientation | Inline | ||
| Diameter | mm | 12 | |
| Length | mm | 27 | |
| Voltage | V | 3 | |
| Gear Ratio | 1: | 1000 | |
| Nominal Torque | mNm | 100 | |
| Nominal Speed | rpm | 10 | |
| Typical Power | mW | 345 | |
| Commutation | Precision metal brushes |
Design and accessories
| Availability | Samples Available | ||
| Motor Type | Brushed | ||
| Commutation | Precious metal brushes | ||
| Shafts | Single | ||
| Encoder | Not fitted | ||
| Gearbox | Spur Metal | ||
| Connections | Terminals | ||
| Cable Length | N/A | ||
| Body diameter | mm | 12 | |
| Body length | mm | 27 | |
| Weight | g | 10.3 |
Performance characteristics
| Nominal voltage | V | 3 | |
| No load speed | rpm | 10 | |
| No load current | mA | 50 | |
| Nominal speed | rpm | 8 | |
| Nominal torque | mNm | 100 | |
| Nominal current | mA | 150 | |
| Stall torque | mNm | 290 | |
| Stall current | A | 0.47 | |
| Maximum efficiency | % | 24 |
Winding and enviromental characteristics
| Terminal resistance | Ω | 7 | |
| Terminal inductance | uH | 1300 | |
| Max. operating temperature | °C | 60 | |
| Min. operating temperature | °C | -10 |

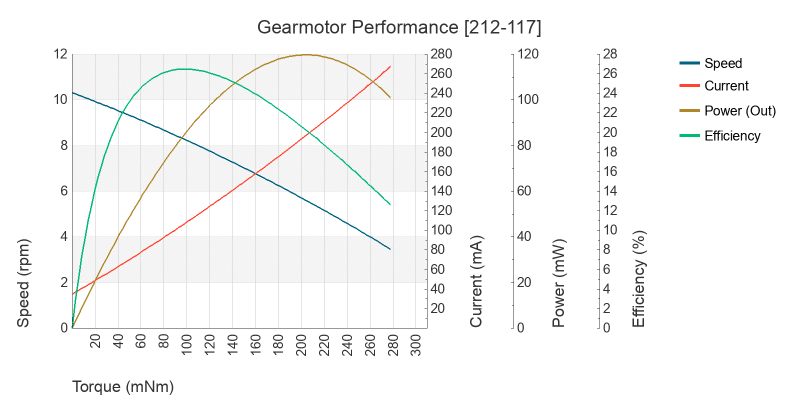

Operating range (based on on ambient 25°C)
Parts with a similar envelope / form factor but different windings and performance can be found in the 'related products' section below.
