Brushless motors

A wide range of high-quality, and cost-effective, sub-Ø60 mm brushless DC motors, with optional gearboxes and encoders.

We offer a comprehensive range of DC brushless motors in both slotted and slotless (high torque and negligible cogging) designs, with matching gearboxes, commutation sensors, and encoders. Motors feature high density windings, neodymium alloy magnets, aluminium enclosures, and preloaded ball bearings. We design matching driver and controller solutions to application requirements, and offer simulated application validation and lifetime testing services.

Brushless Motors

36 products in this category

Browse by Category

With selected rows

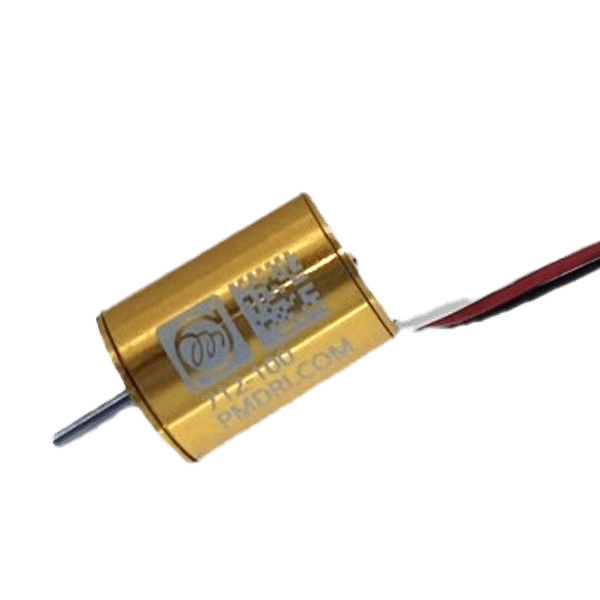

712-100	12mm Brushless Motor	0	8 weeks	Brushless	12	15	8	25,100	0.09	2.5	12,400	0.95	Sensorless	100mm x AWG28	1.8	4.45	0.08

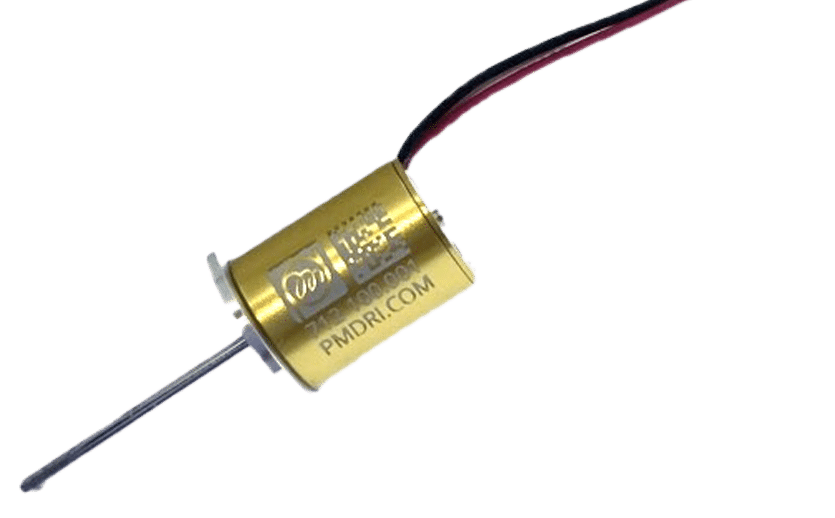

712-100.001	12mm Brushless Motor	95	Stocked design	Brushless	12	15.5	5	16,140	0.07	2.23	3,940	0.86	Sensorless	100mm x AWG28	1.12	4.45	0.09

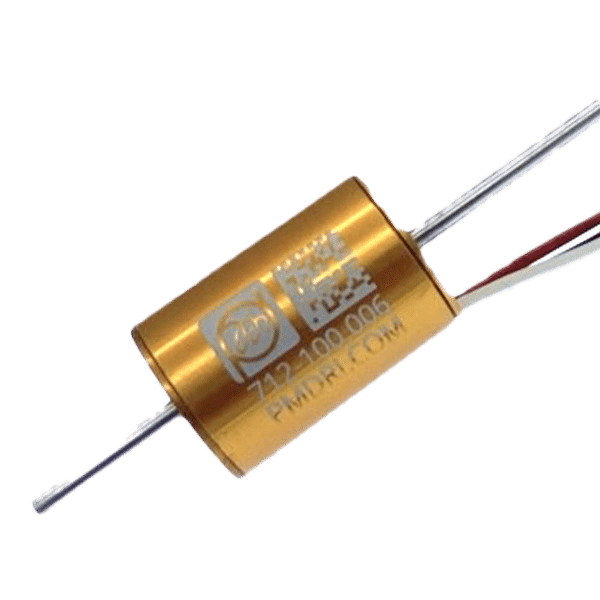

712-100.006	12mm Brushless Motor	0	8 weeks	Brushless	12	16.5	5	15,360	0.07	2.3	3,580	0.86	Sensorless	100mm x AWG28	1.1	4.55	0.1

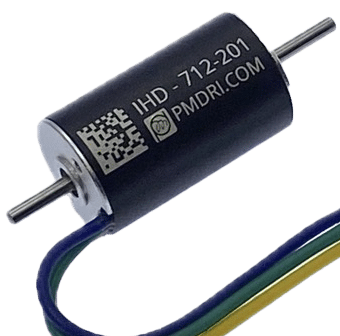

712-201	12mm Brushless Motor	6	Stocked design	Brushless	12	20	6	29,320	0.15	1.6	19,110	1.02	Sensorless	100mm x AWG28	2.64	2.27	0.03
712-202	12mm Brushless Motor	0	8 weeks	Brushless	12	30	6	22,810	0.19	2.8	18,910	1.34	Sensored / sensorless	100mm x AWG28	6.9	0.87	0.02

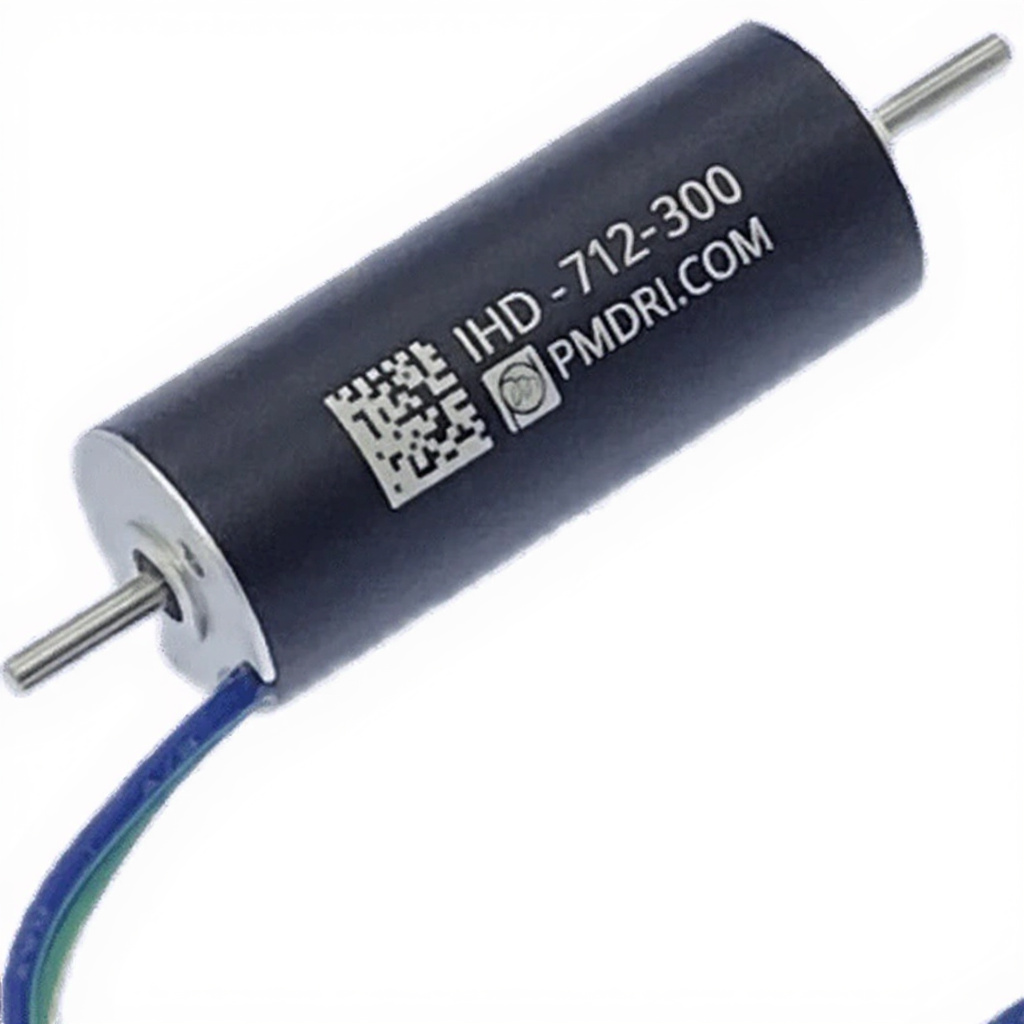

712-300	12mm Brushless Motor	0	8 weeks	Brushless	12	30	9	24,800	0.15	2.83	20,520	0.99	Sensored / sensorless	100mm x AWG28	5.03	1.79	0.04

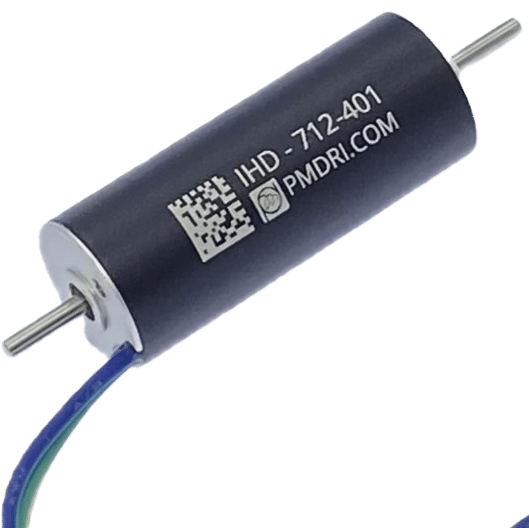

712-401	12mm Brushless Motor	23	Stocked design	Brushless	12	30	12	24,240	0.1	3.13	20,170	0.78	Sensorless	100mm x AWG28	4.14	2.9	0.09

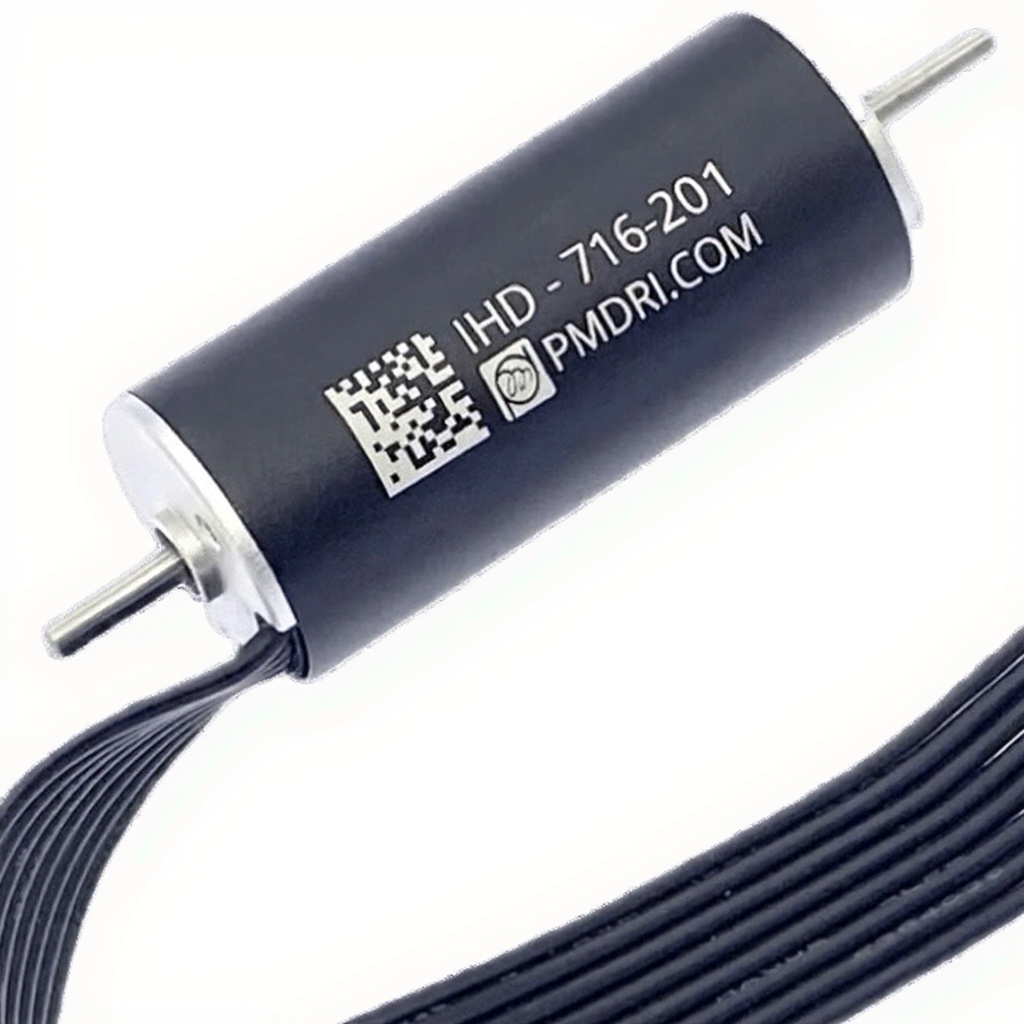

716-201	16mm Brushless Motor	0	8 weeks	Brushless	16	36	6	13,580	0.18	7.98	9,070	2.13	Sensored / sensorless	100mm x AWG26	6.06	0.99	0.04

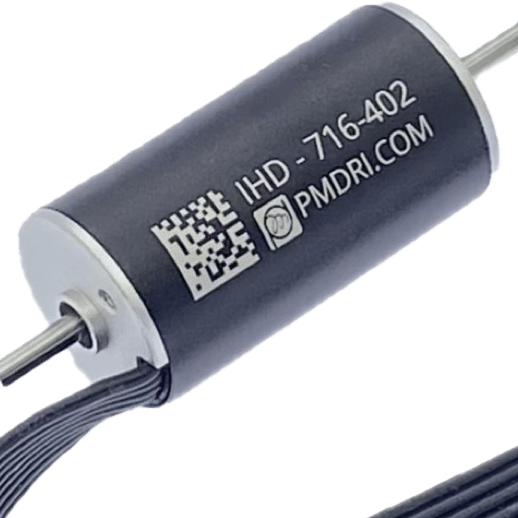

716-402	16mm Brushless Motor	19	Stocked design	Brushless	16	30	12	22,680	0.13	4.8	17,070	1.11	Digital hall	100mm x AWG26	4.1	2.93	0.11

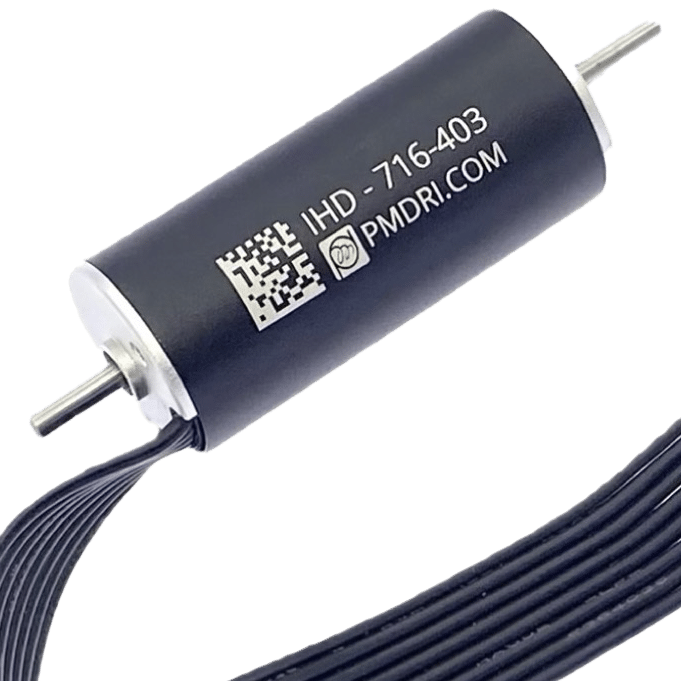

716-403	16mm Brushless Motor	14	Stocked design	Brushless	16	36	12	14,020	0.05	7.98	9,980	1.04	Digital hall	100mm x AWG26	3.48	3.45	0.18

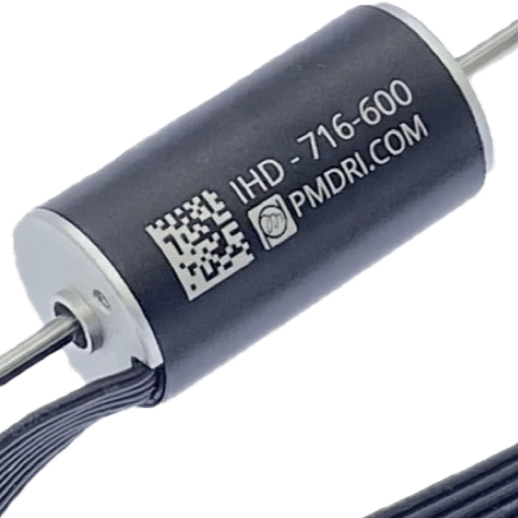

716-600	16mm Brushless Motor	0	8 weeks	Brushless	16	30	18	23,470	0.11	4.7	17,270	0.78	Sensored / sensorless	100mm x AWG26	2.65	6.8	0.23
716-802	16mm Brushless Motor	0	8 weeks	Brushless	16	36	24	13,780	0.07	9	9,990	0.63	Sensored / sensorless	100mm x AWG26	2.11	11.4	0.81

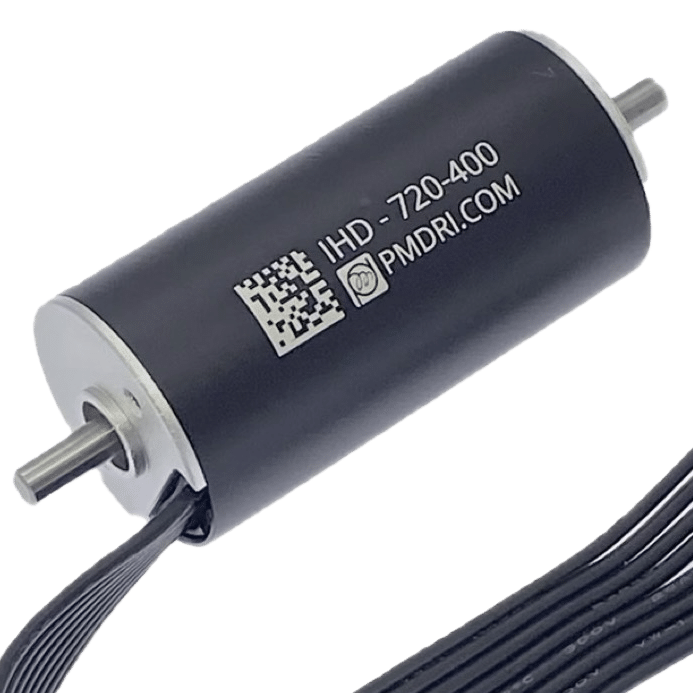

720-400	20mm Brushless Motor	17	Stocked design	Brushless	20	40	12	17,410	0.2	11.6	13,650	2	Digital hall	100mm x AWG26	8.57	1.4	0.09
720-600	20mm Brushless Motor	0	8 weeks	Brushless	20	40	18	18,270	0.18	13.95	15,220	1.69	Sensored / sensorless	100mm x AWG26	9.23	1.95	0.17

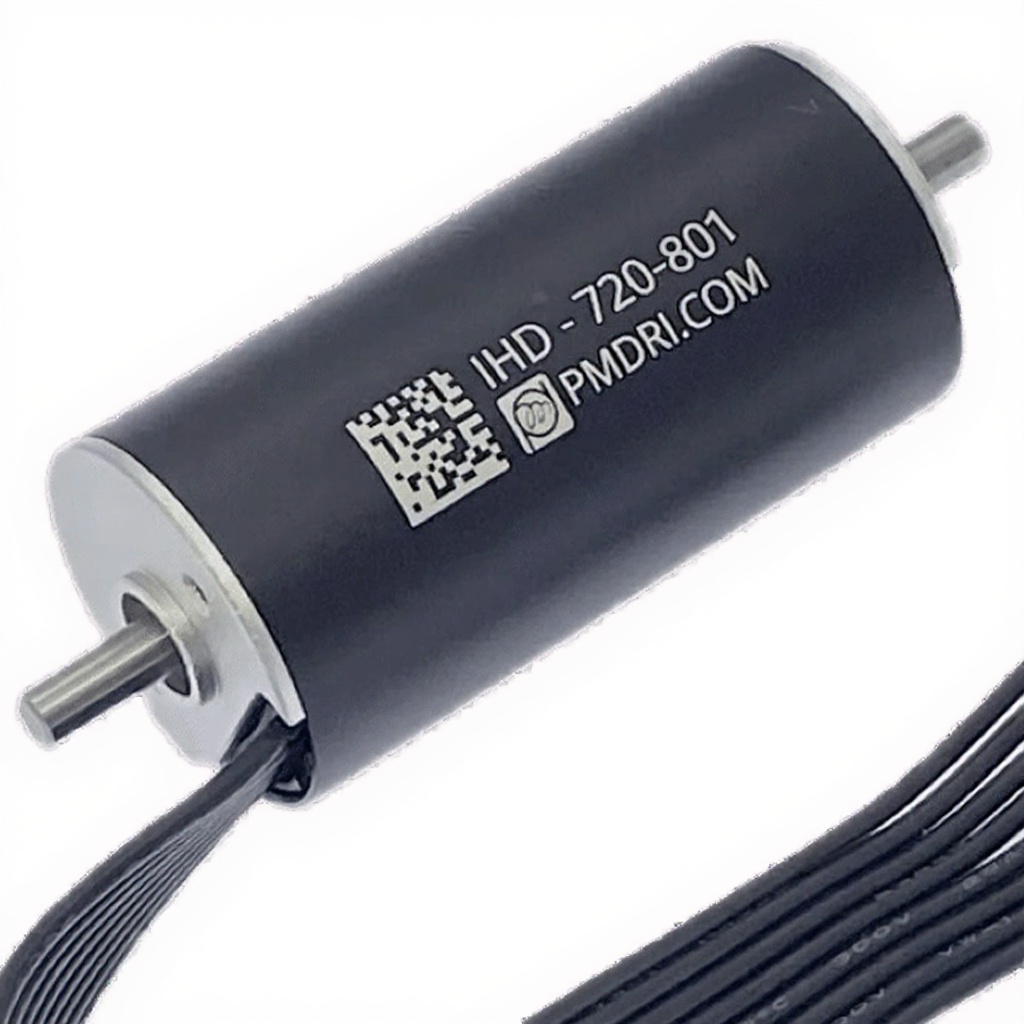

720-801	20mm Brushless Motor	0	8 weeks	Brushless	20	40	24	18,310	0.07	13.8	14,860	1.18	Sensored / sensorless	100mm x AWG26	6	4	0.31

Showing 1-15 of 36

Page 1 of 3

We design and manufacture DC brushless motors:

Frame diameters from Ø12mm to Ø35mm,
Slotless ‘in-runner’ and slotted ‘out-runner’ designs,
Winding voltages from 6v to 36v, with 12v windings available off-the-shelf for sampling,
A range matching planetary gearboxes with ratios from 1:4 to 1:3372,
A range of matching encoders providing ABN, and UWV outputs,
Integrated digital hall sensors on frame diameters above Ø16mm,

We also design and manufacture quick turnaround mechanisms using brushless motors:

Slider tables,
Ball screw and belt drive positioners,
Levers, cams and other slider arrangements,
Complex mechanisms: Fully bespoke ground-up designs for complex applications,

Contact our application engineering team to discuss your project support@precisionmicrodrives.com, or use the contact form below.
