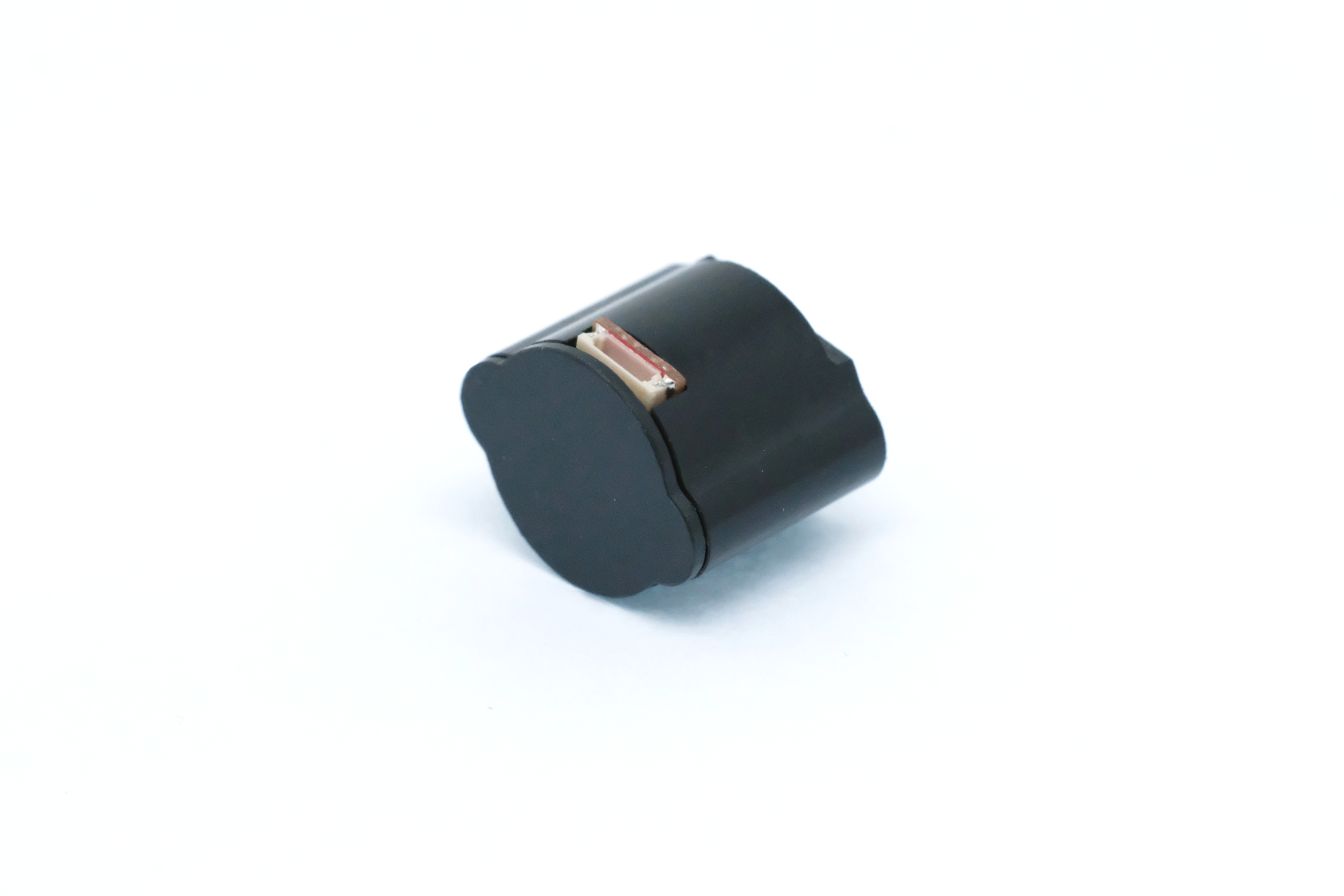

420-IMX - 20mm Incremental Magnetic Encoder
Product details
- 420-IMX - 20mm Incremental Magnetic Encoder
- 420-IMX
- Product category
- Availability
- 8 weeks
- Datasheet
Key features
| Diameter(mm) | 20 mm |
| Body length(mm) | Combination dependent |
| Encoder counts / revolution | 4,096 |
| Encoder type | Incremental |
| Number of channels | 3 |
| Index channel | Available |
Design and accessories
| Connections | JST SM05B-SURS-TF |
| Weight (g) | 2.5 g |
| Encoder technology | Magnetic |
| Output type | 2 channel quadrature |
| Supply voltage | 3.3 - 5.0 V |
Motor body characteristics
| Min operating temp(°C) | -30 °C |
| Max operating temp(°C) | 100 °C |
| Max permissable rotor speed(rpm) | 30,000 rpm |
Typical performance characteristics
| Typical operating current(mA) | 10 mA |
