Product Catalogue

Model No. 312-004

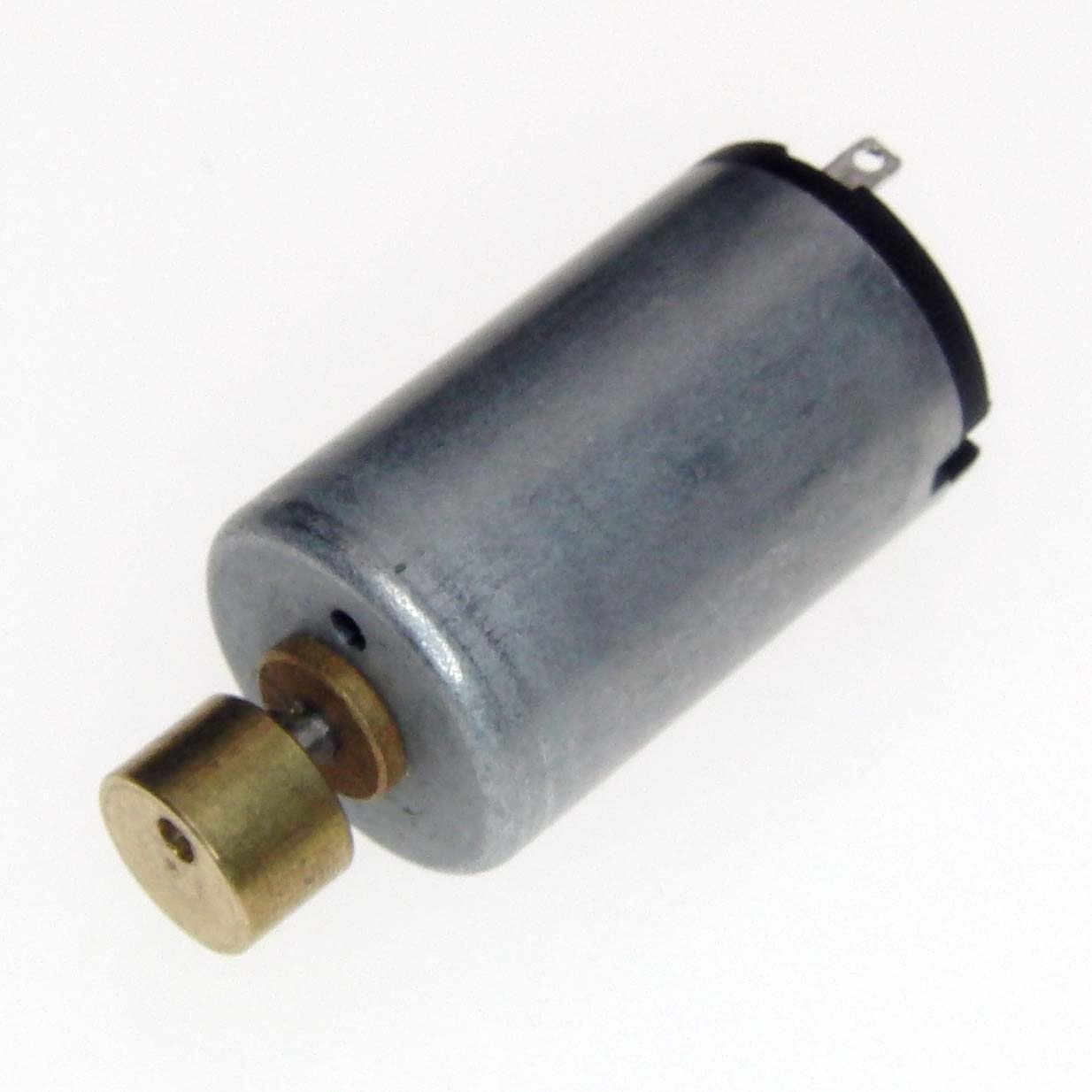

12mm Vibration Motor - 20mm Type

312-004 - iso
312-004 - side
312-004 - front
312-004 - backqtr
312-004 - back
312-004 - hand
12mm Vibration Motor - 20mm Type - Model No. 312-004

Development Samples

Sampling quantities for stocked models are available for ordering directly from us online.

Engineering & Manufacturing

Please contact one of our Sales Engineers for a quotation for production and consultation for customisation and integration services.

Pre-Production Product

This product is in our pre-production program and so stock is not yet available through this web store.

Please click the Request Quotation button, which will bring up the quotation window prepopulated with the part details.

Key Features

Body Diameter 12 mm [+/- 0.2]
Body Length 20 mm [+/- 0.2]
Ecc. Weight Radius 3 mm [+/- 0.2]
Ecc. Weight Length 4 mm [+/- 0.2]
Shaft Orientation Inline
Rated Operating Voltage 3 V
Rated Vibration Speed 13,000 rpm [+/- 2,600]
Typical Rated Operating Current 290 mA
Typical Norm. Amplitude 5 G

Dimensions

Performance
