Product Catalogue

Model No. 310-118.001

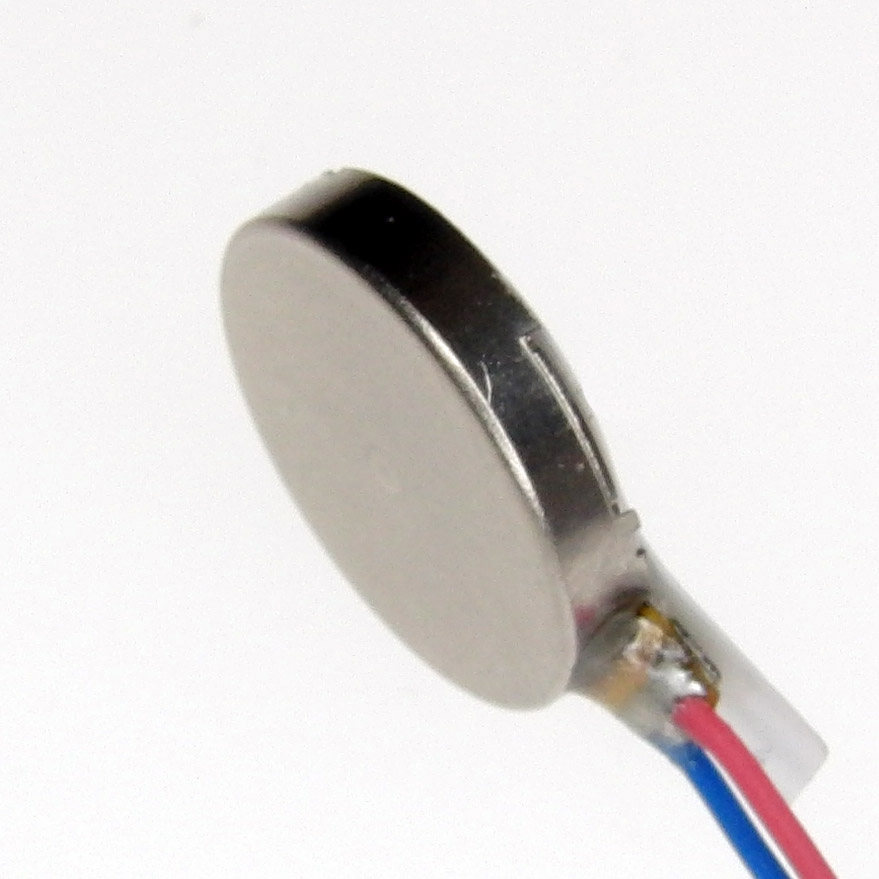

10mm Vibration Motor - 2mm Type

310-118.001 - iso
310-118.001 - side
310-118.001 - front
310-118.001 - backqtr
310-118.001 - back
310-118.001 - hand
10mm Vibration Motor - 2mm Type - Model No. 310-118.001

Customisation Showcase

This is an example of a part that has been customised to a requirement specification. Most of our projects cannont be show as they are confidential.

We offer a wide range of customisations from simple changes to fully bespoke mechanism design. Contact our engineers to discuss your requirement.

Customisation Showcase

This product is an example of how we customise products to meet a specific customer need.

From adding a connector to a full custom assembly or enclusure, we can support a customer's project. Ask us now.

Key Features

Body Diameter 10 mm [+/- 0.1]
Body Length 2.1 mm [+/- 0.1]
Connector Type JST Terminal SACH-003G-P0.2
Rated Operating Voltage 3 V
Rated Vibration Speed 14,000 rpm [+/- 3,500]
Typical Rated Operating Current 60 mA
Typical Norm. Amplitude 1.1 G

Dimensions

Performance


Graph Not Available
