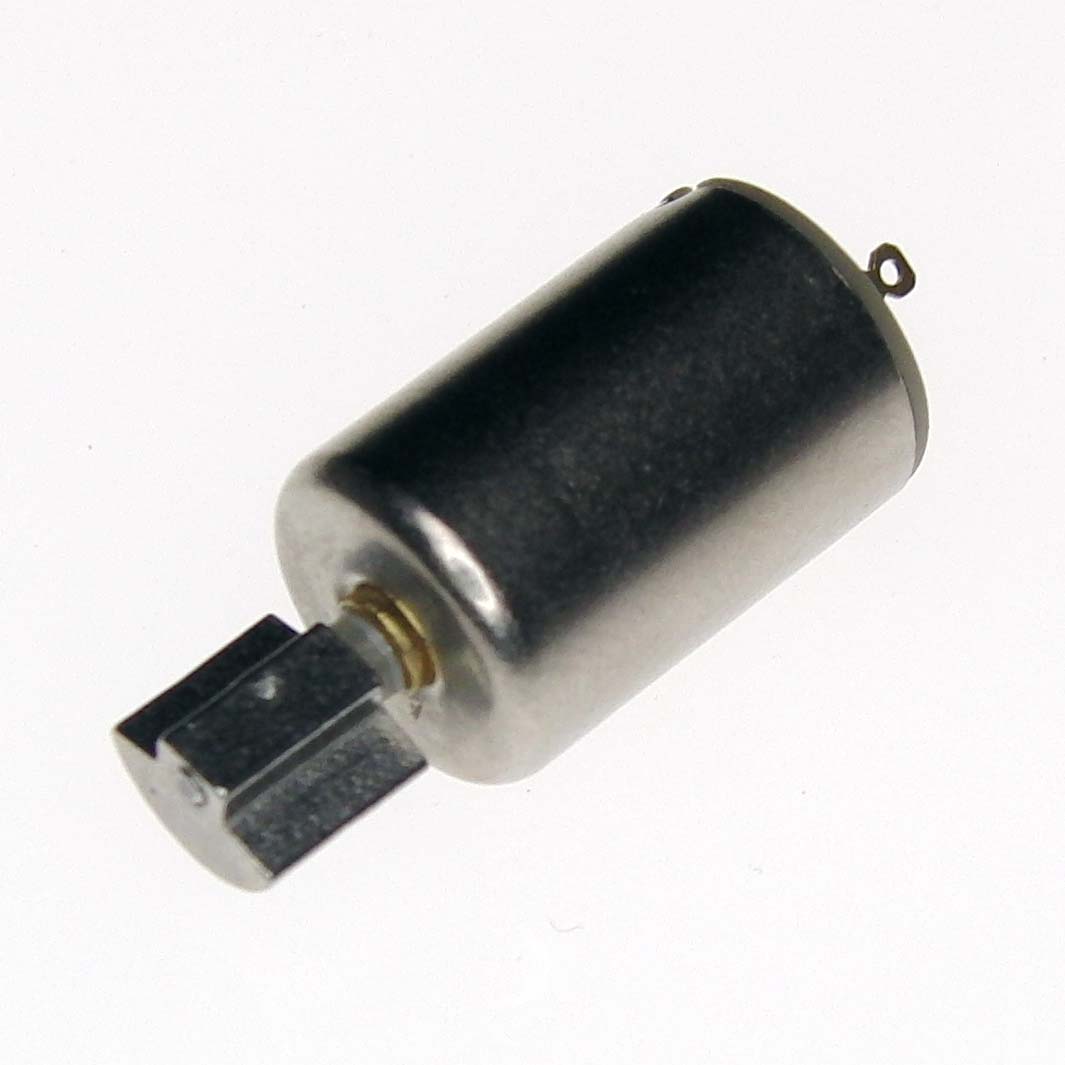

Model: 310-002
You need our support. We're here to help.
Motor products are difficult to understand, specify, validate and integrate into end application. The industry has no standards and suppliers typically offer only fragments of advice.
We know what you don't and can mitigate your motor design, manufacturing and supply risks.
Get in touch with our team today.
| Motor type | Brushed |
| Diameter(mm) | 10 mm |
| Length (mm) | 15 mm |
| Voltage(V) | 1.5 V |
| Nominal speed(rpm) | 12,500 rpm |
| Commutation | Precious Metal Brush |
| Typical normalised amplitude(G) | 6 G |
| Leads | Not fitted |
| Weight (g) | 6.5 g |
| Max start current(mA) | 1,200 mA |
| Max operating voltage(V) | 1.8 V |
| Max rated current(mA) | 600 mA |
| Rated inertial test load(g) | 250 g |
| Typical terminal resistance(Ω) | 6 Ω |
| Typical terminal inductance(mH) | 1 mH |
| Typical start voltage(V) | 0.2 V |
| Typical lag time(ms) | 15 ms |
| Typical rise time(ms) | 37 ms |
| Typical stop time(ms) | 58 ms |
| Typical active brake time(ms) | 22 ms |
