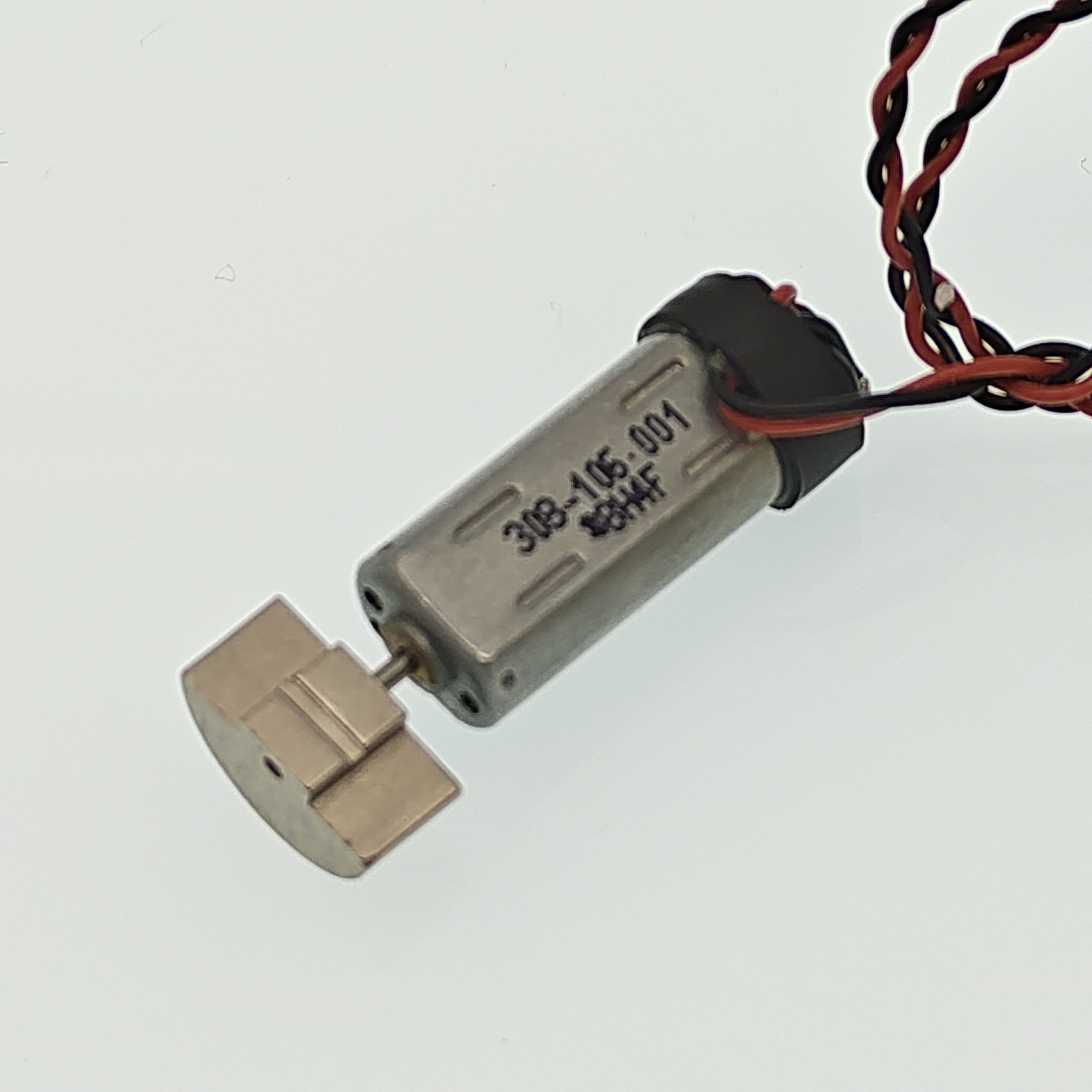

8mm Vibration Motor - 20mm Type
Model: 308-106.001
Product details
- 8mm Vibration Motor - 20mm Type
- 308-106.001
- Product category
- Availability
- 8 weeks
- Datasheet
Key features
| Motor type | Brushed |
| Diameter(mm) | 8 mm |
| Length (mm) | 20 mm |
| Voltage(V) | 3 V |
| Nominal speed(rpm) | 7,500 rpm |
| Commutation | Precious Metal Brush |
| Typical normalised amplitude(G) | 9.5 G |
Design and accessories
| Leads | 165 mm x AWG30 |
| Weight (g) | 5.9 g |
Performance characteristics
| Max start current(mA) | 550 mA |
| Max operating voltage(V) | 3 V |
| Max rated current(mA) | 290 mA |
| Rated inertial test load(g) | 100 g |
Typical performance characteristics
| Typical terminal resistance(Ω) | 700 Ω |
| Typical terminal inductance(mH) | 6.5 mH |
| Typical lag time(ms) | 15 ms |
| Typical rise time(ms) | 70 ms |
| Typical stop time(ms) | 170 ms |
| Typical active brake time(ms) | 54 ms |
