Model No. 308-102

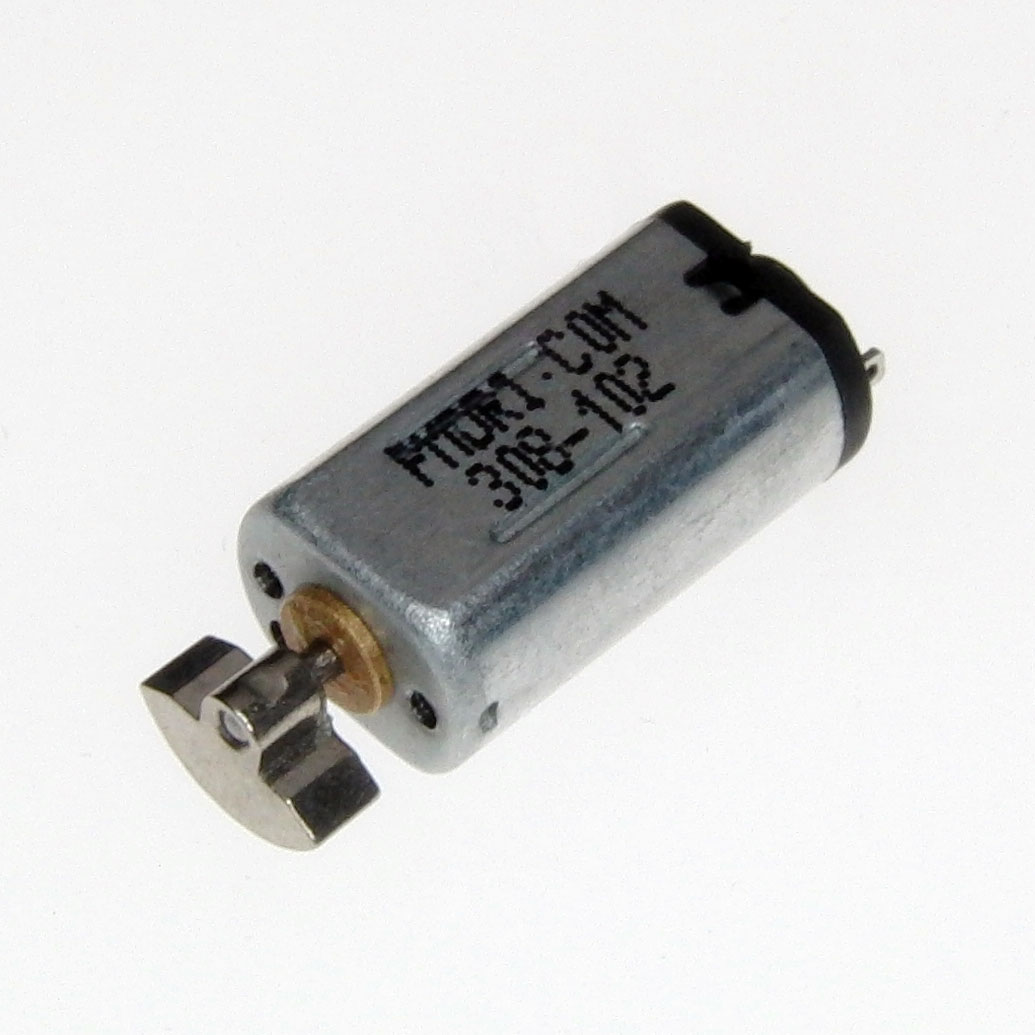

8mm Vibration Motor - 15mm Type

308-102 - iso
308-102 - side
308-102 - front
308-102 - backqtr
308-102 - back
308-102 - hand
8mm Vibration Motor - 15mm Type - Model No. 308-102

Development Samples

Sampling quantities for stocked models are available for ordering directly from us online.

Engineering & Manufacturing

Please contact one of our Sales Engineers for a quotation for production and consultation for customisation and integration services.

Order

Low Volume Pricing (GBP)

Qty Break Unit Price
1+ £6.68
10+ £6.56
50+ £6.06
100+ £5.55
500+ £3.50
Immediate Stock Available: 0
Minimum Order Quantity:
Normal lead-time within 11 weeks
 5,000
Quantity:
Need more than we have immediately available?
Enter the quantity to request a quote.

Key Features

Body Diameter 8 mm [+/- 0.2]
Body Length 14.5 mm [+/- 0.2]
Ecc. Weight Radius 3.5 mm [+/- 0.2]
Ecc. Weight Length 2.3 mm [+/- 0.2]
Shaft Orientation Inline
Rated Operating Voltage 4.5 V
Rated Vibration Speed 19,000 rpm [+/- 3,800]
Typical Rated Operating Current 145 mA
Typical Norm. Amplitude 5.5 G

Dimensions

Performance
