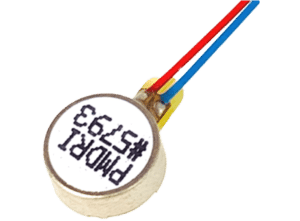

C08-005 – 8mm Coin LRA
Linear Resonant Actuator - Y-axis
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.
Samples for purchase
This part is available for immediate purchase, subject to stocks indicated, and priced by the volume discounts shown below.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 9 | — | US$ 5.15 |
| 10 - 24 | 5.44 % | US$ 4.87 |
| 25 - 99 | 13.01 % | US$ 4.48 |
| 100+ | 21.75 % | US$ 4.03 |
US$ 5.15
Current stock holding: 2611 pcs in stock

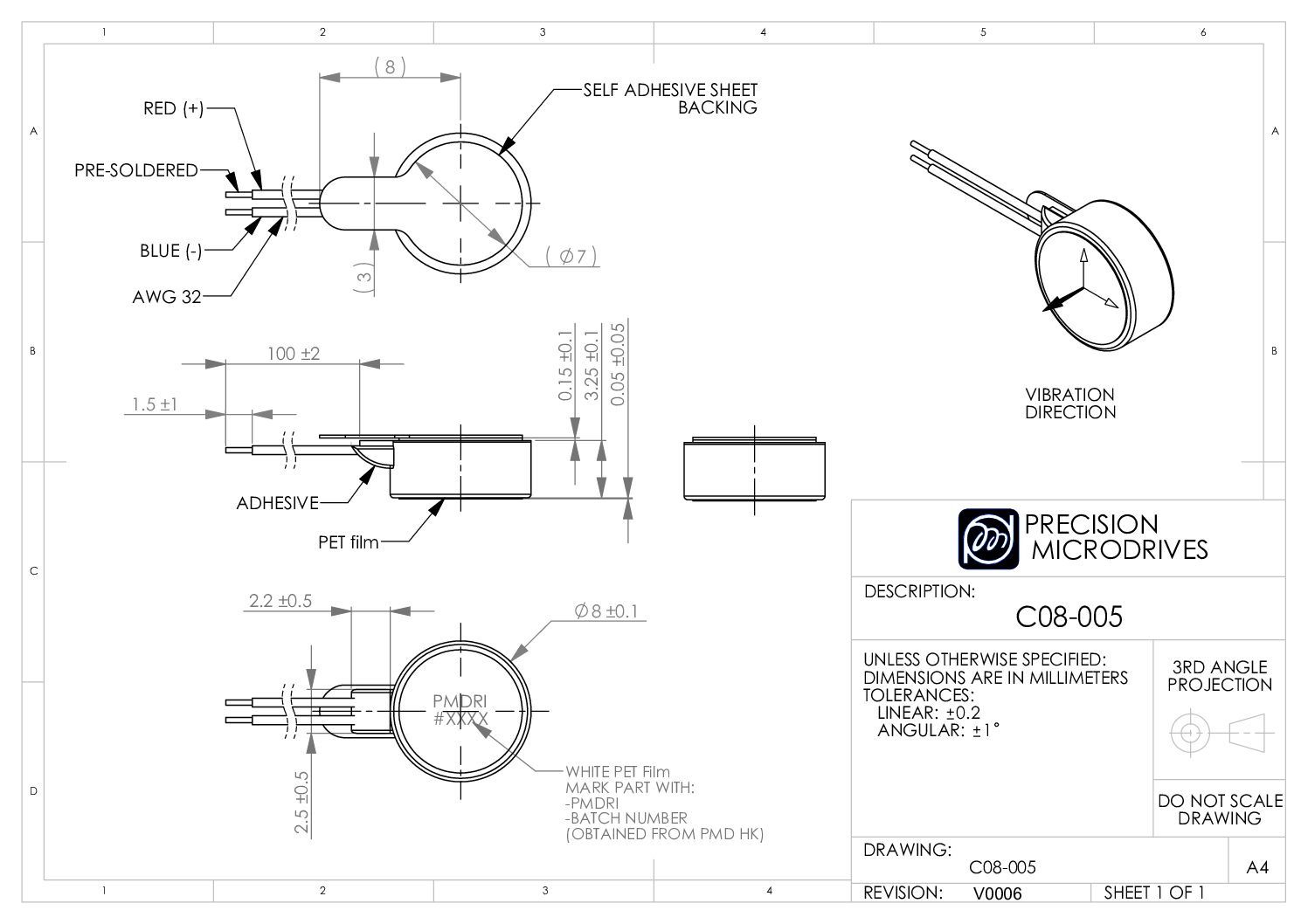

Drawing
Key Features
| Model No. | C08-005 | ||
| LRA Type | Coin LRA (Y-axis) | ||
| Diameter | mm | 8 | |
| Height | mm | 3.3 | |
| Rated Voltage | V | 1.8 | |
| Resonant Frequency | Hz | 235 | |
| Typical Current | mA | 75 | |
| Typical Amplitude | G | 1.28 |
Typical performance characteristics
| Typical operating current | mA | 75 | |
| Typical normalised amplitude | G | 1.02 | |
| Typical start voltage | V | 0.17 | |
| Typical vibration efficiency | G/W | 10.7 | |
| Typical terminal resistance | Ω | 21 | |
| Typical terminal inductance | mH | 113 |
Operational specifications
| Guaranteed start voltage | V | 0.5 | |
| Max rated current | mA | 102 | |
| Max operating voltage | V | 1.85 | |
| Rated inertial test load | g | 100 | |
| Min vibration amplitude | G | 0.61 |
Environmental characteristics
| Max operating temp | °C | 70 | |
| Min operating temp | °C | -25 | |
| Max storage & transportation temp | °C | 85 | |
| Min storage & transportation temp | °C | -40 |
Leads and connectors
| Lead length | mm | 100 | |
| Lead strip length | mm | 1.5 | |
| Lead wire gauge | AWG | 32 |
Typical haptic characteristics
| Typical lag time | ms | 12 | |
| Typical rise time | ms | 33 | |
| Typical stop time | ms | 123 |
Operating range (based on ambient 25°C)

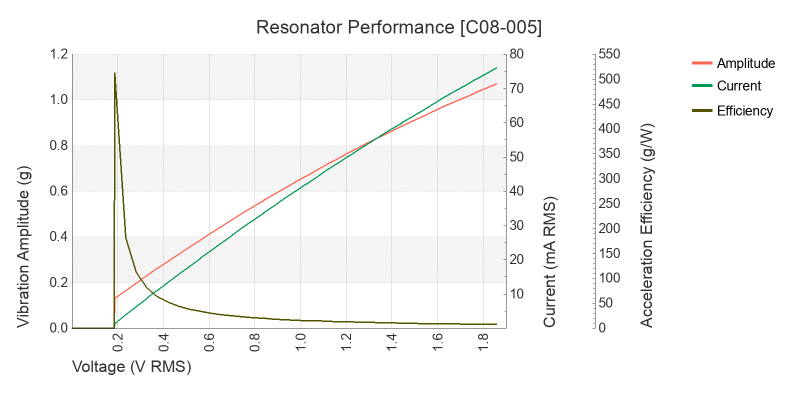

The chart below shows the LRA performance when attached to a 100g inertial mass, and powered with a pure sine wave drive signal. In application performance may be different, depending on the mass and driver used.
