762-C00 – 62mm Brushless Motor
Slotted (outrunner) Ø62 x 21mm / with gimball mount / hall sensors
Request a volume quotation
For higher (production) volumes, we offer highly competitive pricing. Please click on the ‘Request a quote’ button, and complete our volume quotation form. We will respond within 1 business day.
Samples for purchase
This part is available for immediate purchase, subject to stocks indicated, and priced by the volume discounts shown below.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 4 | — | US$ 76.57 |
| 5 - 9 | 5.43 % | US$ 72.41 |
| 10 - 24 | 13.01 % | US$ 66.61 |
| 25+ | 21.74 % | US$ 59.92 |
US$ 76.57
Current stock holding: 8 pcs in stock

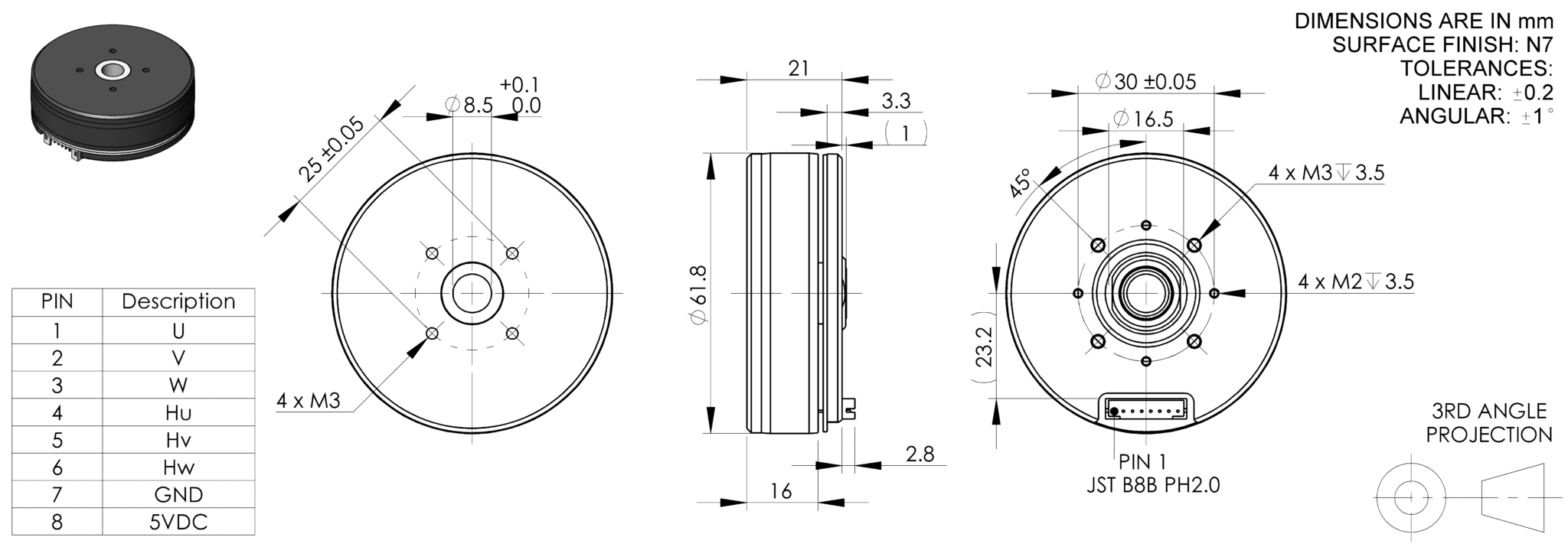

Drawing
Key Features
| Model No. | 762-C00 | ||
| Motor Type | Gimball [Slotted] | ||
| Diameter | mm | 62 | |
| Length | mm | 21 | |
| Voltage | V | 48 | |
| No-load Current | A | 0.19 | |
| No-load Speed | rpm | 2860 | |
| Stall Torque | mNm | 3820 | |
| Stall Current | A | 24.00 | |
| Nominal Torque | mNm | 310 | |
| Nominal Speed | rpm | 2630 | |
| Nominal Current | A | 2.14 | |
| Sensor Commutation | Sensor |
Performance characteristics
| Nominal voltage | V | 48 | |
| No load speed | rpm | 2 860 | |
| No load current | A | 0.19 | |
| Nominal speed | rpm | 2 630 | |
| Nominal torque | mNm | 310 | |
| Nominal current | A | 2.14 | |
| Stall torque | mNm | 3 820 | |
| Stall current | A | 24.00 | |
| Maximum efficiency | % | 83.00 |
Design and accessories
| Availability | Stocked design | ||
| Motor Type | Brushless | ||
| Commutation | Digital Hall | ||
| Shafts | Not fitted | ||
| Encoder | Not fitted | ||
| Gearbox | Not fitted | ||
| Connections | JST B8B PH2.0 | ||
| Cable | Not fitted | ||
| Housing Material | Aluminium alloy | ||
| Body diameter | mm | 62 | |
| Body length | mm | 21 | |
| Weight | g | 214.0 |
Motor body characteristics
| Thermal resistance housing-ambient | °C/W | 4.2 | |
| Thermal resistance winding-housing | °C/W | 0.9 | |
| Thermal resistance winding-housing | s | 47 | |
| Thermal time constant motor | s | 1041 | |
| Ambient temperature | min | °C | -30 |
| max | °C | +100 | |
| Max. permissable winding temperature | °C | +150 | |
| Max. permissable rotor speed | rpm | 3 000 | |
| Radial play | Preloaded | ||
| Max. axial load (dynamic) | kN | 1.7 | |
| Number of pole pairs | 7 | ||
| Number of winding phases | 3 |
Winding specific characteristics
| Terminal resistance | Ω | 2.00 | |
| Terminal inductance | mH | 3.37 | |
| Torque constant (Kt) | mNm/A | 159 | |
| Speed constant (Kv) | rpm/V | 60 | |
| Speed / torque gradient | rpm/mNm | 1.0 | |
| Mechanical time constant | ms | 2.5 | |
| Rotor inertia | g.cm² | 320 |

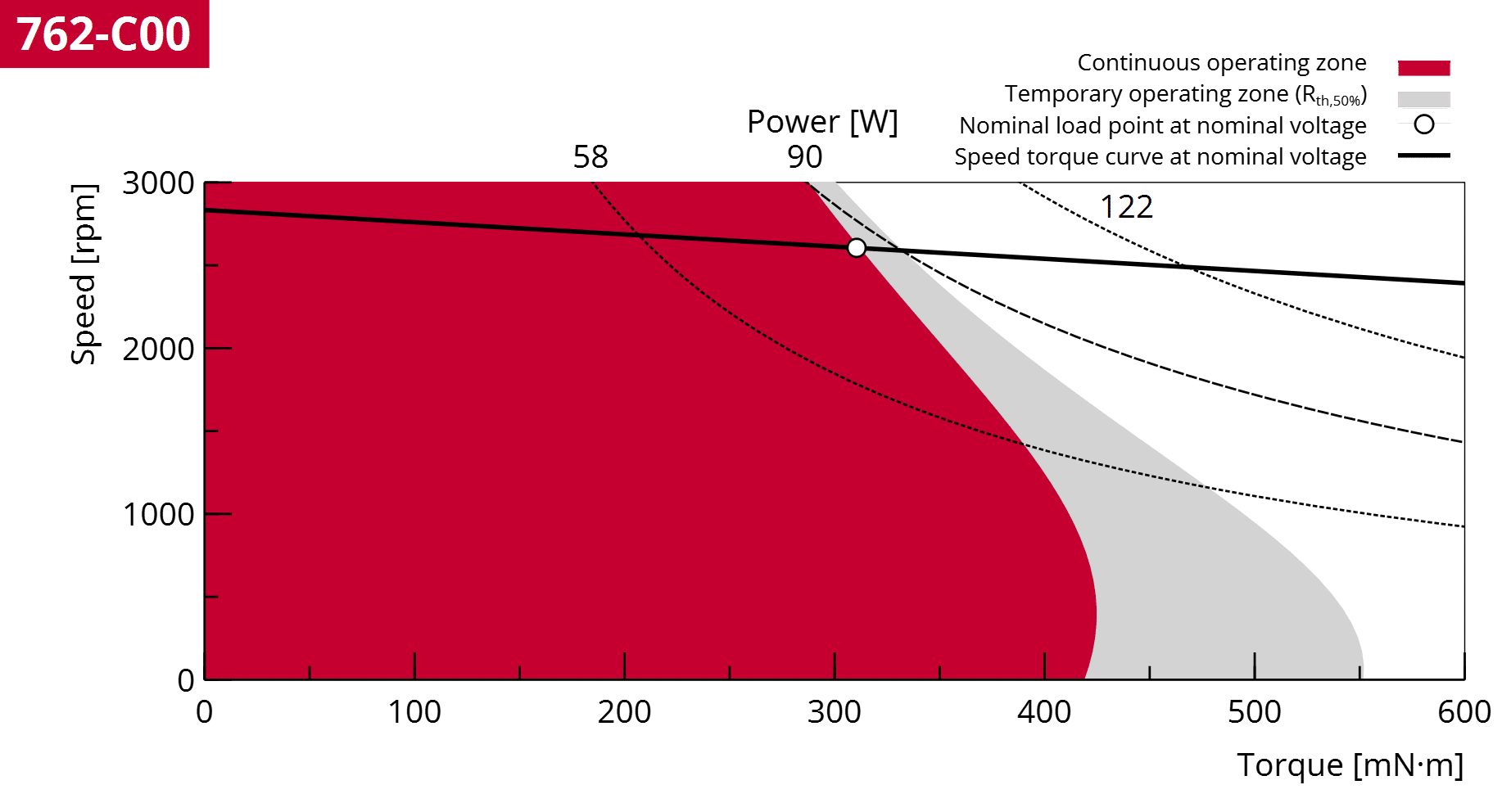

Operating range (based on on ambient 25°C)
