724-401

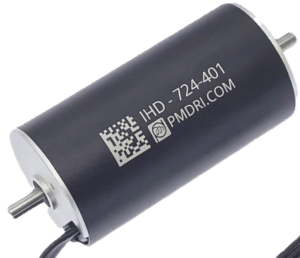

Ø24 x 46mm / with dual shafts / with sensors

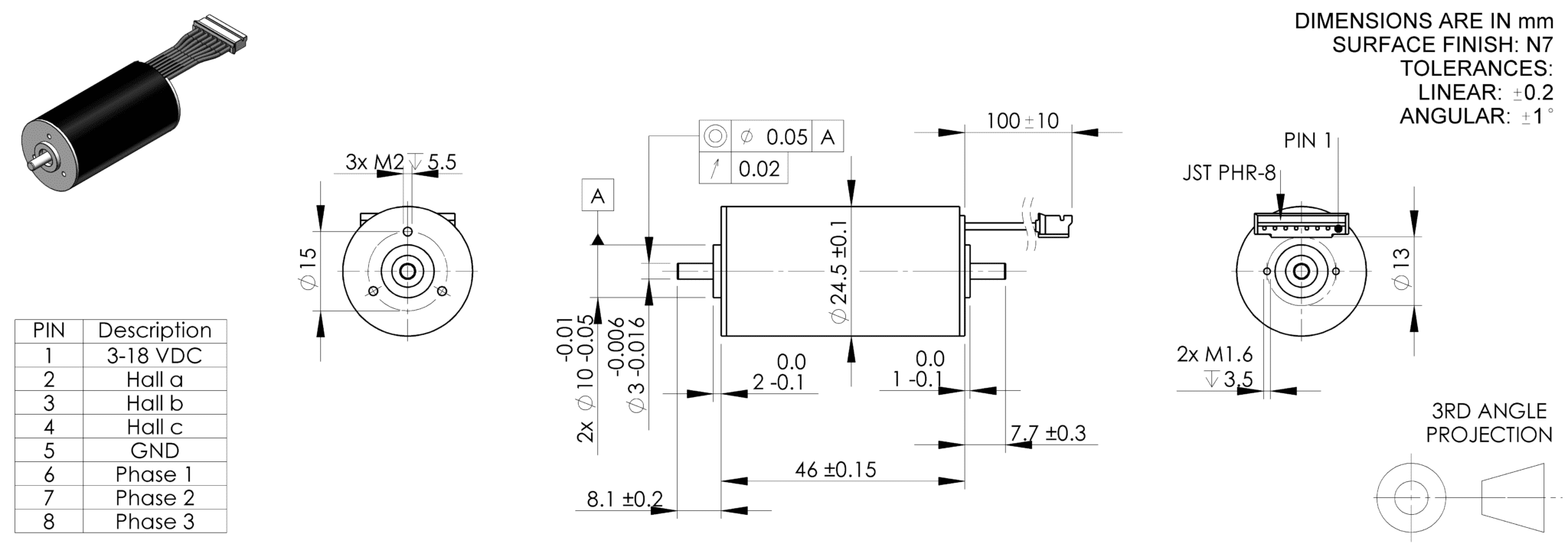

Diagram

Key Features

Model No.   mm 724-401
Diameter (mm)   mm 24
Length (mm)   mm 46
Voltage (V)   mm 12
No-load Current (A)   mm 0.21
No-load Speed (rpm)   mm 14120
Stall Torque (mNm)   mm 94.69
Stall Current (A)   mm 11.88
Nominal Torque (mNm)   mm 17.57
Nominal Speed (rpm)   mm 11530
Nominal Current (A)   mm 2.21
Sample Available   Yes

Performance characteristics

Nominal voltage V 12
No load speed rpm 14 120
No load current A 0.21
Nominal speed rpm 11 530
Nominal torque mNm 17.57
Nominal current A 2.21
Stall torque mNm 94.69
Stall current A 11.88
Maximum efficiency % 79.00

Design and accessories

Availability Stocked design
Motor Type Brushless
Commutation Digital hall
Shafts Dual
Encoder Not fitted
Gearbox Not fitted
Connections 8-pinned JST PHR-8
Cable 100mm x AWG26
Housing Material Aluminium alloy
Body diameter mm 24
Body length mm 46
Weight g 92.0

Motor body characteristics

Thermal resistance housing-ambient °C/W 11.6
Thermal resistance winding-housing °C/W 5.6
Thermal resistance winding-housing s 30
Thermal time constant motor s 557
Ambient temperature min °C -30
max °C +100
Max. permissable winding temperature °C +150
Max. permissable rotor speed rpm 20 000
Axial play at axial load < 0.8N mm 0.0
< 0.8N mm 0.3 max
Radial play Preloaded
Max. axial load (dynamic) N 3.5
Max. force for press fits (static) N 44.0
with shaft supported N 1 200
Max. radial loading (5mm from flange) N 15.0
Number of pole pairs 1
Number of winding phases 3

Winding specific characteristics

Terminal resistance Ω 1.01
Terminal inductance mH 0.07
Torque constant (Kt) mNm/A 7.97
Speed constant (Kv) rpm/V 1 198
Speed / torque gradient rpm/mNm 148
Mechanical time constant ms 3.6
Rotor inertia mNm² 0.420

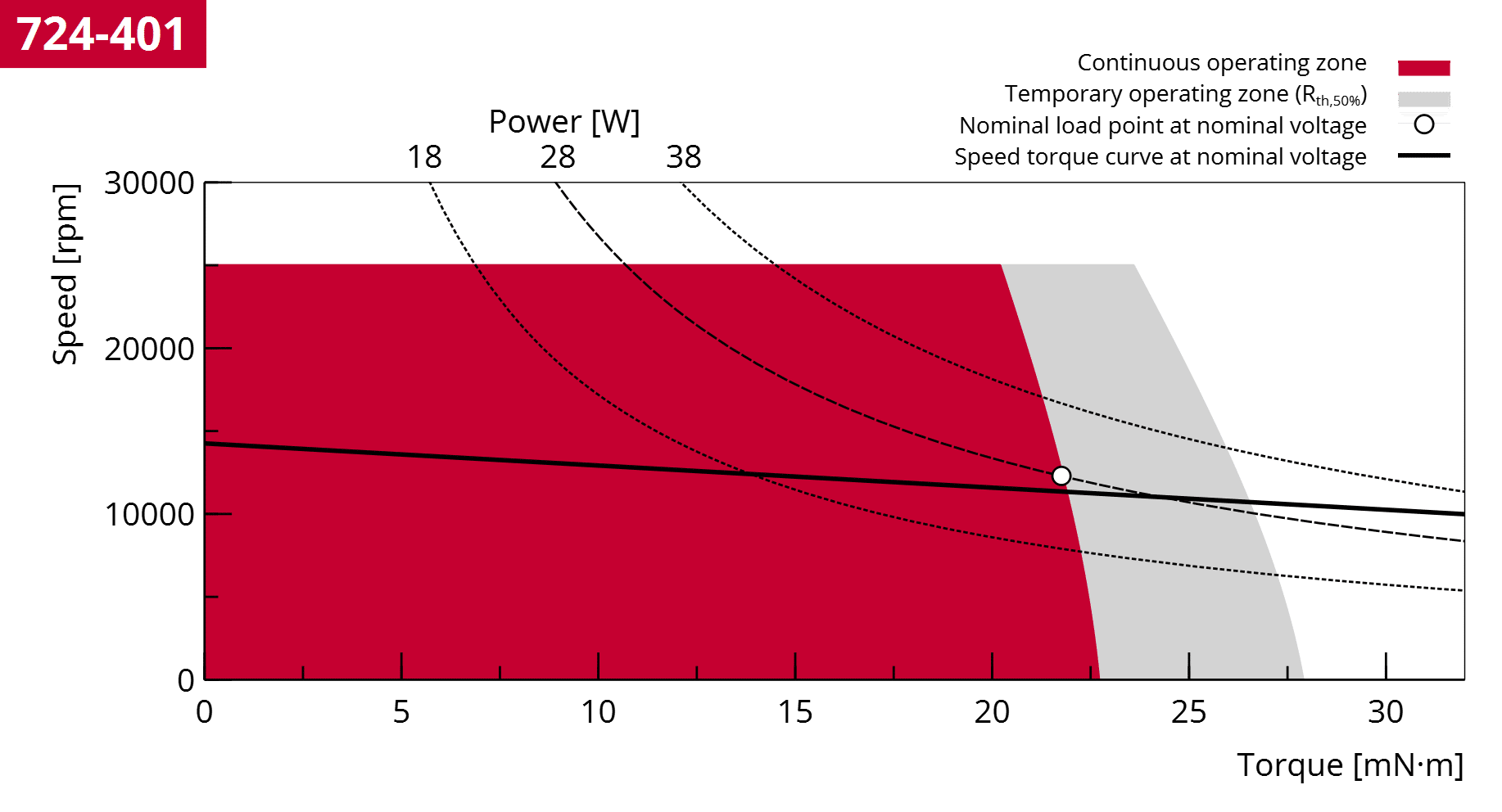

Operating range (based on on ambient 25°C)
